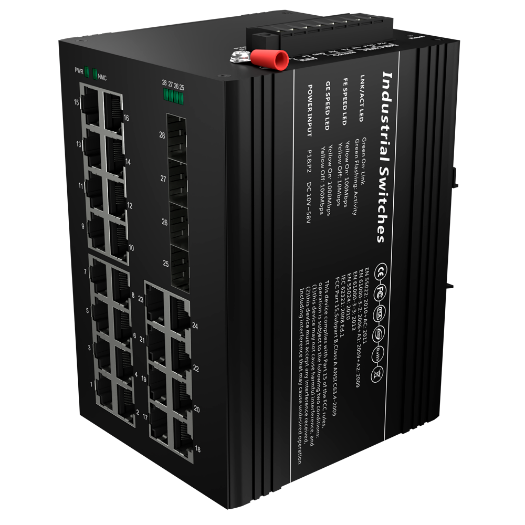

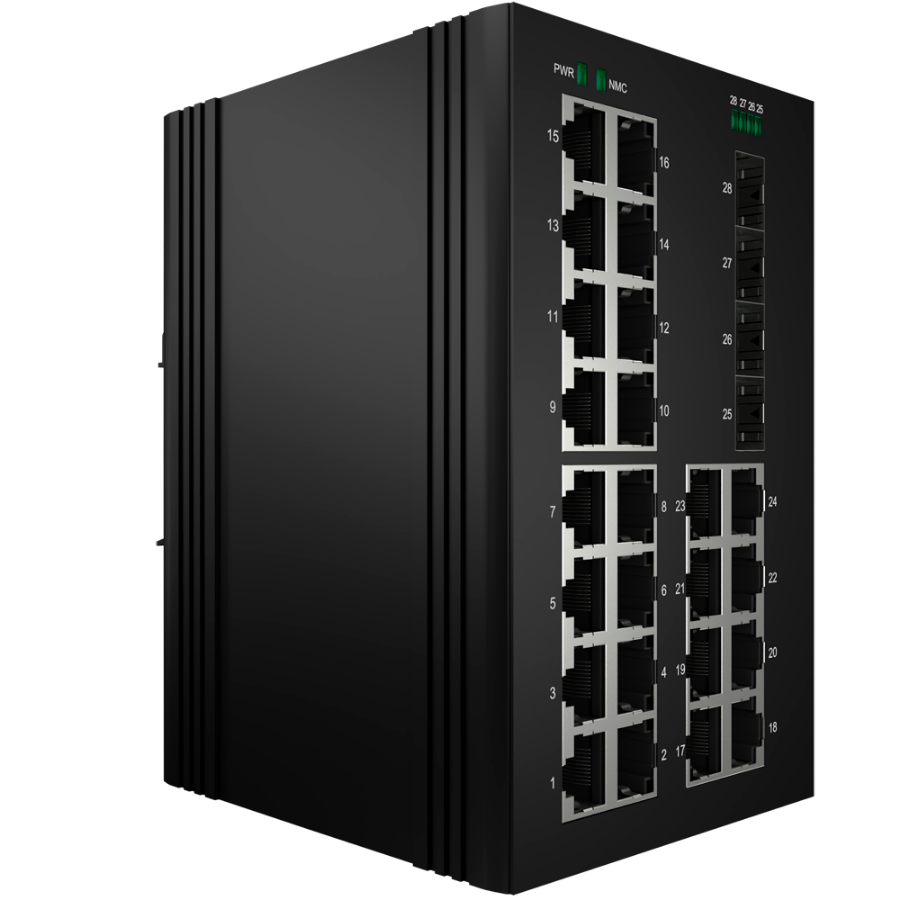

| Interface | 24 Ports RJ45 Gigabit + 4 SFP Gigabit Ports |
| PoE characteristics | Up to 90W ports 1-2 and 23-24 IEEE802.3bt Hi-PoEUp to 30W ports 3-22 IEEE802.3af/at PoE/PoE+Maximum 360W |
| Supported Topologies | Ring / Star / Bus / Tree |
| Physical Layer Protocols | MDX/MDIX/Flow Control |
| Network Protocols | VLAN/STP/RSTP/MST/ERPS/SNMP/IGMP Snooping/802.1x/Port Isolation/QinQ |
| Management Protocols | SNMP/CLI/Console/WebUI/SSH/Telnet/Rmon |
| Quality of service | Highlighting and priority mappingSupports SP and WRR algorithmsRate limitQoS-based policies |
| Link Aggregation | Up to 12 groups |
| Jumbo Frame | 10Kbyes |
| ACL | Supports 500 ACL of standard and extended type |
| Switching Capacity | 68Gbps |
| MAC Table | 16K |
| Packet forwarding rate | 50,59Mbps |
| Buffer | 12M |
| Installation | DIN rail |

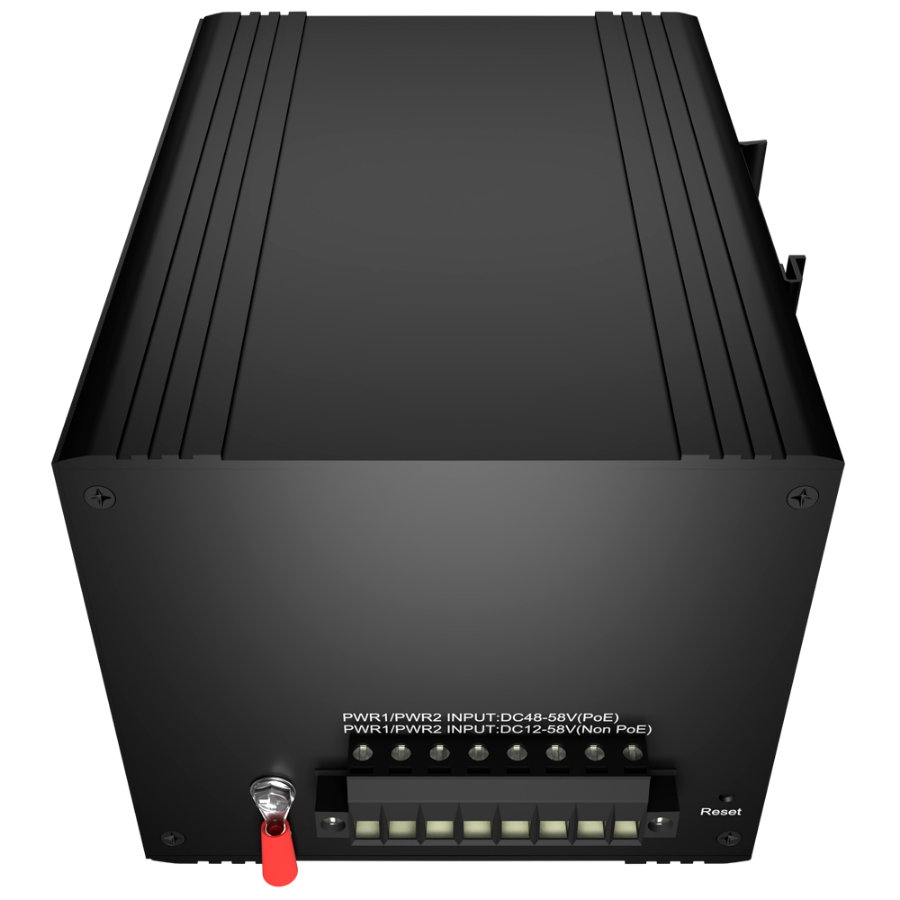

| Power | DC 48 V ~ 58 V- The equipment does not include power supply. The following references are recommended:- DC48V5A-DIN |
| Dimensions | 108 (D) x 104 (H) x 143 (W) mm |
| Weight | 1,3 Kg |
| Operating temperature | -40o C ~ 75o C |

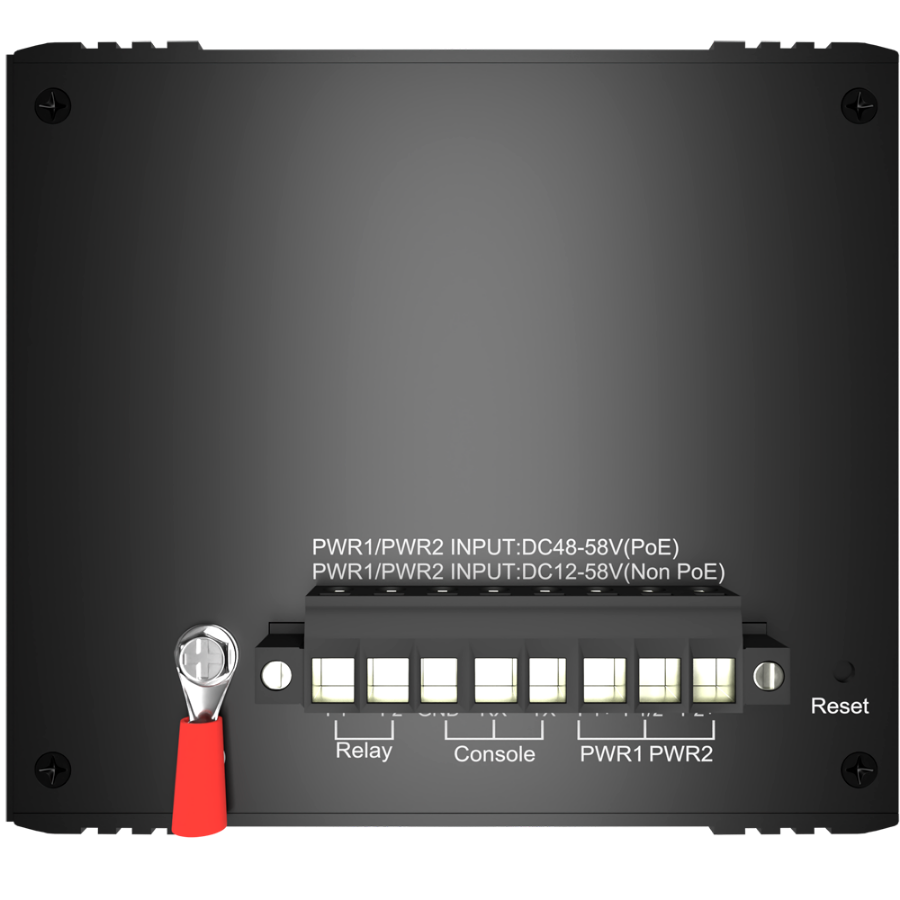

| Relay Output | Switch failure is reported via relay. The relay interface can be connected to a buzzer or other monitoring devices to achieve the physical layer shutdown alarm function. When the switch is off, RELAY1 |
