| Brand | X-Security |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Colour | Black |
| Image sensor | 1/2.9” Progressive CMOS |
| Main Stream rate | 2688 × 1520@ (1–20 fps)/2560 × 1440@(1–25/30 fps) |
| Extra Stream rate | 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) |
| Compression | H.264H; H.265; H.264; H.264B; MJPEG (substring compatible only) |
| Lens | 2.8 mm (H: 95°; V: 52°; D: 114°) |
| Minimum illumination | 0,008 lux@F1,6 (color, 30 IRE) 0,0008 lux@F1,6 (black and white, 30 IRE) 0 lux (illuminator on) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Work together with Smart NVR to refine intelligent search, event extraction and merging with event videos |

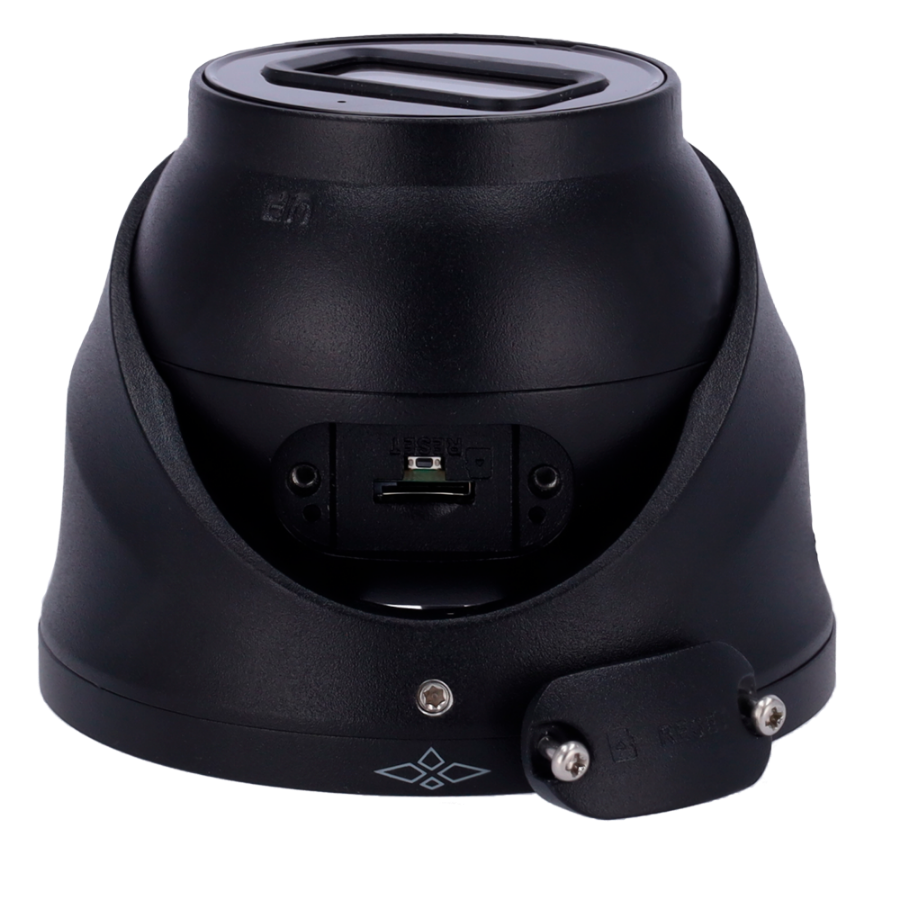

| Storage | MicroSD slot up to 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Material | Inner core: MetalliclicCover: MetalDecoration ring: Plastic |
| Interoperability | ONVIF (SProfile /T Profile ); .CGI; P2P; Milestone |

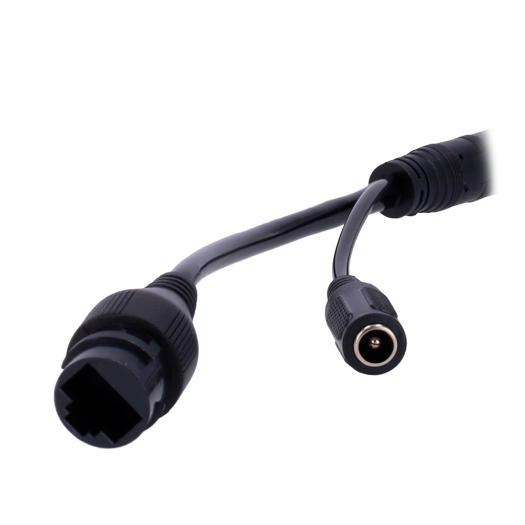

| Power | DC 12 V / 3,3W, PoE IEEE802.3af |
| Temp. operation | -30o C ~ +60o C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 99.1 mm (D) x 121.9 (O) mm |
| Weight | 480 g |
