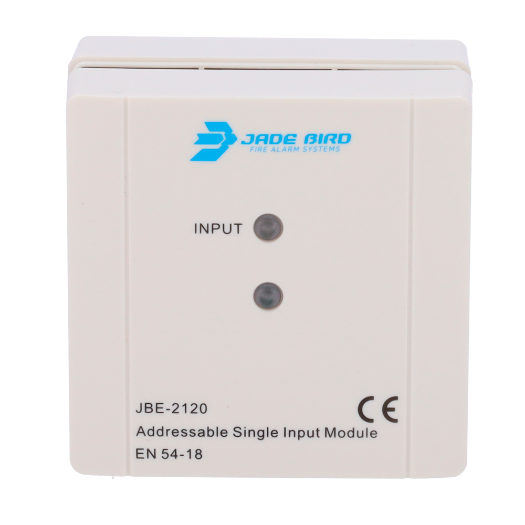

| Brand | Jade Bird |
| Type | Analog module 1 supervised input |
| Operating voltage | DC 16 - 30 V |
| Connection | JBE communication bus 2-hilos, without polarity |
| Wired | Twisted pair without braid 0.5 - 2.5 mm2 |
| Consumption in idle mode | ?0.25 mA @24 V |
| Active consumption | ?1 mA @24 V |
| EOL resistance | 10 k? |
| Temp. of work | 0? ~ +40? |
| Temp. storage | -20? ~ +60? |
| ENVIRONMENT | ? 95% HR (40±2?) (no condensation or icing) |
| Address | Addressing tool JBE-AT1 |
| Address range | 1-200 |
| Led indicator Red | Rest: "Input" blinks with loop pollingMalfunction: "Input" offActivation: "Input" fixed on |
| Dimensions | 85×85x41 mm (length x width x height) |
| Weight | 0.1 kg (including base) |
| IP Rating | IP40 |
| Certified | EN 54-18:2005EN 54-18:2005/AC:2007 |
