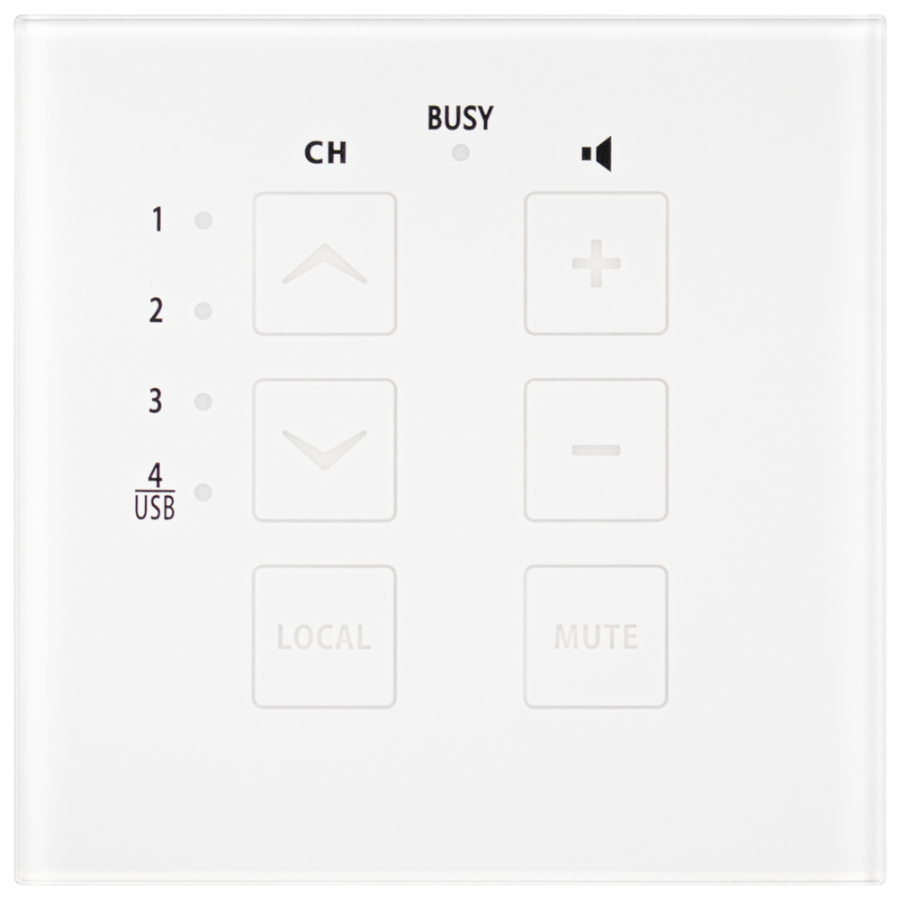

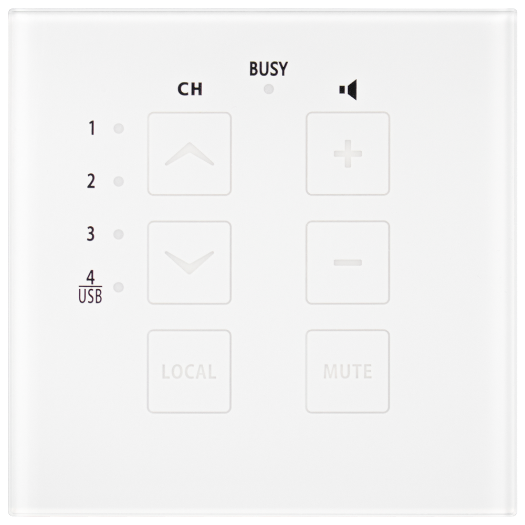

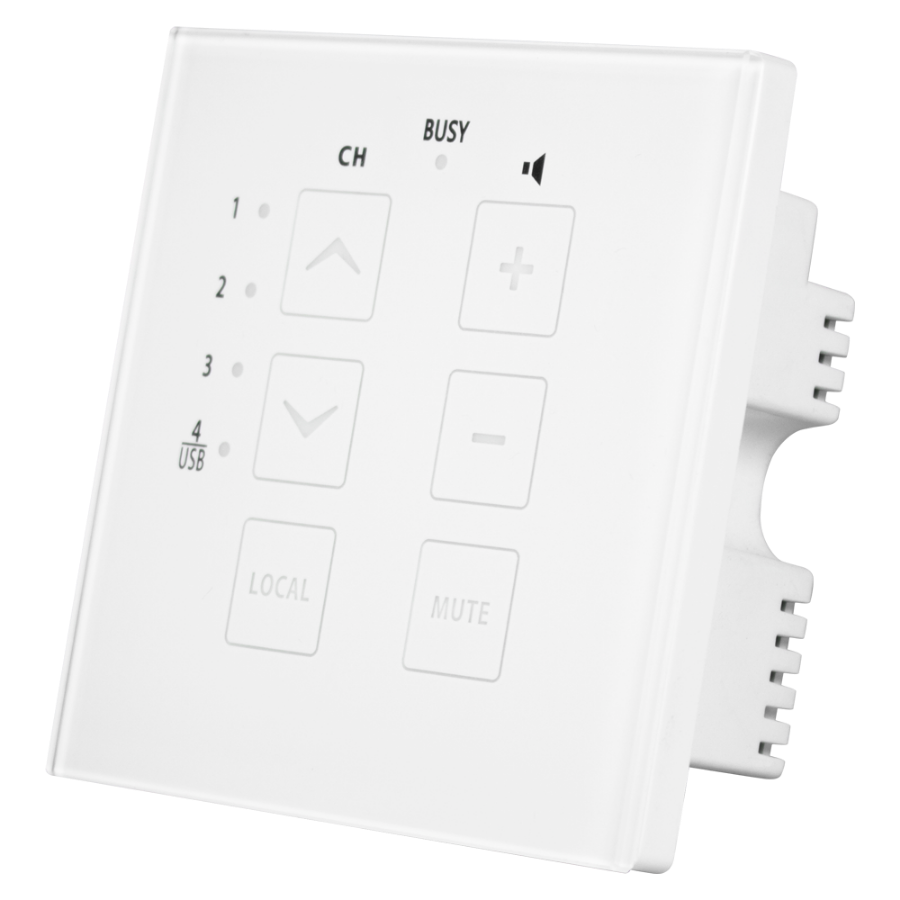

| Model | MAG505S |
| Button functions | - Volume adjustment- Music selection- Mute / un-mute- Sending audio locally to the public address system |
| Installation | Wall |
| Power | 24VDC |
| Maximum connection distance | 500m |

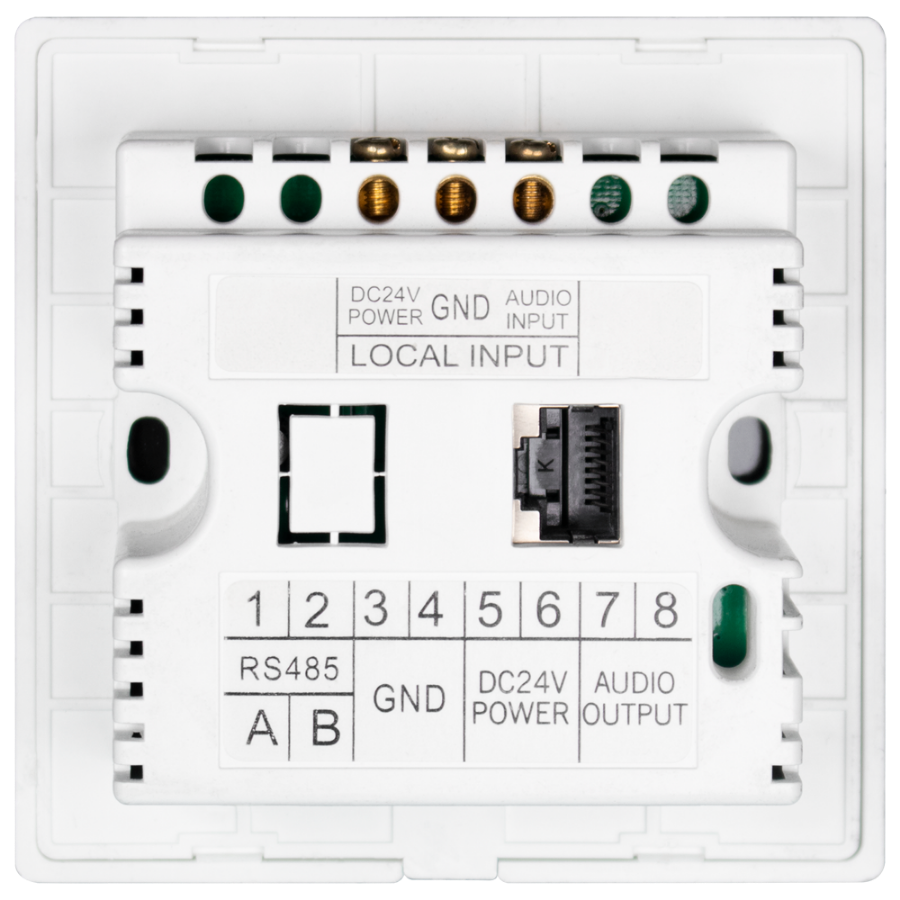

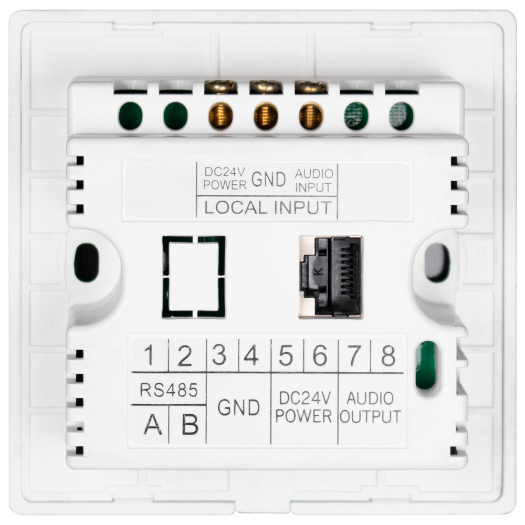

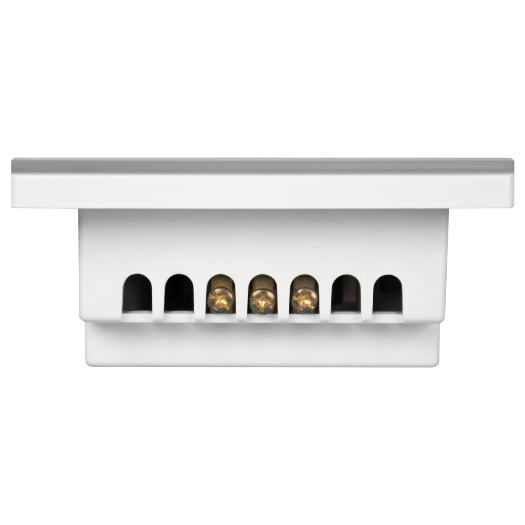

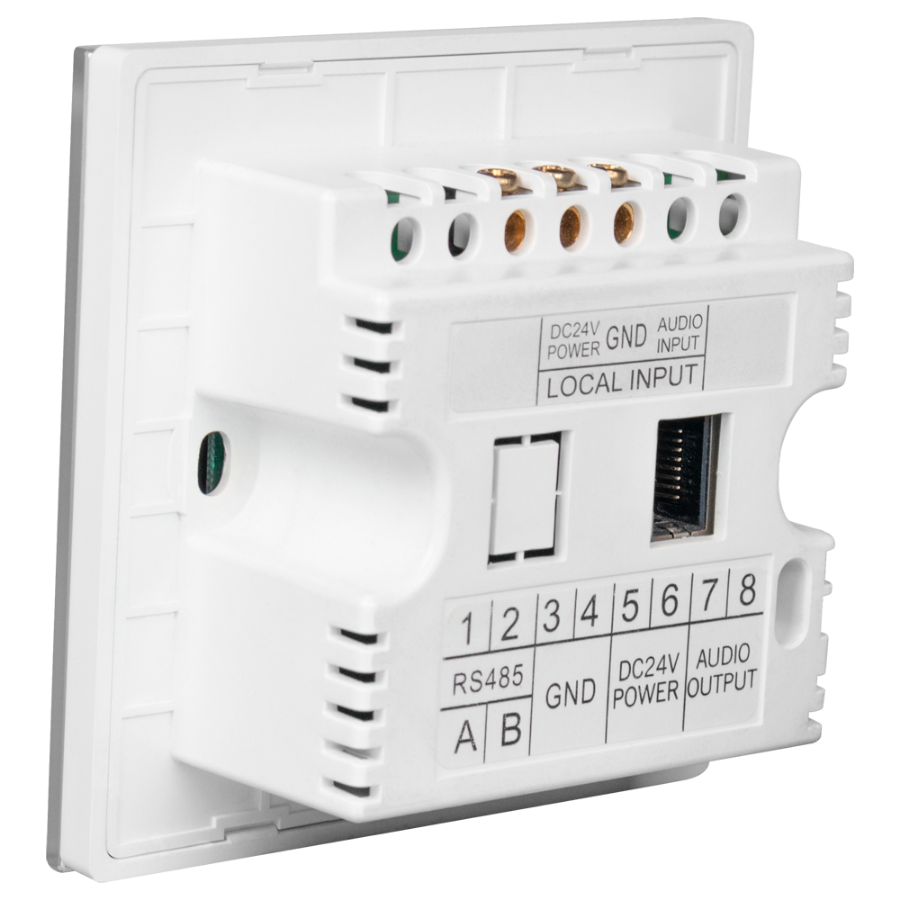

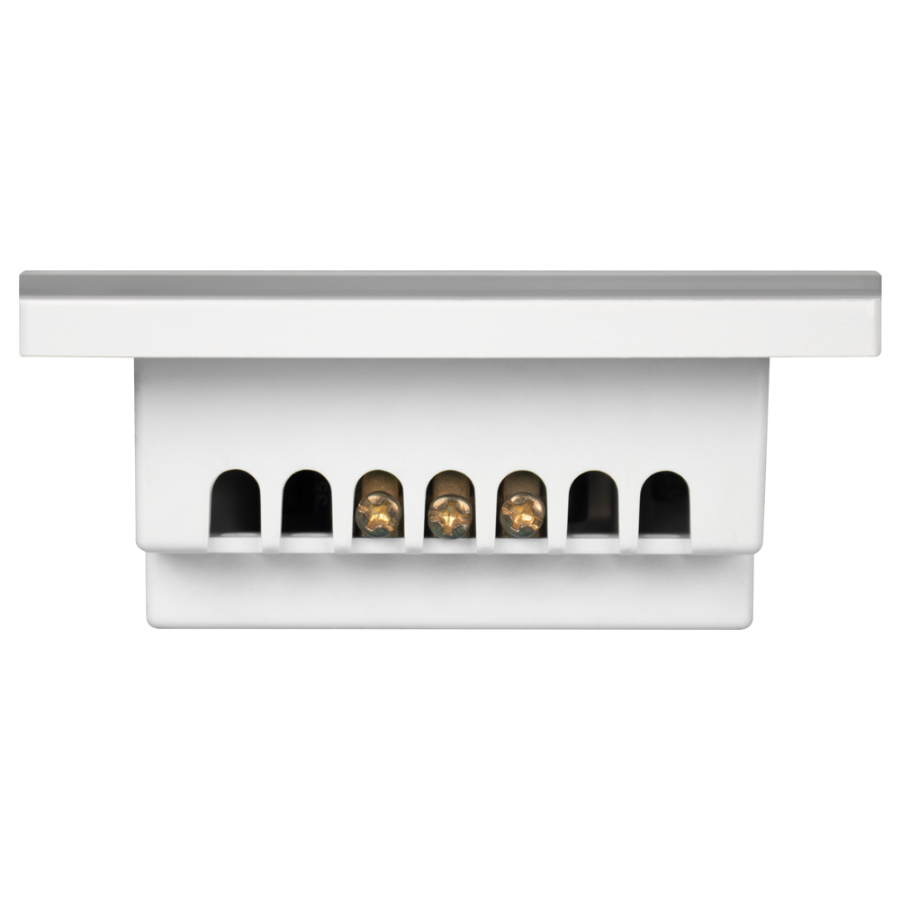

| Ports | 1 x RJ452 x Euroblock (Power supply, local audio input) |
| LED indicators | - Selected channel- Indicator that the system is busy |
| Buttons | - Channel change- Volume up/down- Local source selection- Mute / un-mute |
| Dimensions | 86mm (W) x 86mm (H) x 38mm (D) |
| Weight | 0.128kg |
A wall control panel for amplifiers is a compact and unobtrusive device that mounts on the wall and allows you to control basic functions of a sound system, such as volume, audio source or playback zone, without the need to access the amplifier directly. It is designed to offer a simple and accessible user experience, ideal for environments such as classrooms, meeting rooms, retail or public spaces.
This type of panel facilitates the daily operation of the audio system, allowing anyone to adjust the settings without technical knowledge. Depending on the model, they may also include additional functions such as system on/off, input selection or even Bluetooth connection. In short, it is a practical solution to optimize sound control in professional installations in a convenient and centralized way.
