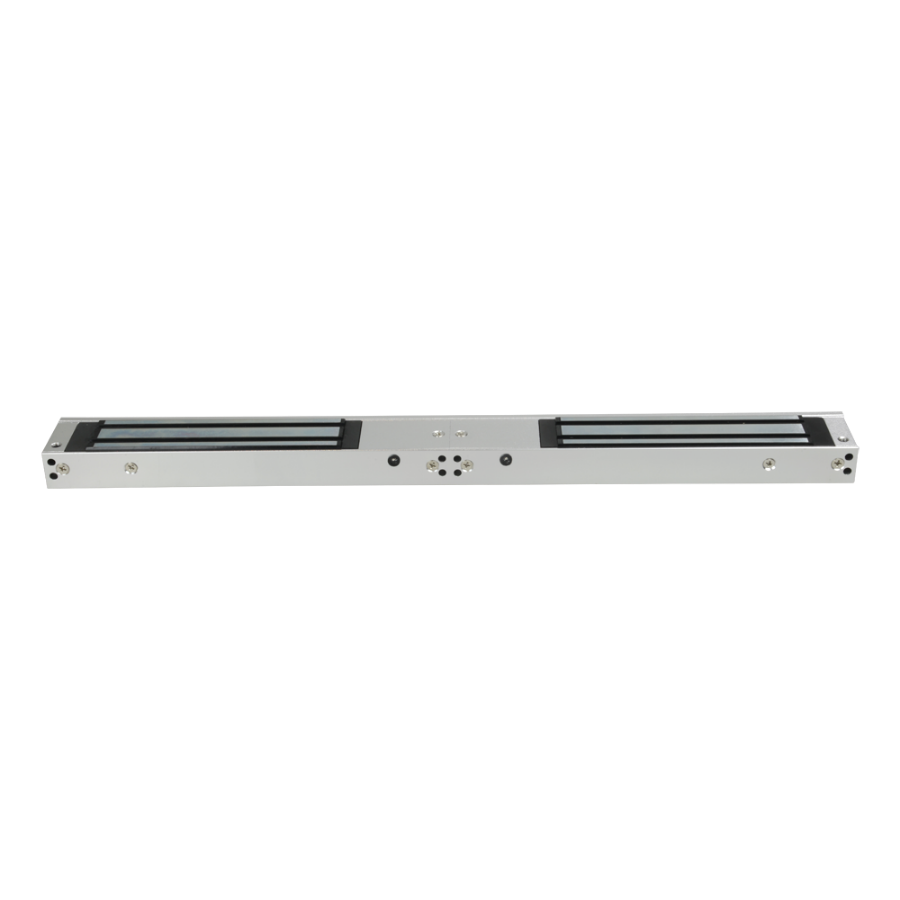

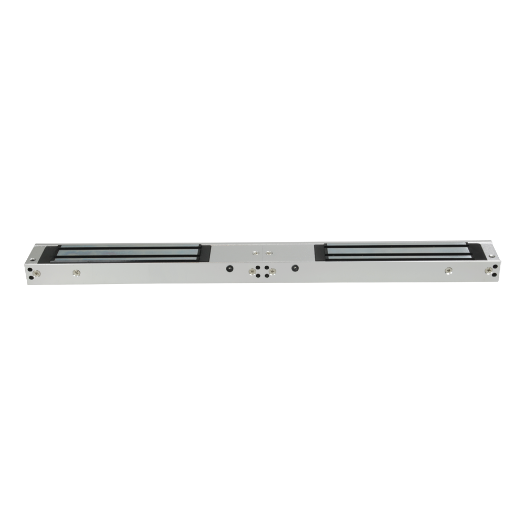

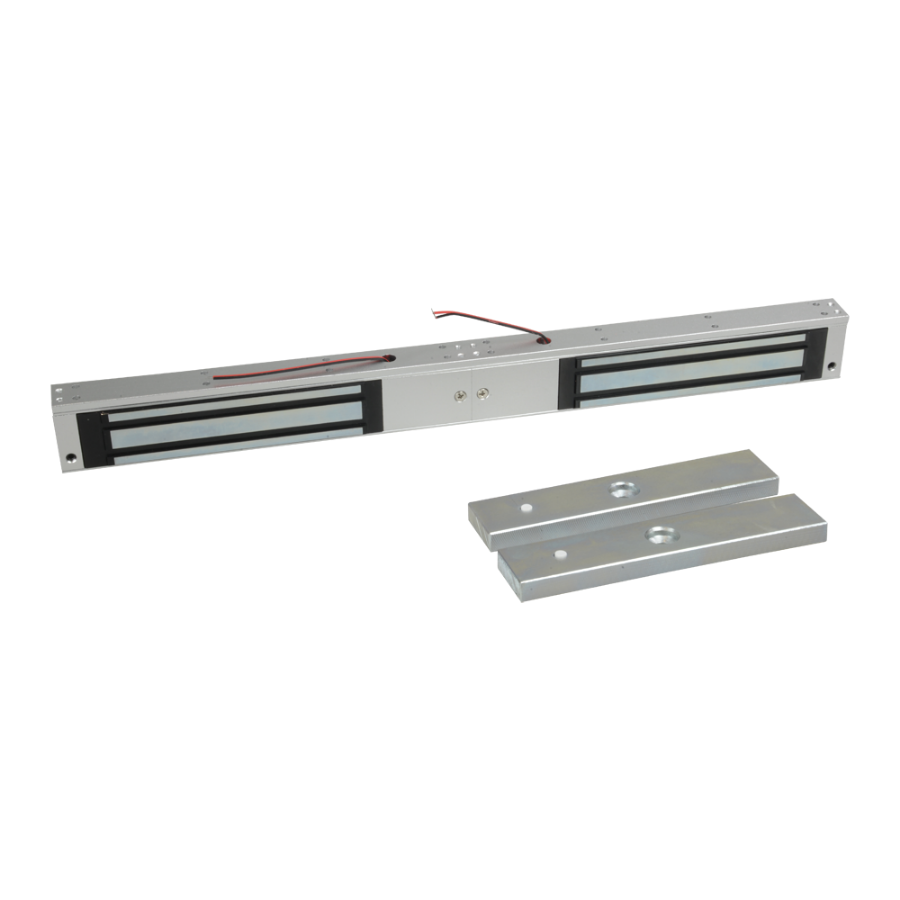

| Model | YF-280BST-LED |
| Door type | Double: 2 folding blades |
| Opening mode | Fail Safe / Inverted (NC) |
| Retention force | 280 kg (per suction cup) |
| Signaling | Door lock status LEDNO/NC/COM contact output for door block status |
| Blocking time | Adjustable delay |
| Power | DC 12 V / 520 mA máx. o DC 24 V / 260 mA max. |
| Mounting | Surface |
| Protection | Interior |
| Material | Aluminium |
| Temp. operating | -10 oC ~ +55 oC |

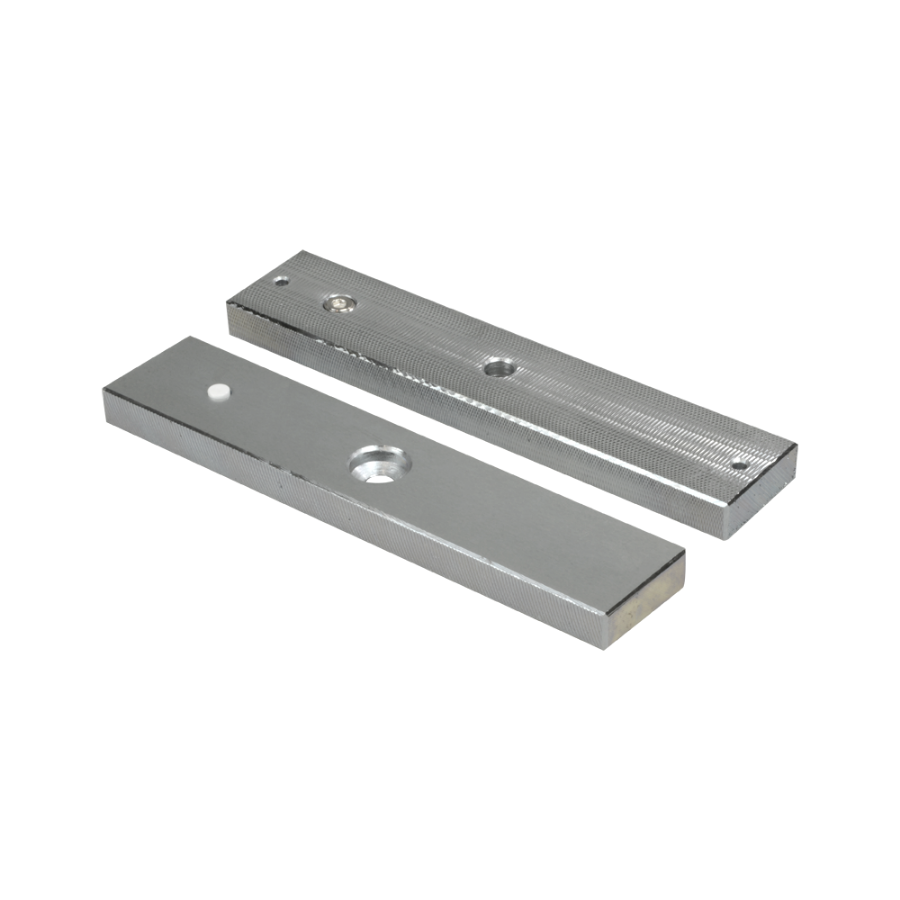

| Dimensions | Maglock: 500 (W) x 49 (H) x 25 (D) mmCounterplate: 180 (W) x 38 (H) x 13 (D) mm |
| Range | EasyAccess |
