RD-ECPC-3P-40A

Power distribution unit
NEX compatible
Electrical protections included
Three-phase up to 80A
Wall or busbar mounting
Silver color

Brand: RAEDIAN

Šifra: RD-ECPC-3P-40A

364,50 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Brand	Raedian
Device type	Power distribution unit
Electrical mesh	3P + N + PE
Power	Single phase 230VThree-phase 230/400V
Grounding	TN/TT/IT
Main circuit	80A
Load supply	Up to 32A
Mounting	Wall, busbar
Connectivity	2x LAN
Operating temperature	-30 ~ 50oC
Environmental protection	IP65, IK10
Operating altitude	2000m
Compatibility	NEX Charger
Certification	EN 61439-3
Colour	Silver
Dimensions	210 (H) x 297 (W) x 120 (D) mm
Weight	3.3 Kg
Protections included	IEC/EN 61009-1, IEC/EN 62423 IEC/EN [%VAR%]Type B, AC 30 mA, DC 6 mA, frequency up to 1 kHzCurve C

Opis

Raedian's RD-ECPC-3P-40A distribution unit is the ideal complement for installations where NEX semi-public chargers are used. Each charger would be connected to this unit, which includes all the electrical protections established by the regulations, so that it can be installed quickly, saving cable and time. It is also the best solution to be able to communicate, via LAN, the different chargers of the installation.

Raedian
Power distribution unit
Three-phase
Compatible with NEX model

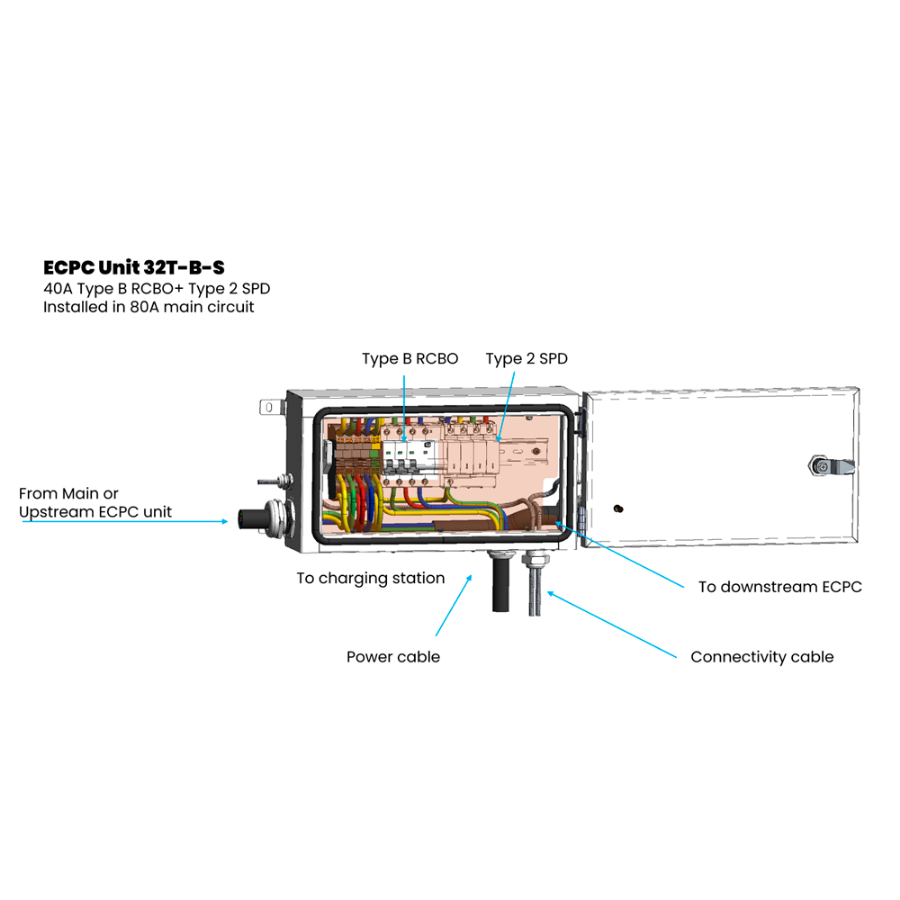

With electrical protections pre-installed on DIN rail, according to the installation standards for recharging points
RCBO type B integrated
Surge protection type II (SPD) included
Optimal for decentralized installations and for cascade communication (Daisy Chain) via LAN cable
Supports 80A per phase
Silver color
Wall or busbar mounting
