| Brand | X-Security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |

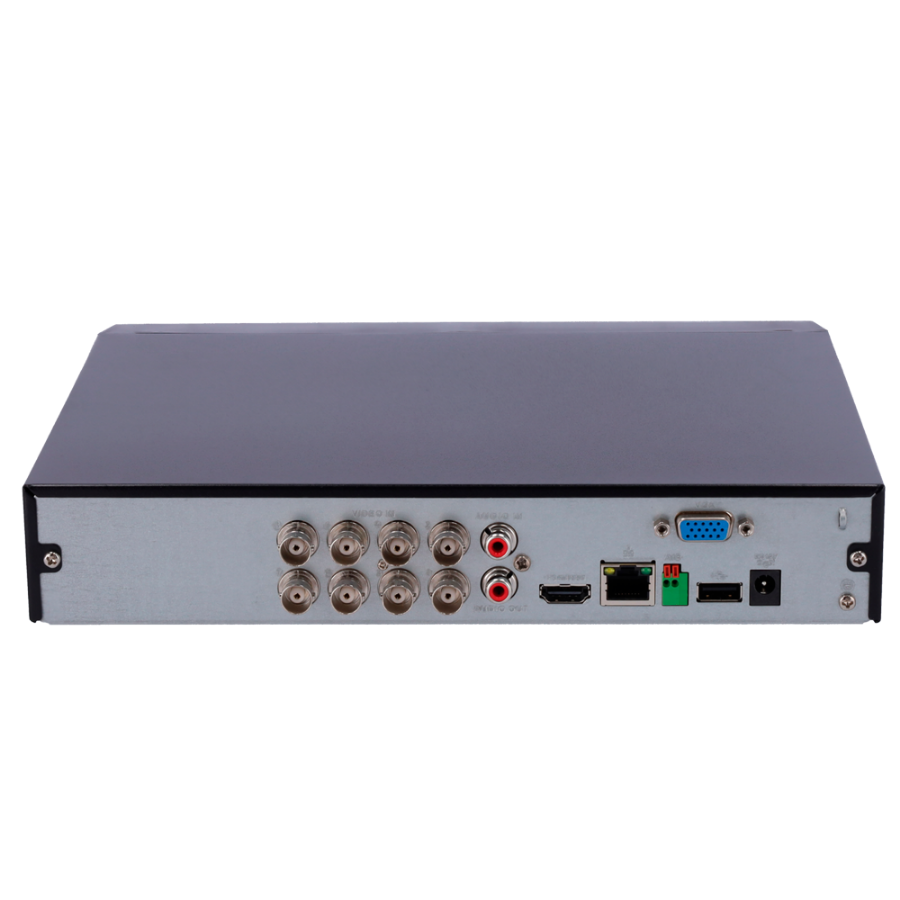

| Video inputs | 8 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 12 IP Channels (6Mpx), replacing all the BNC channels |
| Video outputs | 1 HDMI 1080p, 1 VGA |
| Video / audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | 1920x1080, 1280x1024, 1280x720 |
| Total bandwidth | 64 Mbps |
| Recording resolution | 5 M-N, 4 M-N,1080p, 1080N, 720p, 960H, D1, CIF |
| Main Stream coding | 5M-N(10 FPS); 4M-N/1080p(15 FPS); 1080N / 720p / 960H / D1 / CIF (25/30 FPS) |
| Extra Stream coding | D1 / CIF (1~15 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Alarms IN/OUT | Does not have |
| Video analysis | IVS: Tripwire | Area intrusion | Abandoned object | Face detection |
| Facial Recognition | 1 live analogue face comparison channel |
| Intelligent motion detection | 1 channel capable of classifying targets between humans and vehicles |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB / Network |
| Internal memory | 1 SATA HDD 3.5" of up to 10 TB (not included) |
| Communication | RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power | DC 12V / 2A |
| Dimensions / weight | 47.6 (H) x 260 (W) x 237.5 (D) mm / 1 Kg |
