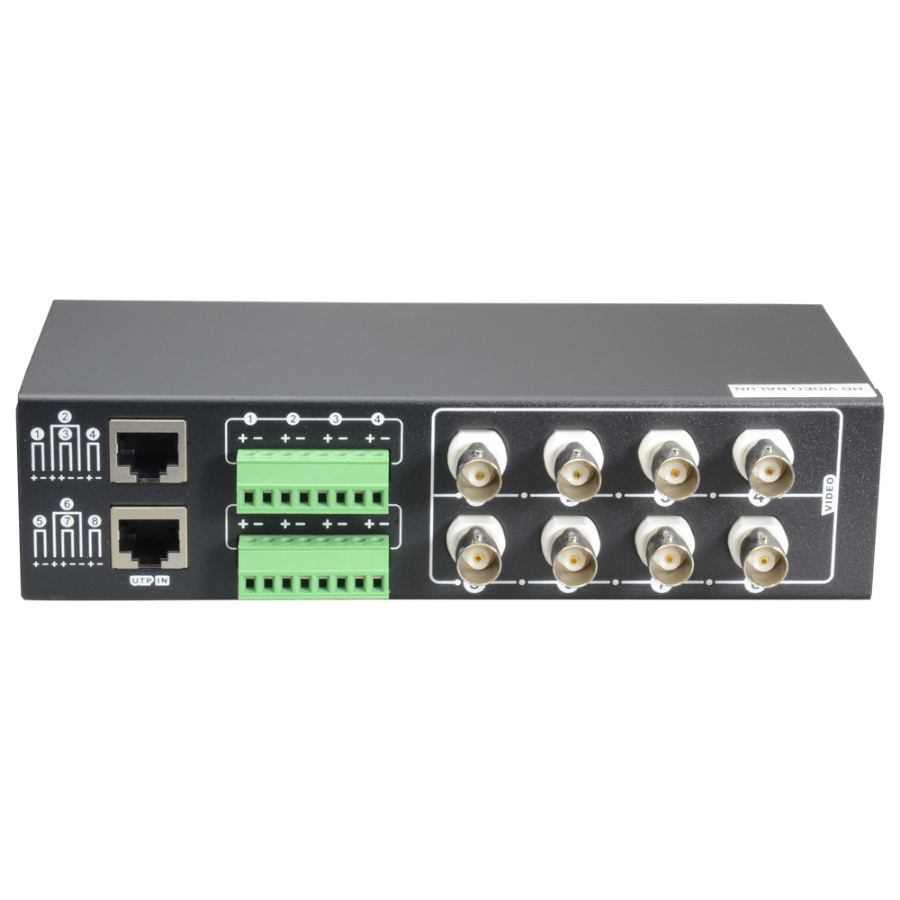

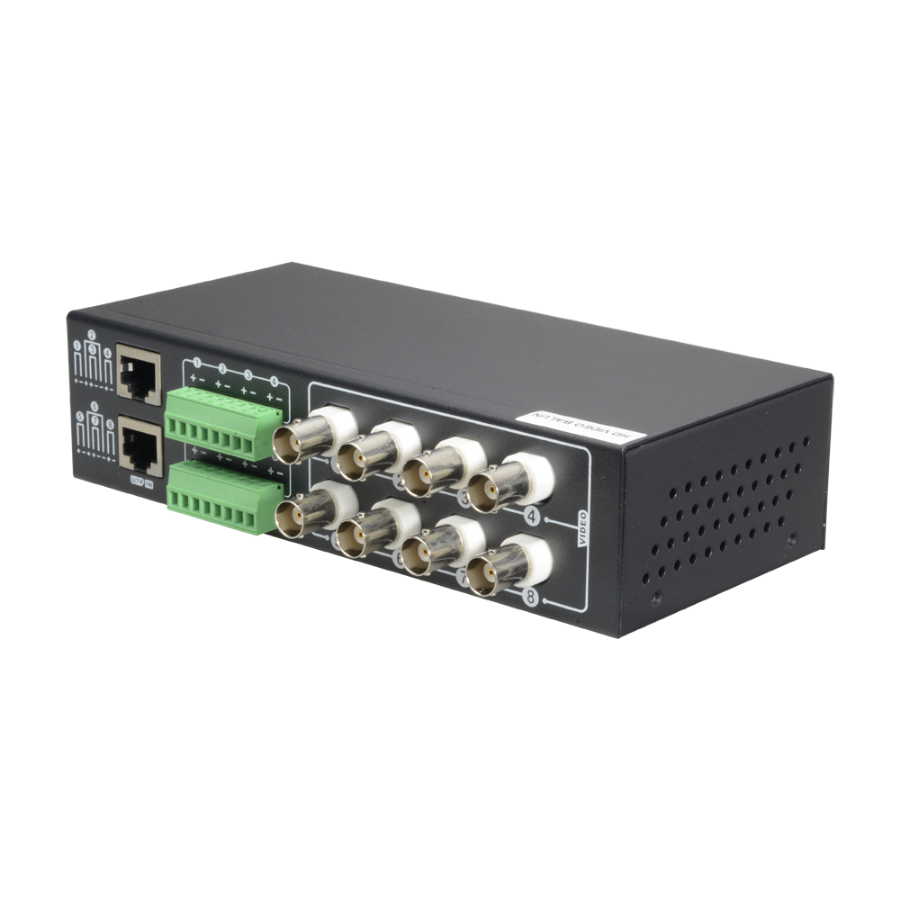

| Input Tx / Output Rx | 8 female BNC connectors for video |
| Output Tx / Input Rx | 2 connectors RJ45 or 8 clamp connectors for UTP cable CAT5 |
| Bandwidth | DC up to 42 MHz |
| Video format | NTSC, PAL, SECAM |
| Impedance | BNC 75 ?, UTP 100 ? |
| Distance | HDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx) and AHD 320/250/200 m (720p/1080p/5Mpx) |
| Power | Passive (not required) |
| Temp. Functioning | -20 oC ~ 70o C |
| Dimensions | 45 (H) x 180 (W) x 85 (D) mm |
| Weight | 580 g |
