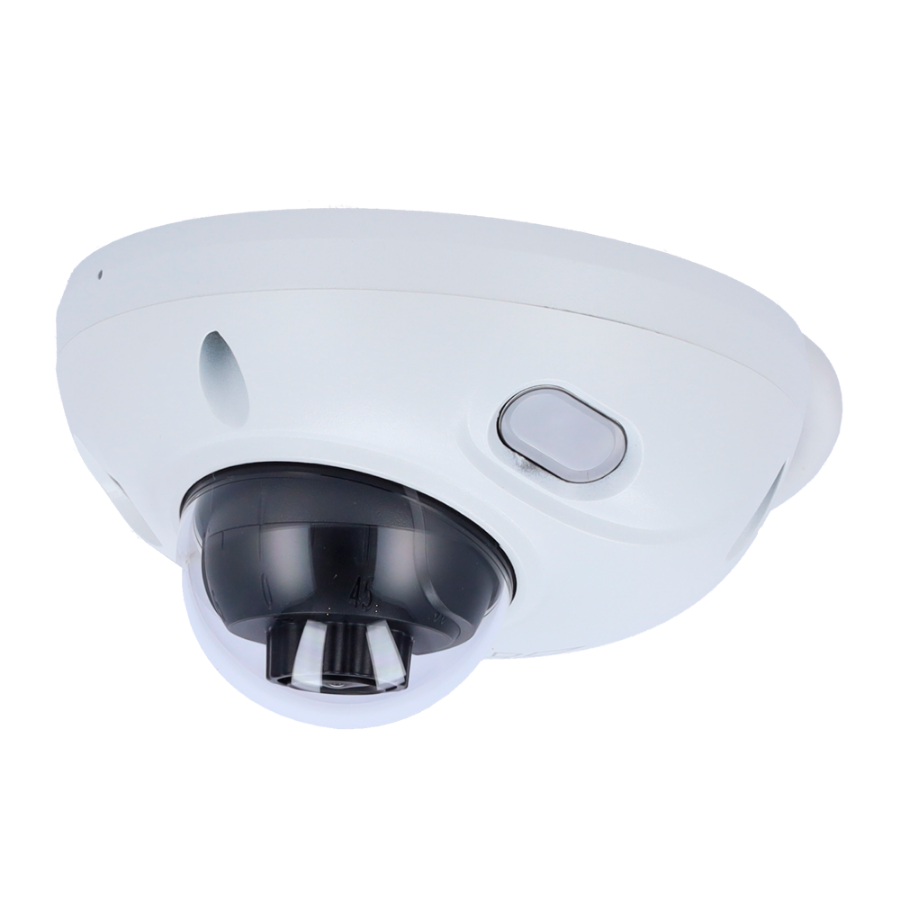

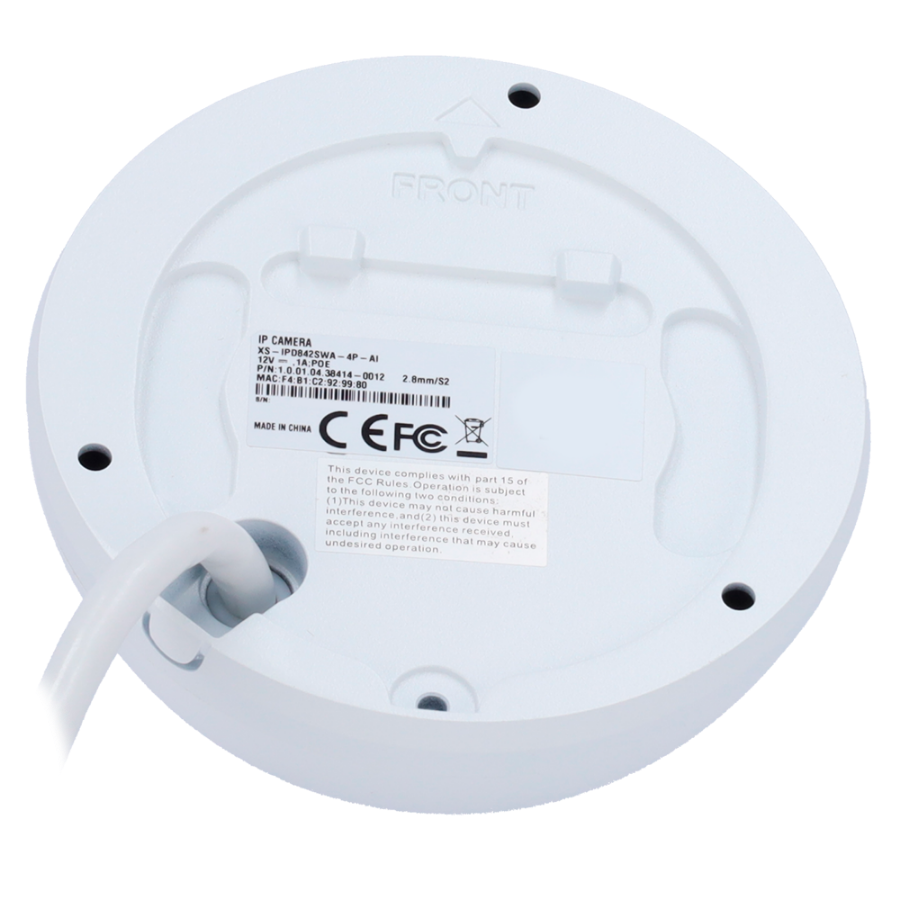

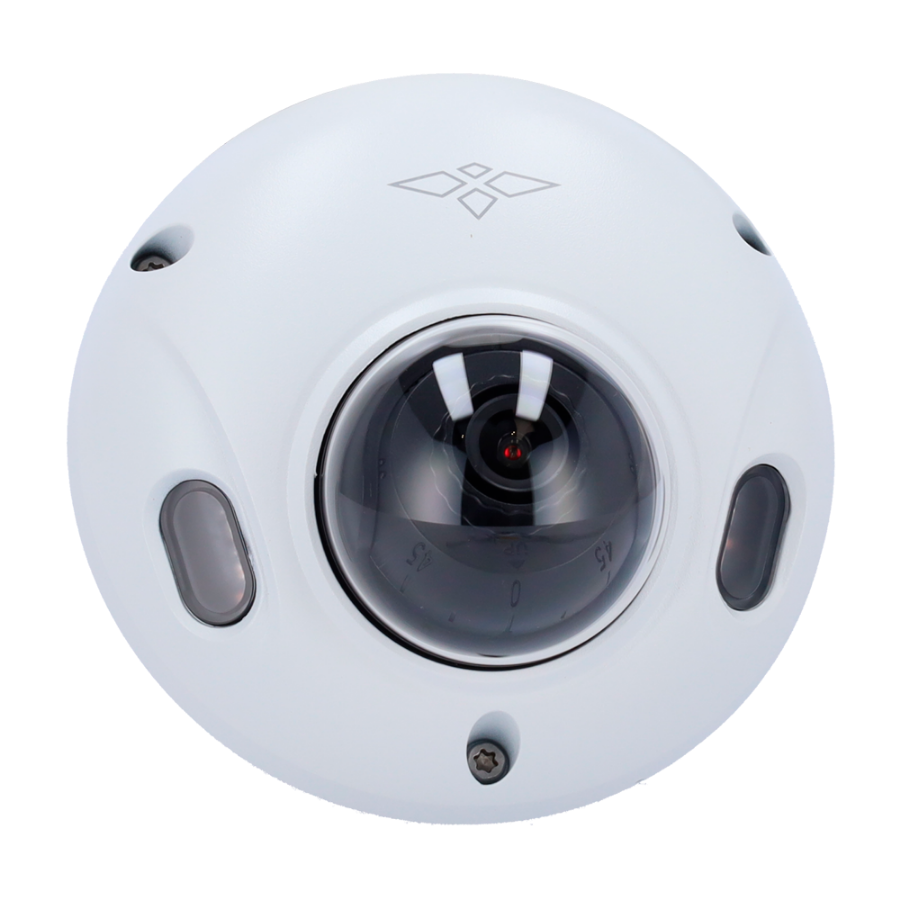

| Brand | X-Security |
| Image sensor | 1/2.9” CMOS image sensor |
| Maximum resolution | 4 Megapixel (2688 × 1520) |
| Lens | 2.8 mm (H: 102°; V: 54°; D: 121°) |
| Main Stream rate | 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) |
| Extra Stream rate | 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.005 lux@F1.4 (Color, 30 IRE)0.0005 lux@F1.4 (B/W, 30 IRE)0.01 lux@F2.0 (Color, 30 IRE)0.001 lux@F2.0 (B/W, 30 IRE)0 lux (Illuminator on) |
| Range performance | 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I) |
| Video Bit Rate | H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbpss |
| Lens Adjustment | 3 Axis |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| AI SSA (AI Scene Selfadaptation) | Yes |

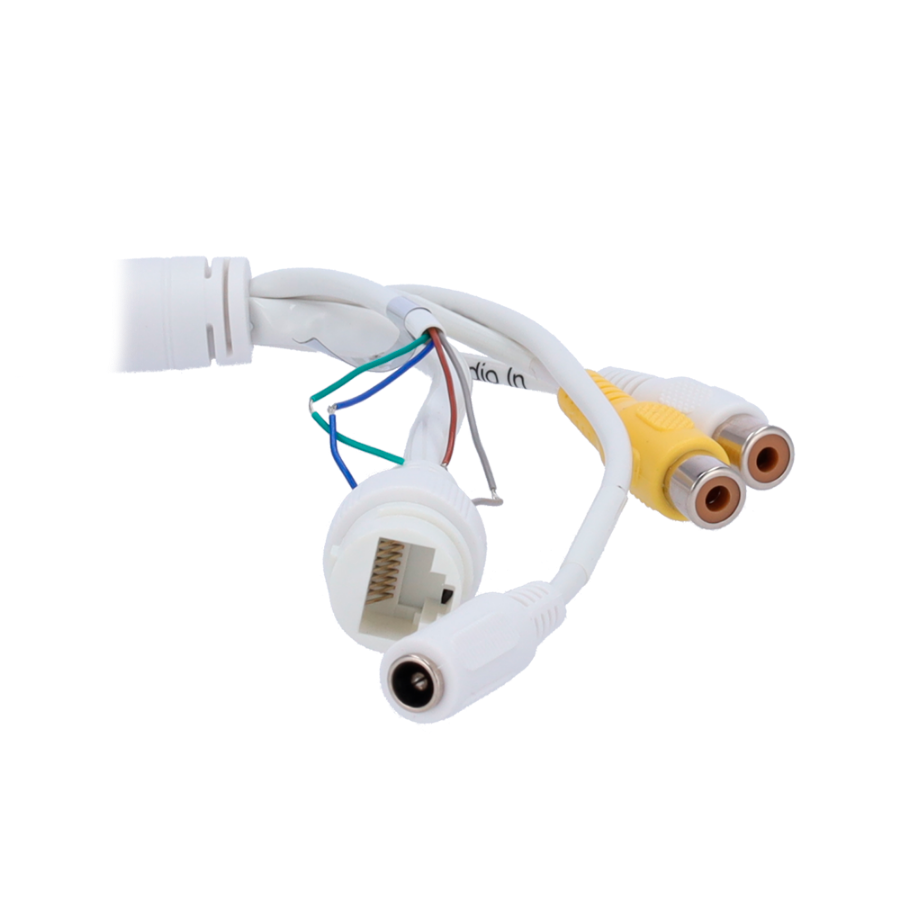

| Network interface | Ethernet 10/100 BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Audio | 1 input channel (RCA port)1 output channel (RCA port) |
| Alarms | 1 input channel: 5 mA 3–5 VCC1 output channel: 300 mA 12 VDC |
| External storage | 256 GB microSD card slot |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF (Profile S/Profile G); .CGI; P2P |
| Power | DC 12 V / 4.6 W, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Material | Metallic |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Dimensions | 64.8 mm (D) x 111 (O) mm |
| Weight | 423 g |
