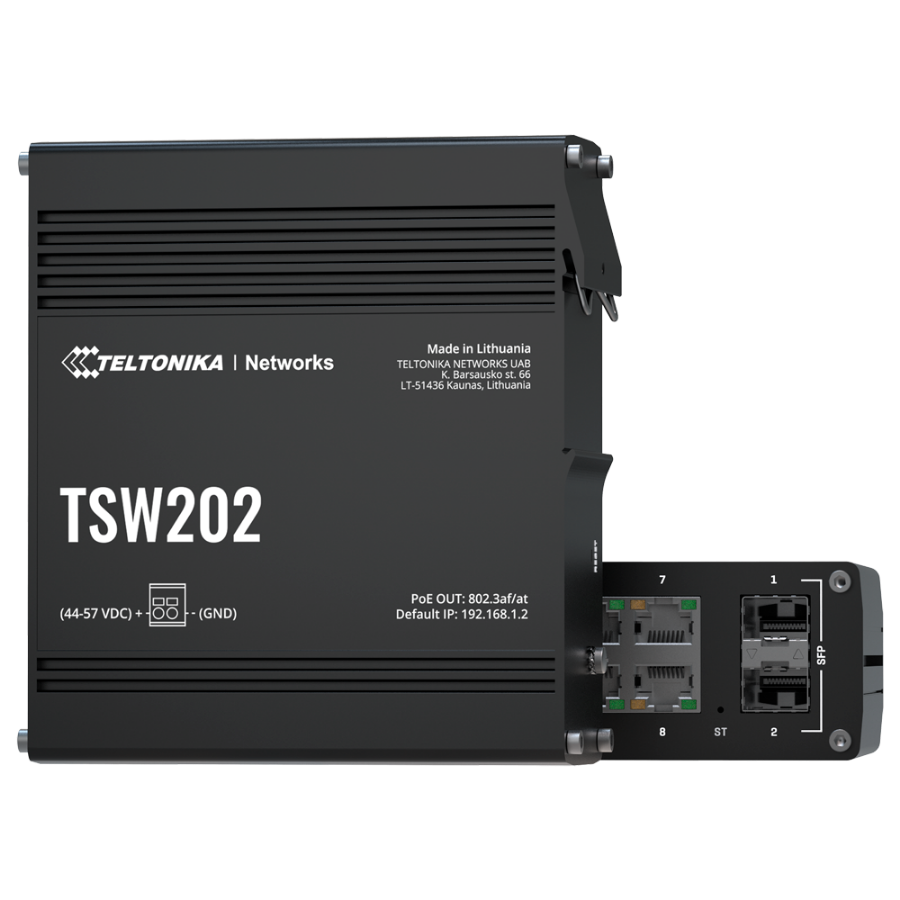

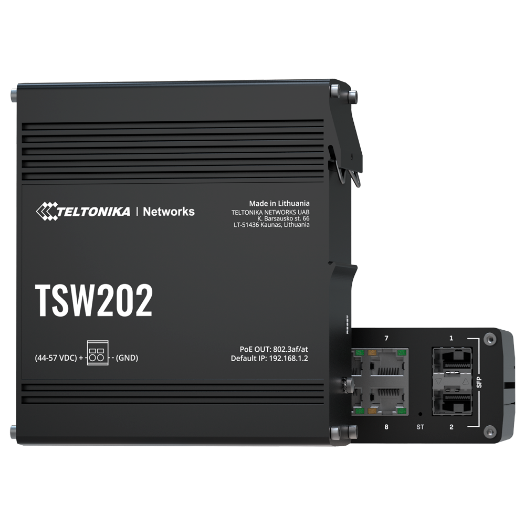

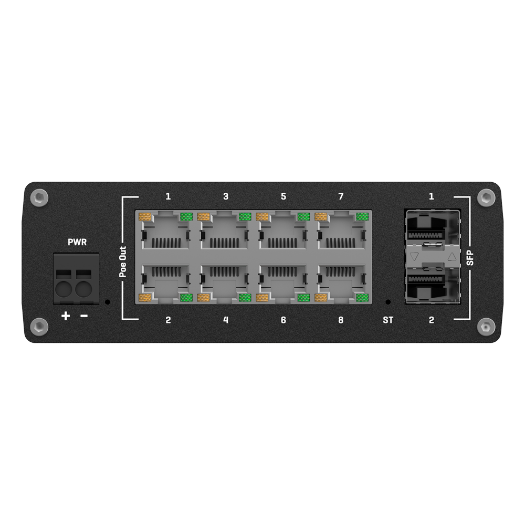

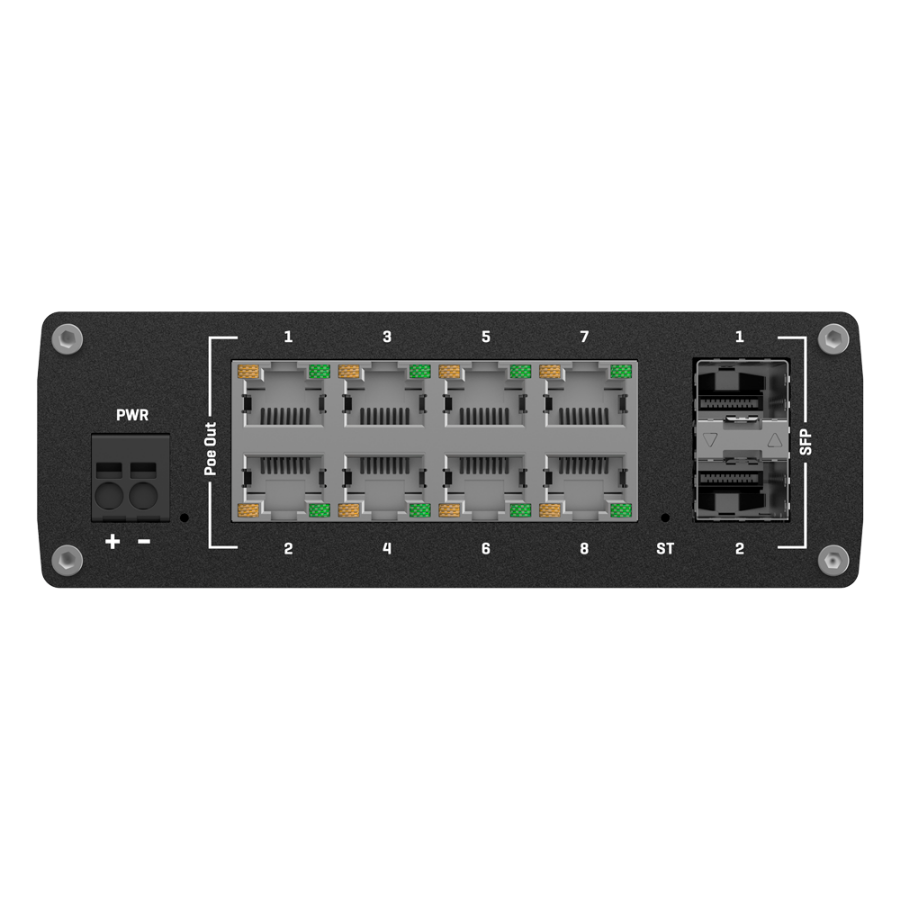

| Interface | 8 ports RJ45 10/100/1000 Mbps + 2 Gigabit SFP Ports |
| Operating system | TSWOS (Based on OpenWRT) |
| PoE | Ports 1~8 802.3af/at Up to 30 W per port |
| PoE features | According to norm IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| RAM | 128MB, DDR3 |
| FLASH storage | 16 MB serial flash |
| VLAN | 802.1Q to 4094 |
| Redundancy Protocols | Spanning Tree (STP, RTSP) MRP |
| Network Protocols and Technologies | LLDPProfinet (class B)Energy Efficient Ethernet 802.3azMRP client/manager roleForwarding tableJumbo Frame 10000 bytesLoop PreventionPort MirroringPort IsolationSNMP v2/v3 |
| DHCP | Ipv4 Server and Client / Ipv6 Client |
| Routers | IPv4/IPv6 static routing, DHCPv6 client, static IPv6 address |
| QoS | Port priorityDSCP priority802.1p priorityTOSScheduling method SP/WFQ/WRRBandwidth control Rate limiting, storm controlTraffic Shaper Port-based shaping |
| Management Protocols | Web/Cloud/CLI/FOTA |

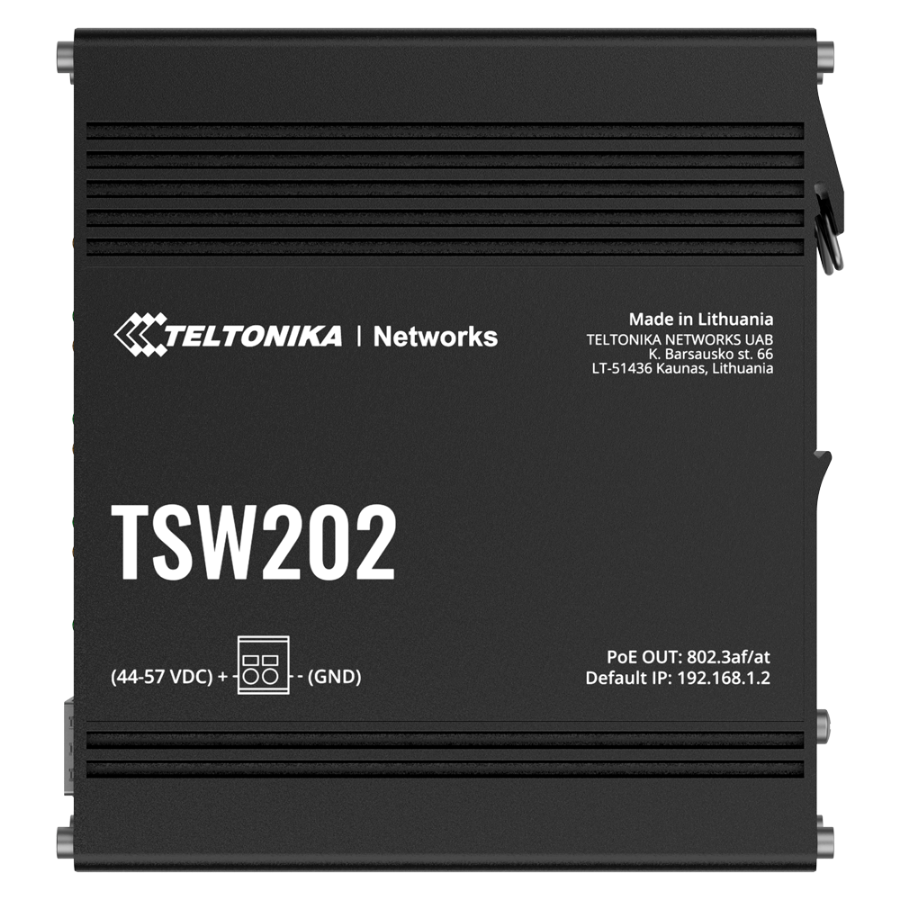

| Power | DC connector 2 Industrial pins 7~57VDC without powering PoE devices and 44~57VDC powering PoE devices (Power supply not included)Maximum consumption 8W / 248W with PoE |
| Material | Anodized Aluminum |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |

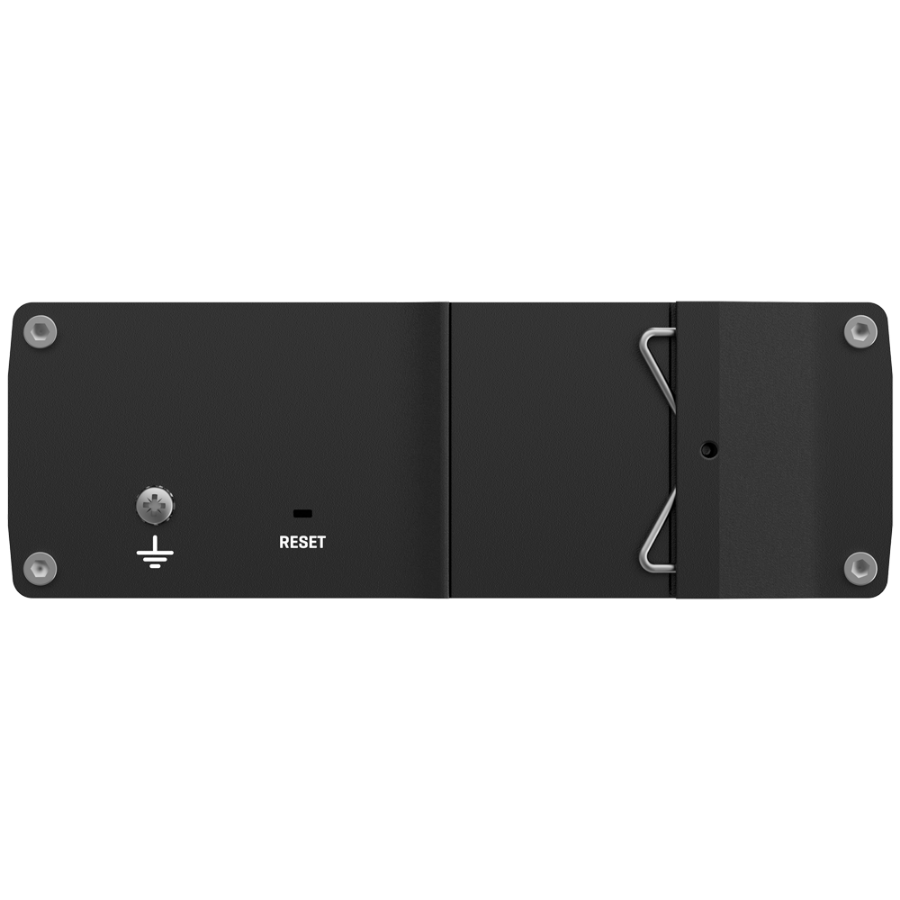

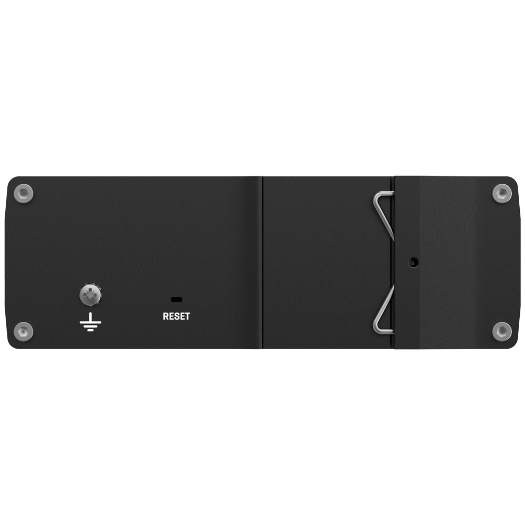

| Mounting kit | Rail Mounting KitCompact Rail Mounting Kit (Optional)Surface Mount Kit (Optional) |
| Protection | IP30 |
| Dimensions | 44,2 (Al) x 132 (W) × 122,2 (D) mm |
| Weight | 610 g |
