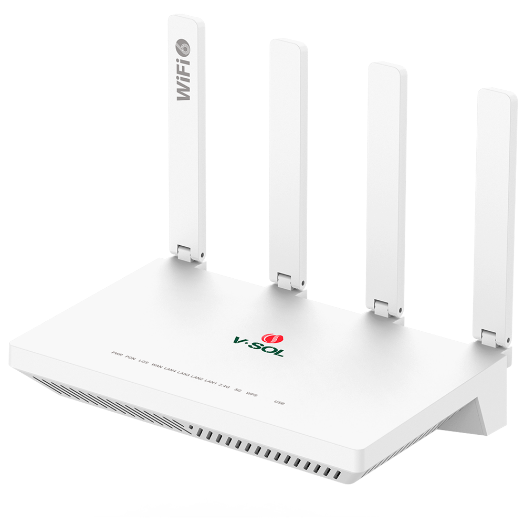

V2804AX30-A

V-SOL Router ONT Wi-Fi 6 AX3000
1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0
802.11ac 2x2 double band 2.4 and 5GHz
Ideal for home and business FTTH
Designed to create a complete Mesh network

Brand: VSOL

Šifra: V2804AX30-A

47,39 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Brand	V-SOL
Interface	1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0
PON	XPON Port (EPON PX20+ and GPON Class B+)Single-mode SC, SC/UPC connectorOptical transmission power: 0 to +4 dBmReceiving sensitivity: -27 dBmOptical overload power: -3 dBm (EPON) o -8 dBm (GPON)Transm
WiFi Antennas	Complies with IEEE802.11b/g/n/axWi-Fi: 2,4 GHz, 5 GHz 2x2, speed up to 3,0 Gbps, multiple SSIDsTransmission power: 2,4 GHz: 18 dBm; 5 GHz: 17 dBmReceiving power: 2,4 GHz: HT40-MCS7 -71 dBm; 5 GHz: VHT
Funciones WiFi	802.11b/g/n/ax integradoAutenticación: WAP-PSK (TKIP)/WAP2-PSK (AES)Múltiples SSIDSSID ocultosWiFi MeshAdmite hasta 64 conexiones de dispositivos
Protocolos de Gestión	OAM/OMCI/Telnet/Web/TR069Admite la gestión completa de las funciones de HGU mediante VSOL OLT
Funciones de capa 2 ( switching )	Compatible con bridge 802.1D y 802.1ad, VLAN 802.1Q
Funciones de capa 3 ( routing )	IPv4, IPv6 e IPv4/IPv6 dual stackDHCP/PPPOE/EstáticoRuta estática, servidor DHCPNAT/DMZ/DDNS
Multicast	IGMP v1/v2/v3, espionaje IGMPProxy IGMPEspionaje MLD v1/v2
Seguridad	Funciones básicas de firewall Filtrado de MAC basado en MAC o URLACLsCompatible con detección de bucles
Color	Blanco
Dimensiones	260,4mm x 157,4mm x 45,8mm
Peso	550g
Temp. Funcionamiento	0o C ~ +55o C
Alimentación	DC 12V 1A (adaptador incluido)

Opis

The V2804AX (WiFi6 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH.

The ONT is based on high-performance chip solutions, supports dual-mode XPON technology (EPON and GPON), as well as IEEE802.11b/g/n/ac/ax WiFi 6 technology and other 2/capa 3, layer functions providing data services for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and allows configuring or managing various ONT services on the VSOL OLT.

The ONT offers high reliability, is easy to manage and maintain, and has quality of service (QoS) guarantees for various services. Complies with a number of international technical standards such as IEEE802.3ah and ITU-T G.984.
