| Model | PAVA9008 |
| Input sensitivity | - MIC: 30mV, 600?- LINE: 1000mV, 10k? |
| Frequency response | 80Hz~15kHz (±3dB) |
| Distortion | <1% |
| SNR (Signal to Noise Ratio) | >75dBA |
| Power | - PoE (48±3)V, 0.1A- DC 24V |

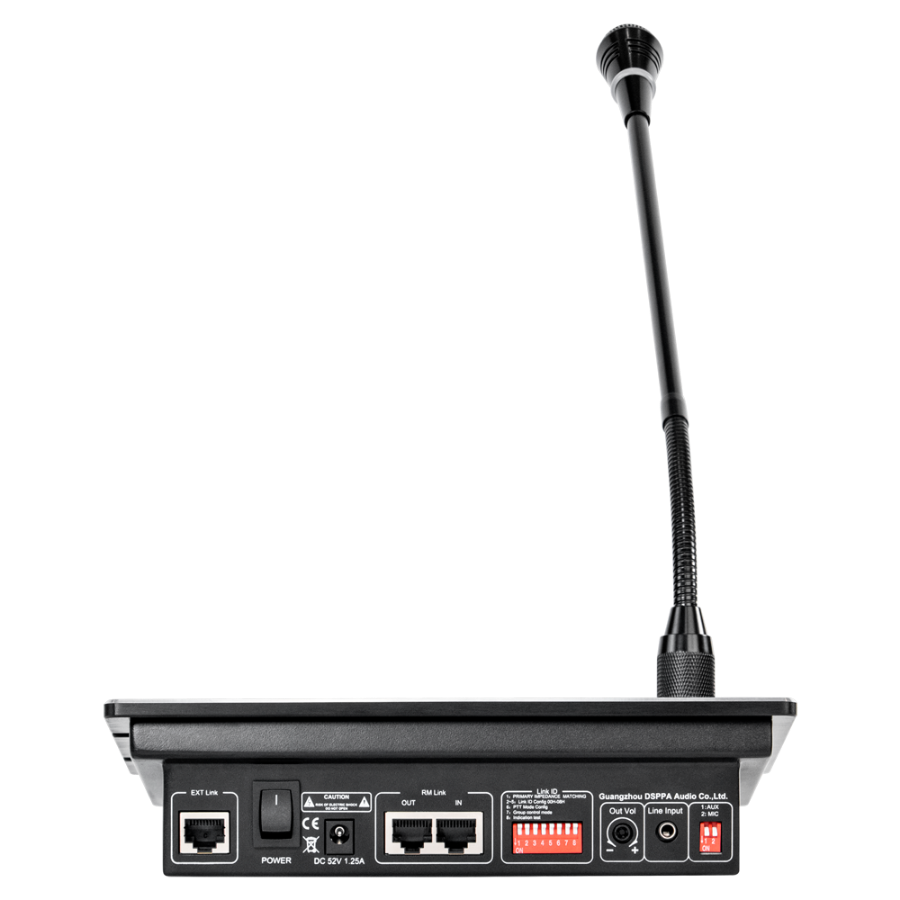

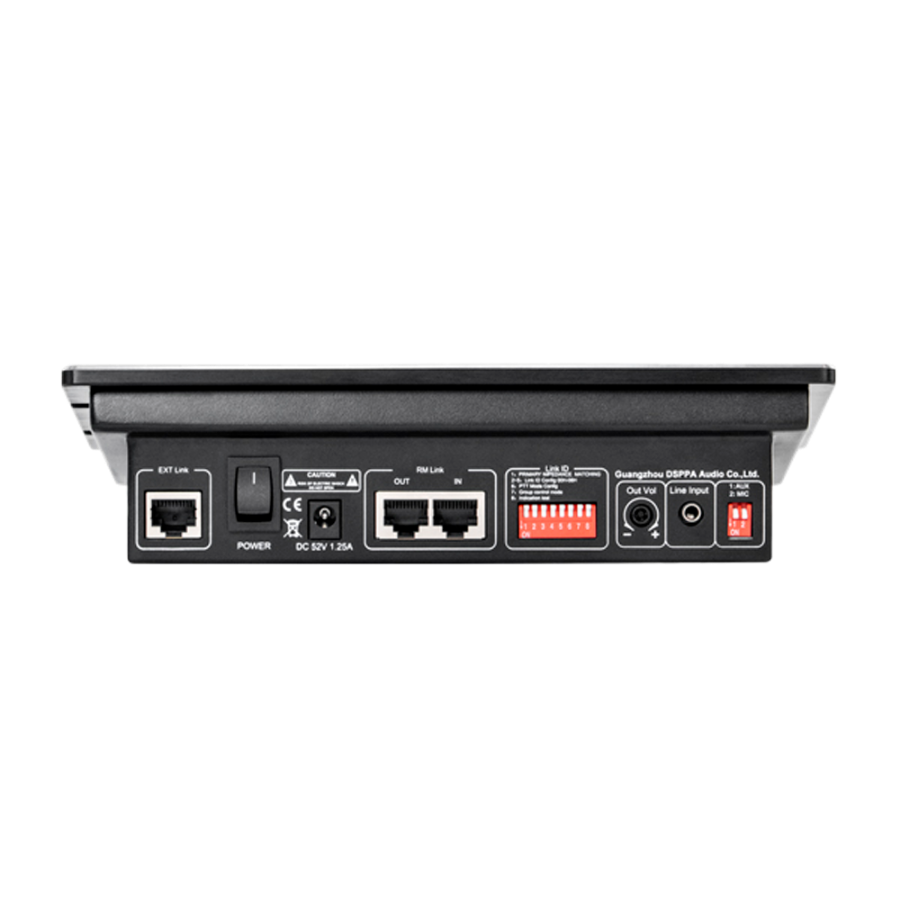

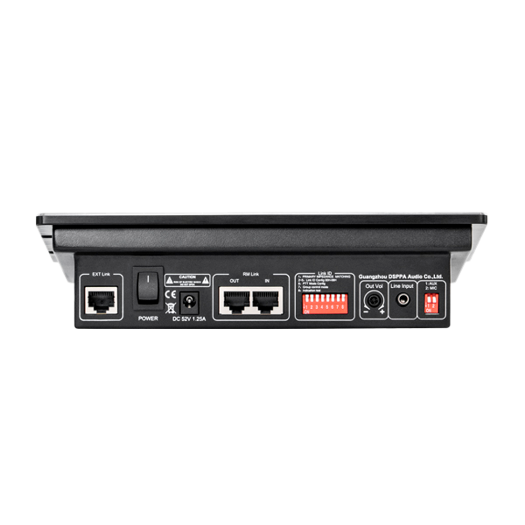

| Ports | - 1 x RJ45 (Expansion keyboard connection)- 2 x RJ45 (Cascading with other microphones)- 1 x LINE IN (Jack 3.5mm) |
| LED indicators | - On/Off- Status occupied- Active microphone- Selected area |
| Other | - 1 x ID configuration switch- 1 x Potentiometer for sensitivity control- 1 x DIP switch configuration |
| Dimensions | 220mm (W) x 166mm (H) x 54mm (D) |
| Weight | 1.25kg |

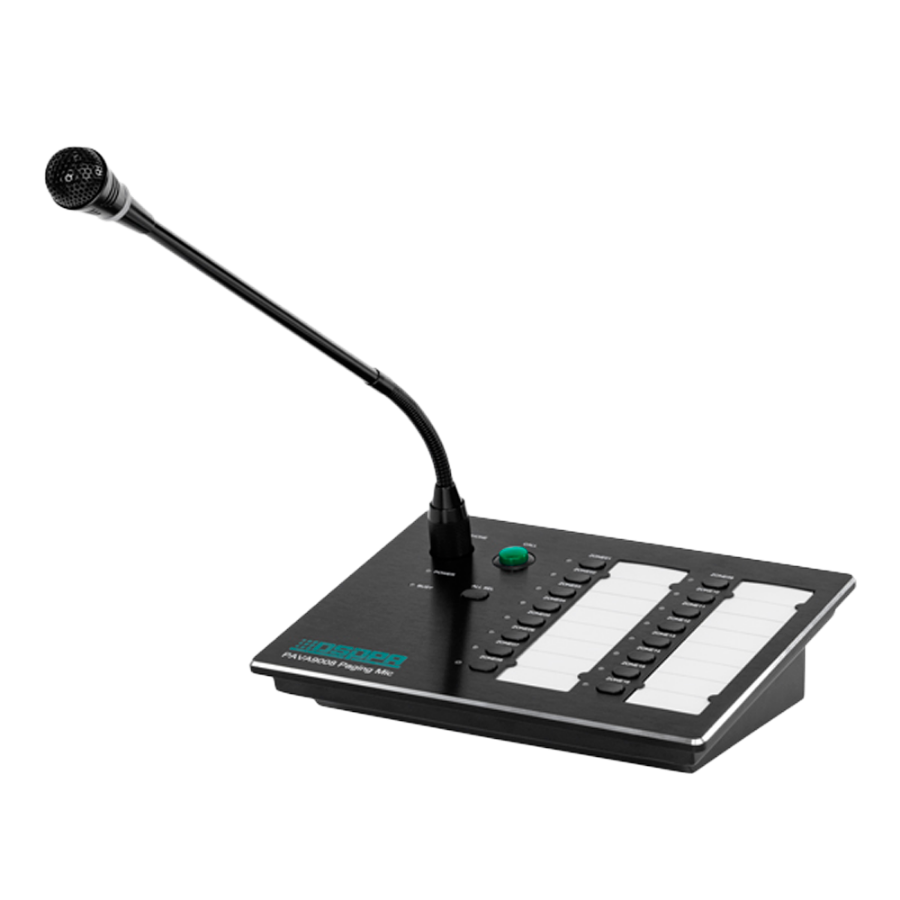

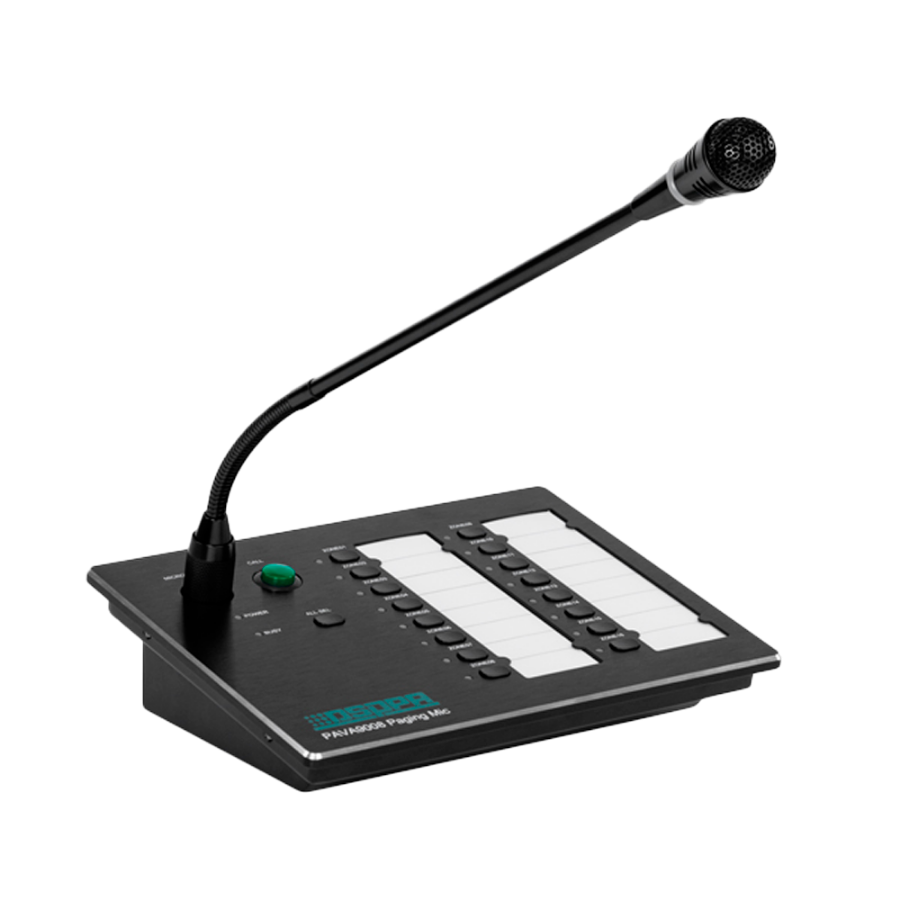

This type of microphone is designed for use in voice evacuation systems. Enables live announcements and selection of several different zones, making it an essential tool for fast and targeted communication within large and complex facilities.

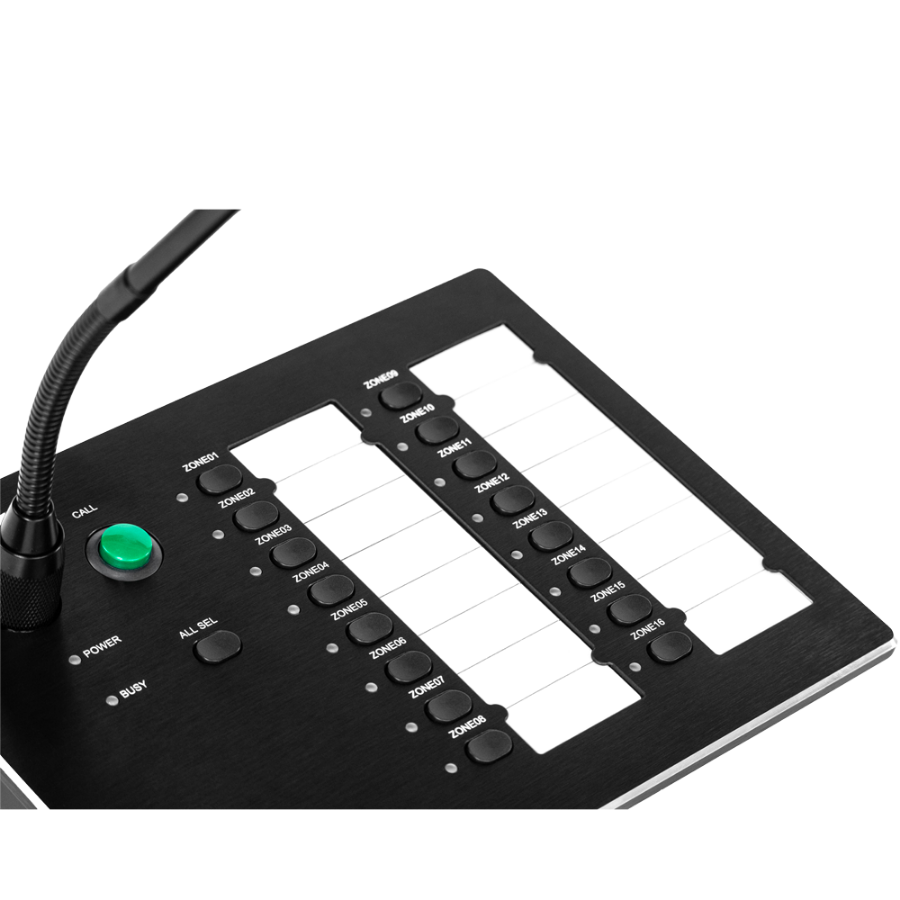

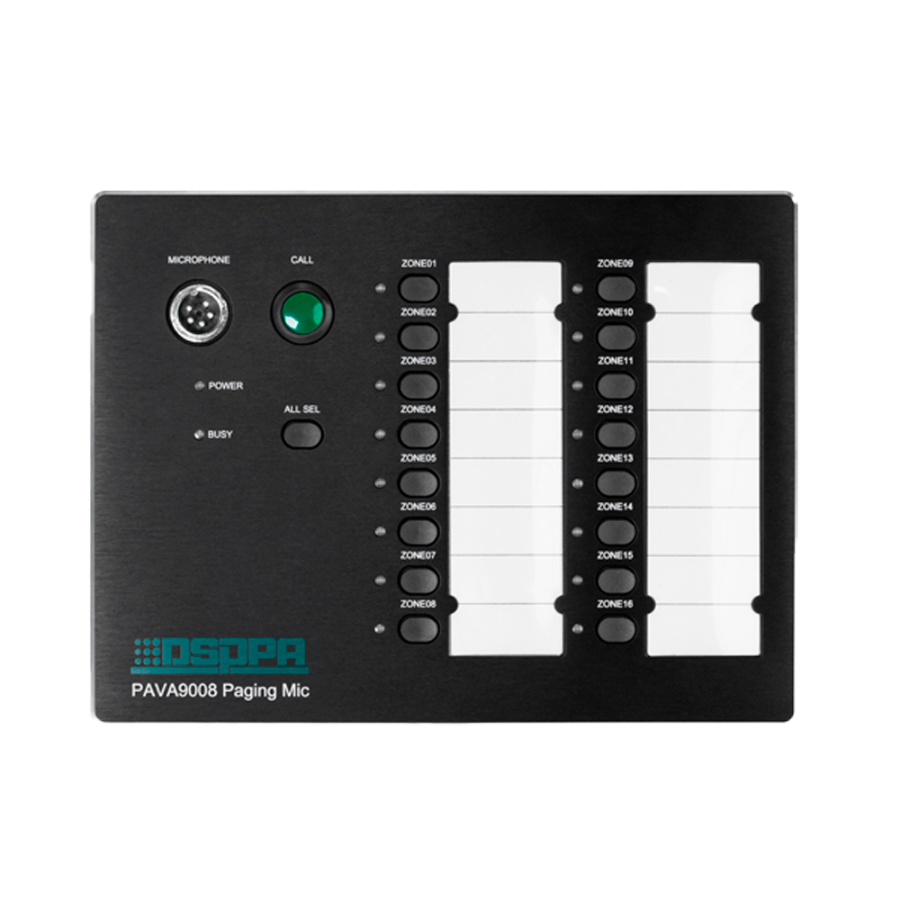

This type of equipment is used in environments such as airports, shopping malls, hospitals or schools, where clear messages need to be broadcast to specific areas without the need to be in the control center. Its intuitive interface, with illuminated buttons and LED display, facilitates its use even in emergency situations, ensuring an agile and effective response.
