UV-LINK-BOX Uniview Ideal for configuring IP cameras 4 inputs RJ45 10M/100M Base

Uniview
Ideal for configuring IP cameras
4 inputs RJ45 10M/100M Base-TX Ethernet
WiFi 2.4G (IEEE802.11b/g/n).
1x PoE port and 12V output DC
Lithium battery 7500mAh

Brand: UNIVIEW

Šifra: UV-LINK-BOX

GTIN: 6937096335461

115,00 EUR

Visoka dostupnost

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Brand	Uniview
Battery capacity	7500mAH (Lithium Battery 18650) (Lithium Battery [%VAR%])
Communication	WiFi, RJ45 10/100/1000M4 X RJ45 10M/100M Base-TX EthernetPort 1 supports POE (IEEE802.3af) OutputPort 4 supports PSE Voltage Test
Wifi	2.4G Wi-Fi (IEEE802.11b/g/n)
Test Voltage	1 x PSE test Voltage (PSE voltage sensing range: 1V~56 V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt)1 x DC test voltage (DC voltage detection range): 1V~56 V)
Input	1 x DC 5V/2A max, Type C
Output	1 x PoE Port (Powers a camera with the device's own battery)1 x DC 12V/1A1 x USB 5V/1A, TypeA
LED status indicator	System, WIFI and Battery
Temp. operation	-20?~60?, Humidity: ?95% RH
Dimensions / weight	130 (Al)× 85 (W)× 33 (D) mm

Opis

The Uniview Link Box is an innovative device designed to facilitate the installation and configuration of Uniview video surveillance equipment. It is compact, portable and especially useful for professional installers, as it allows cameras to be connected and configured directly from a cell phone or tablet, without the need for additional hardware.

Uniview IP camera configurator device
Compatible with Uniview cameras for initial configuration

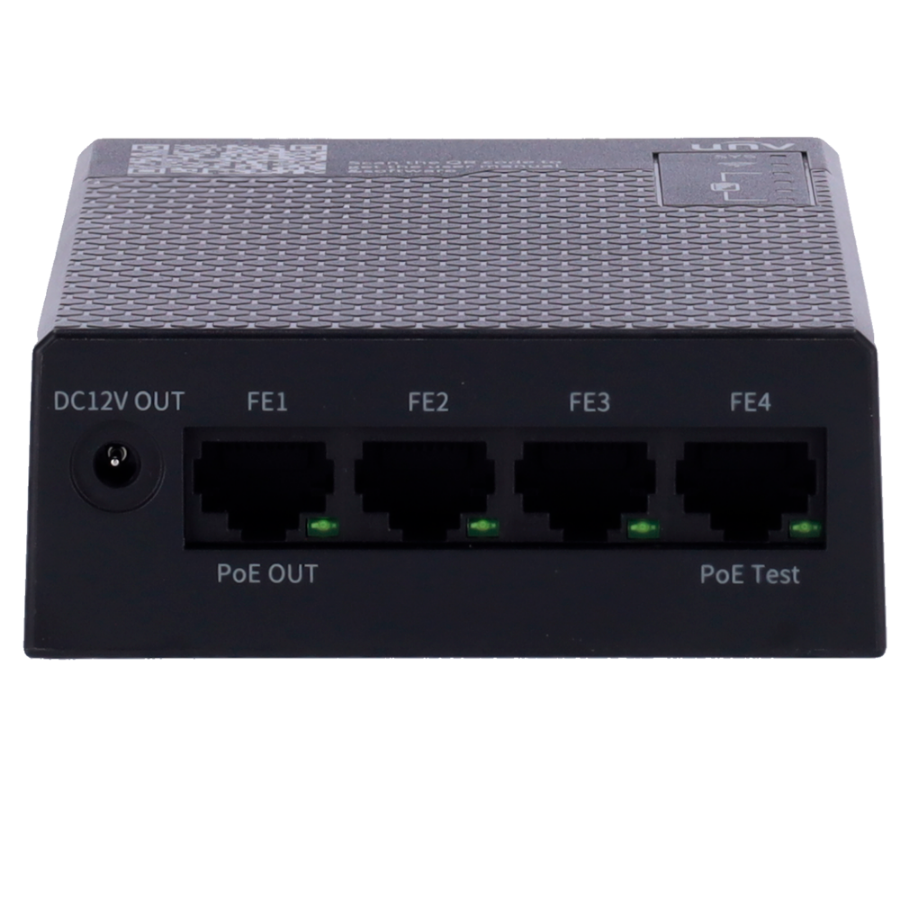

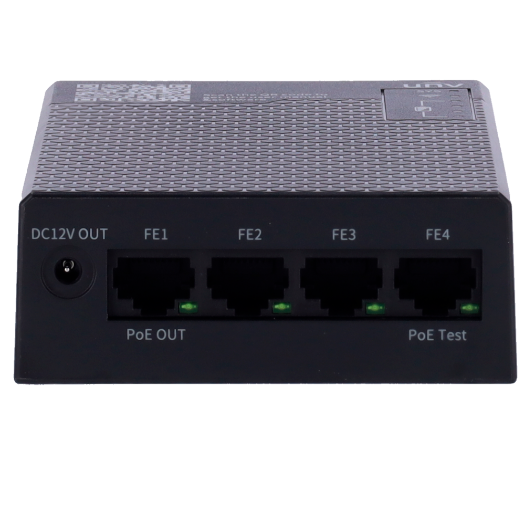

4 RJ45 (10M/100M Base-TX Ethernet inputs)
Port 1 supports POE output (IEEE 802.3af))
Port 4 supports PSE voltage detection (1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) [%VAR%]
WiFi 2.4G (IEEE802.11b/g/n)
Lithium battery 7500mAh

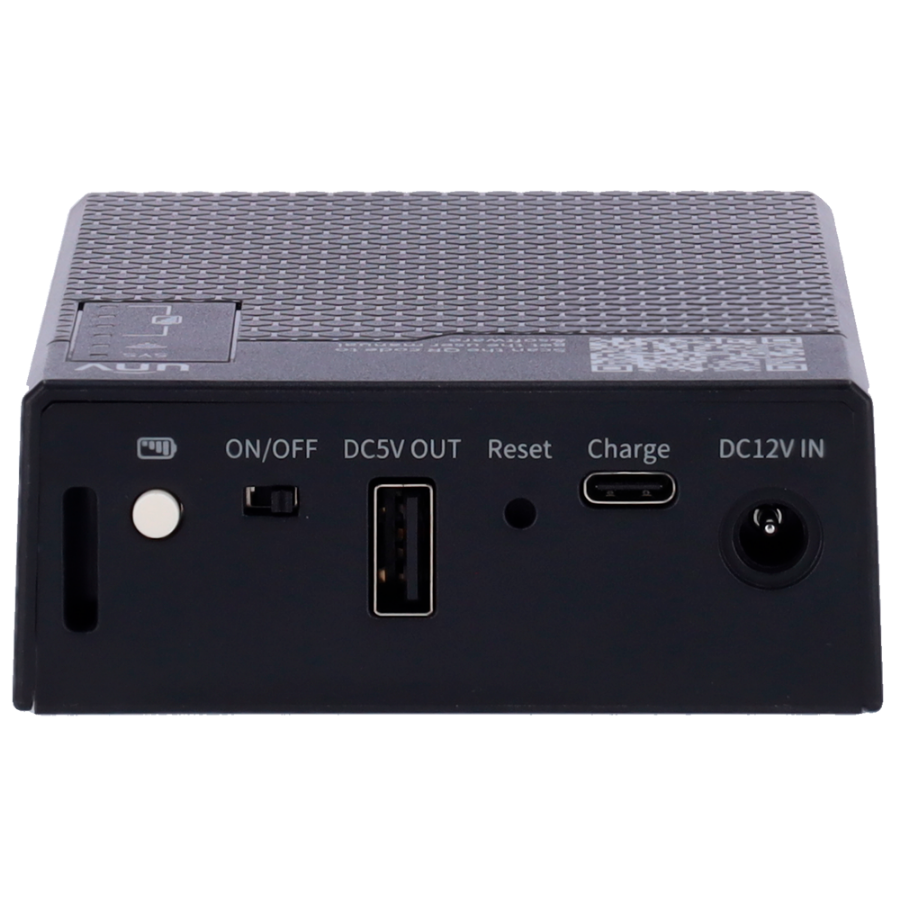

DC power outputs 12V,1A/ 5V ,1A and USB-A
With reset button
