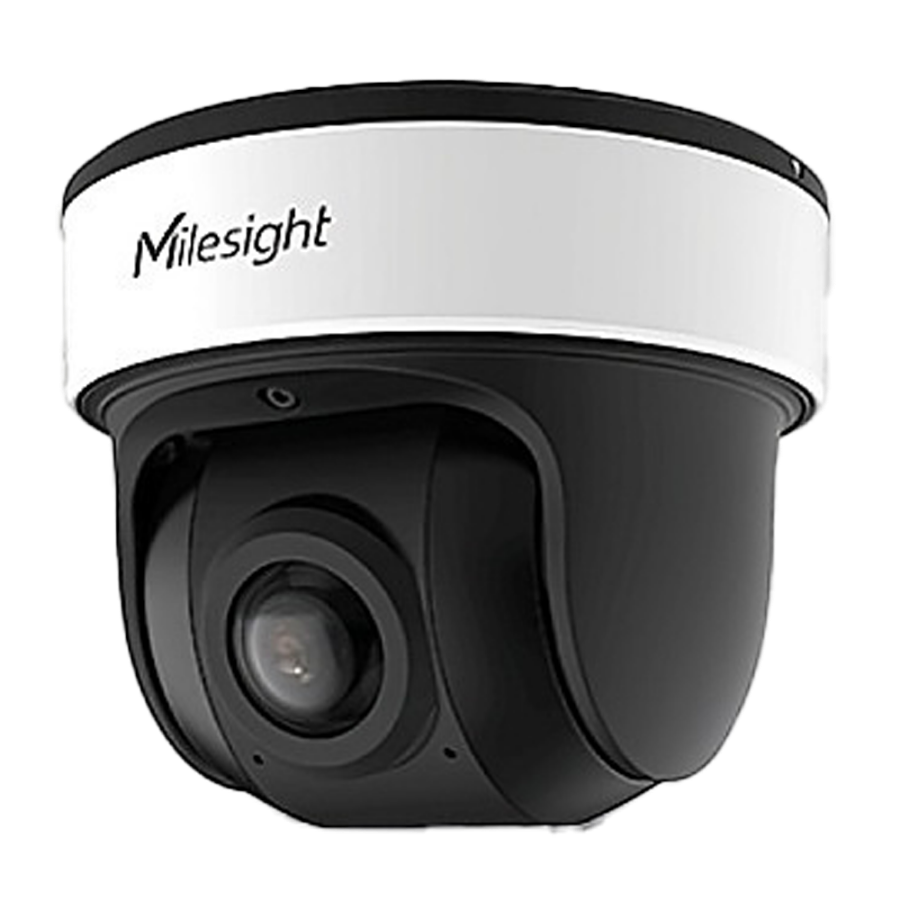

| Brand | Milesight |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 4K (3840x2160) |
| Main Stream rate | 25fps@(3840x2160, 3440x1936, 3200x1800, 2880x1624, 2560x1440,1920x1080, 1280x720) |
| Extra Stream rate | 25fps@(704x576, 640x480,640x360) |
| Rate 3rd Stream | 25fps@(1280x720, 704x576,640x480, 640x360) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable) |
| Lens | 1.68mm |
| FOV | H180° / V86° |
| Minimum illumination | Colour: 0.012 Lux@F2.0B/W: 0 Lux with IR ON |
| Infrared Light | 15m. |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Advanced features | Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, defog, AWB, IP address filtering, AGC, anti-flicker, corridor mode, debur |
| ROI | Up to 8 Areas |
| VCA Intelligent Analysis 2.0 | Advanced motion detection, line crossing, loitering detection, region entry, region exit, object left, object removedHeat map |
| Attribute detection | Yesmultaneous detection of up to 50 human/vehicle objectsRecognizes attributes including top and bottom clothing color, hat and vehicle type (bicycle, car, motorcycle, bus, truck, electric scooter). |
| People counting and reporting | Count of people crossing the lineSupport for regional people counting in up to 4 detection areas |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD card, enable alarm output, SIP call, HTTP notification |
| Communication Interface | Ethernet Port 1*RJ45 10M/100M |
| Internal memory | Supports local storage on microSD/SDHC/SDXC card up to 1TB |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio bit rate | 16~256Kbps |
| SIP/VoIP | Si. Voice and video over IP |
| Remote access | Web browser, smartphone App and software Milesight Central Management System, Milesight VMS Enterprise |
| Interoperability | ONVIF (Profile G/S/T/M) |
| Power | Max.: 7.6W (DC12V), 9W (PoE) |
| Degree of protection | Weatherproof IP67, IK10 |
| Compliance | NDAACE-EMC (EN 55032, EN 55035), FCC (PART 15B))CE-LVD (EN IEC 62368-1))CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Temp. operation | -40oC~+60oC |
| Dimensions | 127mm. (O) X 107mm. |
| Weight | 853g. |
