| Brand | Teltonika |
| Device | Industrial 4G Router |
| Ethernet | 4 Ethernet ports RJ45 10/100Mbps (1 WAN + 3 LAN) |
| CPU | Atheros Wasp, MIPS 74Kc, 580 MHz |
| RAM | 128MB DDR2 |
| Flash | 16MB |
| Wi-Fi features | 802.11b/g/n 2.4GHz (AP Mode and STA Mode) |
| Type of 4G | Cat 4 to 150Mbps |
| Maximum Number of Wi-Fi Clients | 100 (Depending on traffic generated) |
| Operating system | RutOS (Based on OpenWRT) |
| Dual SIM | Auto Switch in case of low signal / data limit / roaming / no network |
| GNSS Technologies | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Services | DDNS, VRRP, Wake On Lan (WOL), Web Filtering, UPNP, Traffic Logging |
| Inputs and Outputs | Socket 4 pins: 1 x Digital Input, 1 x Open Collector Digital OutputSocket 10 pins: 1 x Isolated digital input, 1 x Dry contact digital input, 1 x Analog input, 1 x Isolated open collector output (requ |
| Power | DC connector 4 Industrial pins 9~30V Power Supply Included |
| Material | Aluminium |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 50 (Al) x 110 (W) × 100 (D) mm |
| Weight | 287 g |

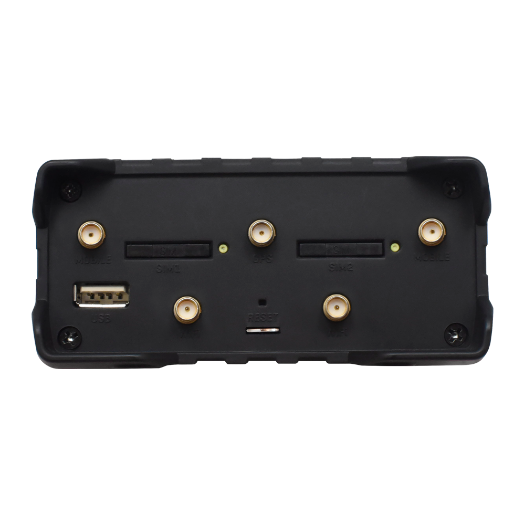

The TK-RUT956 router is a network device designed to provide robust and reliable connectivity. It is ideal for applications in industrial and commercial environments, as it combines the functionality of an 4G LTE router with wired network capabilities.
Offers outstanding remote management features (RMS) and VPN functionality.
RMS (Remote Management System): This router enables remote management through the RMS platform, facilitating monitoring and control of connected devices from any location. This is especially useful for companies that need to manage multiple routers in different locations, as it provides a centralized interface for configuration, upgrades and device status monitoring.
VPN (Virtual Private Network): Supports multiple VPN protocols, enabling secure, private connections over the Internet. This is ideal for protecting sensitive information and ensuring that communications between different networks or devices are secure. With the ability to configure VPNs, users can access the network remotely without compromising security.
