| Image sensor | 1/3" Sony© 960H Super HAD CCD II (ICX811AKA) |
| DSP | Effio-E (CXD4140GG) |
| Resolution | 650 TVL |
| Video output | 1 Vp-p 75 ? / RCA |
| Minimum illumination | 0.1 Lux / F2.0 |
| S/N ratio | > 52 dB |
| Lens | 3.6 mm (79o) |
| Basic functions | AGC, BLC, HLC, ATW |
| Power | DC 12 V / 75 mA |
| Temp. operation | -10o C ~ +50o C |
| ENVIRONMENT | Suitable for exterior IP66 |
| Dimensions | 75 (H) x 23 (O) mm |
| Weight | 40 g |

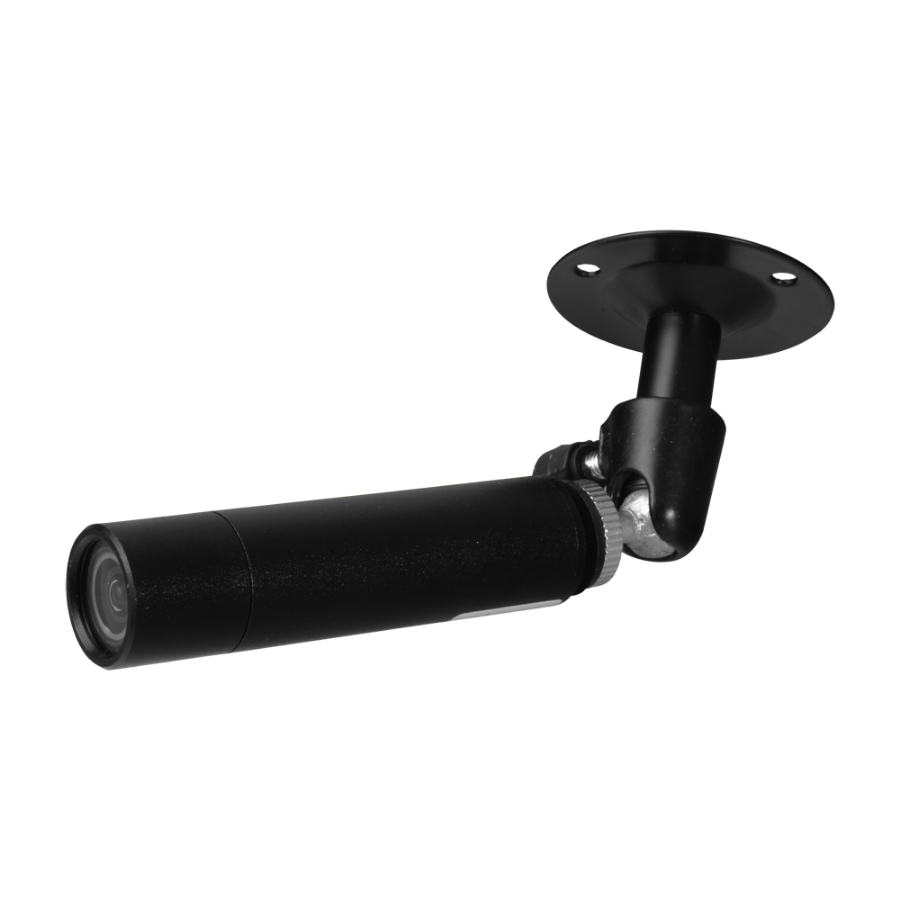

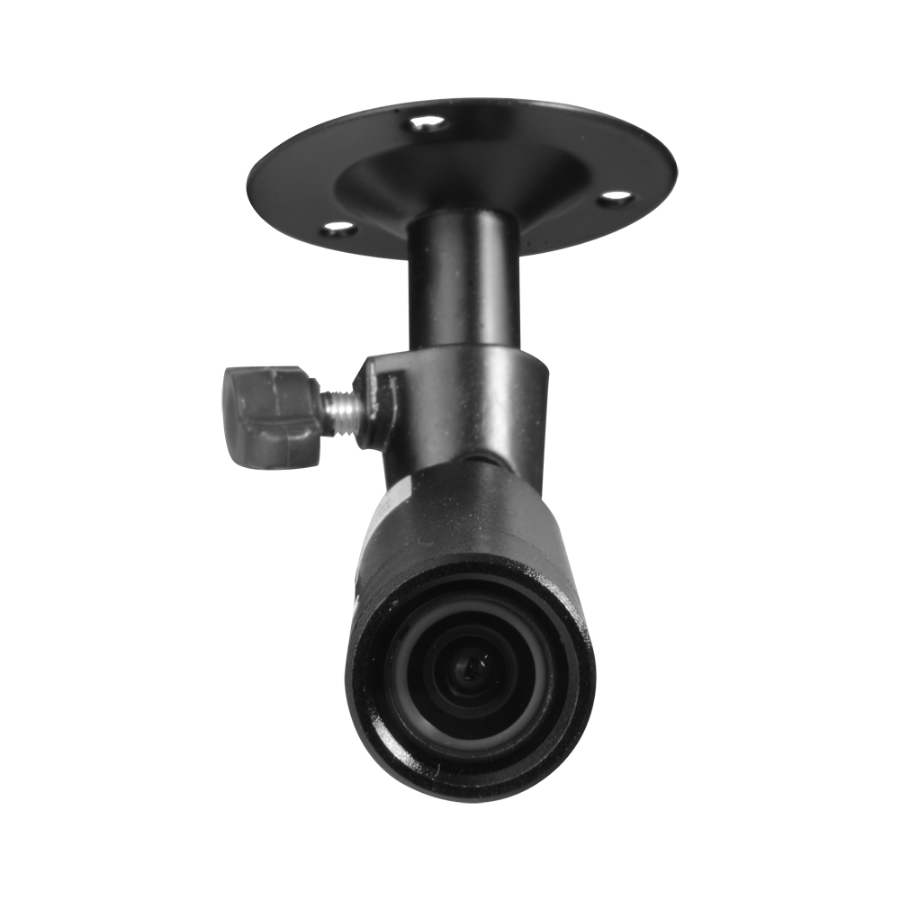

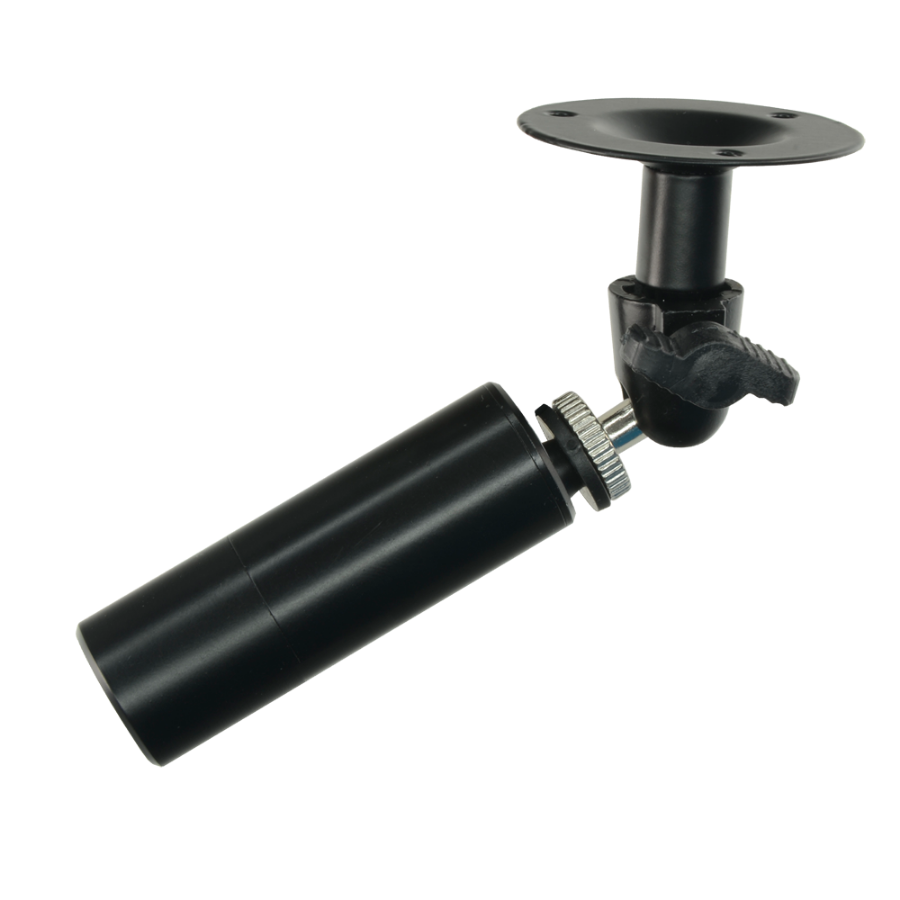

Bullet camera.
Consisting of a sensor 1/3" Sony© 960H Super HAD CCD II (model ICX811AKA) and DSP Effio-E (model CXD4140AGG), with a resolution of 650 TVL. Fixed lens of 3.6 mm with a diagonal vision field of 79o. Minimum illumination 0.1 Lux, will provide excellent functionality in low light conditions.
Video connection via BNC connector. With reduced dimensions and a tubular shape make this adequate for any space. Robust camera, weather resistant IP66, so it can be used outdoors .
