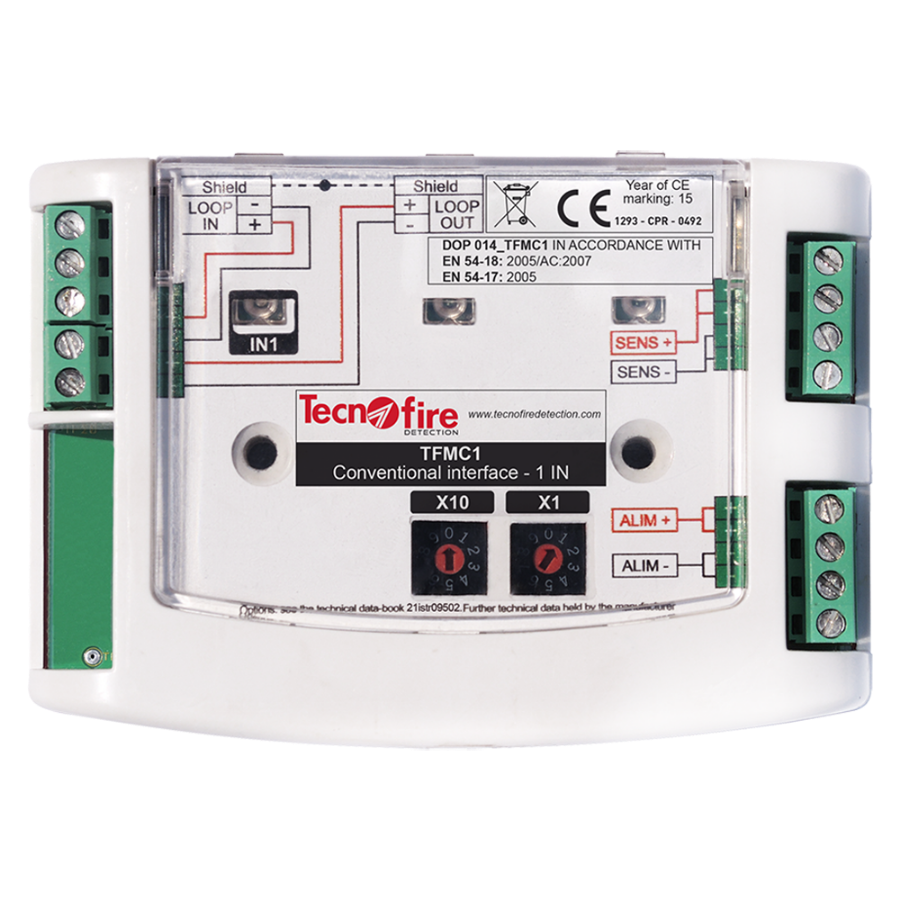

| Device name | TFMC1 |
| Description | Module 1 input for conventional detectors |
| Communication protocol | FIRE-SPEED |
| Address | 2 rotary selectors |
| Frequency of interrogation | 2 levels |
| Communication WITNESS | Signaling that can be excluded |
| Pre-alarm a detector | Programmable |
| Power | From loop |
| Nominal voltage | 24VDC |
| Operating voltage | 18V...30VDC |
| Standby absorption | 450µA @ 24V DC in absence of communication |
| Absorption in alarm | 2,5mA @ 24V DC |
| Line separator | Intelligent isolator (no device loss) |
| External power supply | a Range from 18 to 30V DC |
| SENS+ power supply output | Max. absorption. total 500mA |
| Line absorption at rest | Max. 18mA |
| Current available sensor line | Imáx. 70mA ±5mA |
| Exercise temperature | -15°C...+70°C |
| Relative humidity | 10%...93% (in absence of condensation) |
| Degree of protection | IP40 |
| Container | ABS V0 |
| Dimensions | (L x W x H) 112 x 78 x 25mm |
| Weight | 165g |
| Standards | EN 54-18: 2005/AC: 2007 - EN 54-17: 2005 |
| Approval certificate | 1293-CPR-0492 |
| Year of CE marking | 15 |
| Benefit statement number | 014_TFMC1 |
| Certification body | EVPU |
1 addressable module for conventional supervised sensor input.
Service input for optoisolated sensor power supply.
Programmable functions: pre-alarm signal.
1 status indication led.
Complete RSC® device management: programming, remote management and control of all operating parameters.
Surface or DIN mounting (TFDIN accessory).
EN 54-18: 2005/AC: 2007 - EN 54-17: 2005.
Approval certificate 1293-CPR–0492. 1 input for conventional supervised sensors.
Service input for optoisolated sensor power supply.
Programmable functions: pre-alarm signal.
1 status indication led.
Complete RSC® device management: programming, remote management and control of all operating parameters.
Surface or DIN mounting (TFDIN accessory).
EN 54-18: 2005/AC: 2007 - EN 54-17: 2005.
Approval certificate 1293-CPR–0492.
