| Processor | Linux Based 1Ghz CPU |
| Algorithm | BioNano V10 |
| Optical fingerprint sensor | Optical Sensor |
| Activation sensor | Infrared auto-activation |
| Scan area | 22 x 18 mm |
| Resolution | 500 DPI |
| Identification time | < 0.5 Sec. |
| Capacity | Up to 3.000 fingerprints or cards |
| Records | Up to 50.000 |
| Identification modes | Fingerprint, Card & Fingerprint+Card |
| Proximity card | EM |
| PC communication | WiFi, Bluetooth, TCP/IP and miniUSB |
| Inputs | Door sensor, opening button |
| Outputs | Wiegand 26, RS485, Relay output NO/NC |
| Software | CrossChex Standard: free local PC software for access and presence controlCrossChex Mobile: free mobile application for access control |
| Protection | Suitable for outdoor IP65, IK10 anti-vandal |
| Power | DC 12 V / 150 mA |
| Temp. operation | -30 oC ~ +60 oC |
| Dimensions | 34.5 (D) x 50 (W) x 124 (H) mm |
| Weight | 450 g |

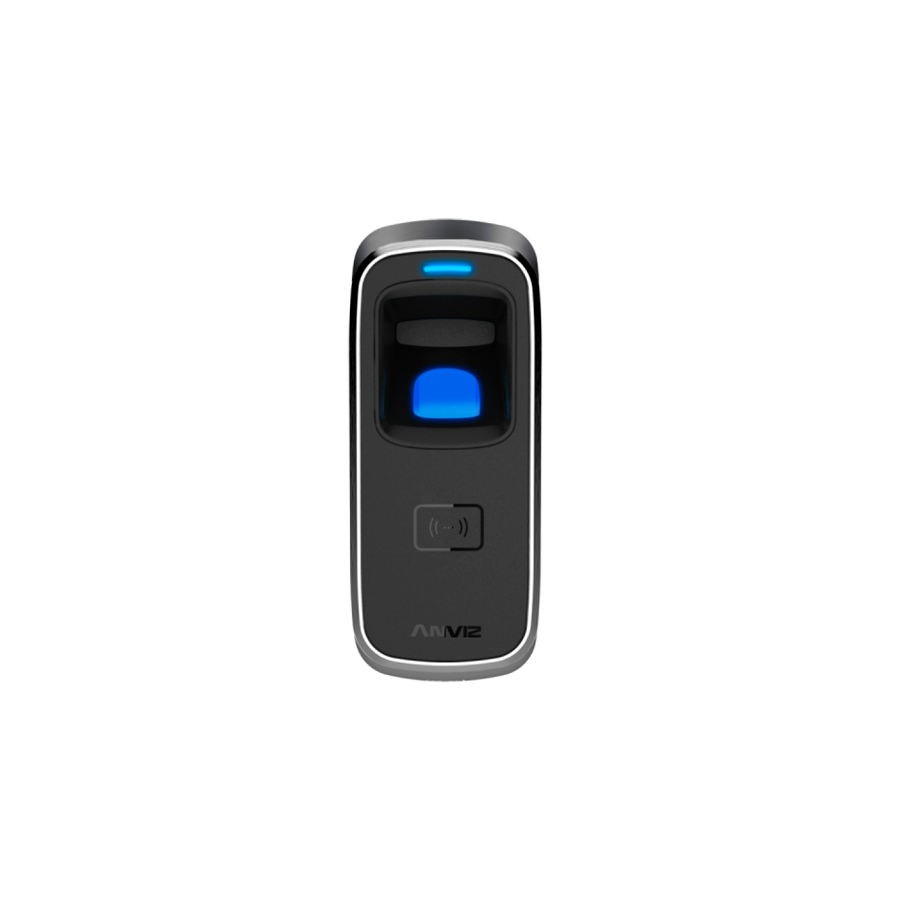

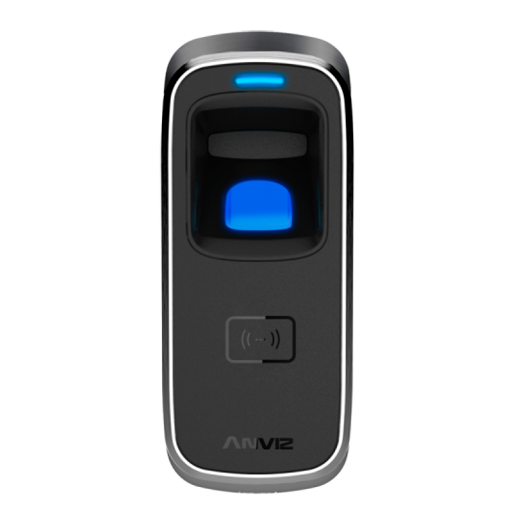

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay.
This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz, as well as fingerprint biometrics.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK10 anti-vandalism rating allows it to withstand the most challenging environments.
The CrossChex Standard software is used to configure users, schedules and access groups, as well as special functions, relay opening times or reader reading times.
