| Total manageable detectors | 199 |
| Total manageable modules 99 Total manageable modules | 99 |
| Total manageable areas | 150 |
| Virtual zones | 100 |
| Specialized relays | 2 |
| Open Collector programmable | 2 |
| Controlled output for siren | 1 |
| True Color TFT Display | 480 x 272 pixels |
| Vocal synthesis | Multilingual dictionary |
| Detection loops | 1 |
| BUS serial RS485 | 1 - Master BUS |
| Event memory capacity | 4096 |
| Access levels | 4 |
| Access codes | 10 |
| Supervised system mode | Programmable |
| Detection loop | Fire-speed |
| BUS RS485 | Fire-Bus |
| Formulas | 100 |
| Alarm plans | 50 |
| Time bands | 8 |
| Calendar years | 4 (programmable) |
| Expansion devices BUS connection RS485 Maximum 5 units | Central repeater ,Synoptic repeater, Telephone combiner |
| Serial printer | Management |
| CPU Consumption | 200mA @ 24V d |
| Electrical Outputs | Max. 50mA |
| Supply voltage Loop | 20V...27,6VDC |
| BUS supply voltage RS485 | 20V...27,6VDC |
| Supply voltage sirens | 20V...27,6VDC |
| Modular power supply | Type A (switching) |
| Supply voltage | 230V AC +10 -15% 50Hz |
| Maximum absorbed current | 600mA ac |
| Nominal values | 2,7A @ 27,6V dc |
| Maximum supply current | I max. 2,7A |
| Ripple max | ?230mV pp |
| Battery protection | T-1A Fuse |
| Flammability class | V-2 or higher |
| Internal resistance | max. 1,5 ? |
| Deactivation voltage | Per Vbat <17,6V |
| Tiempo de recarga (2 x 12V/7Ah) | 100% en 24 horas |
| Clase medioambiental | 3K5 EN 60721-3-3:1995 |
| Temperatura de ejercicio | +5° C... +40° C |
| Humedad relativava | 10%...93% (en ausencia de condensación) |
| Alojamiento batería | 2 x 12V/7,2Ah |
| Grado de protección | IP30 |
| Contenedor | Aluminio - Metal |
| Dimensiones (L x A x P) | 361 x 301 x 107mm |
| Peso (sin batería) | 2,7Kg |
| Certificación Central | EN 54-2: 1997+A1:2006 |
| Certificación Fuente de alimentación | EN 54-4: 1997+A2:2006 |
| Certificación Número de certificación | 0051-CPR-0444 |
| Certificación Ano del marcado CE | 15 |
| Certificación Número de la declaración de prestación | 015_TFA1-298 |
| Organismo de certificación | IMQ |

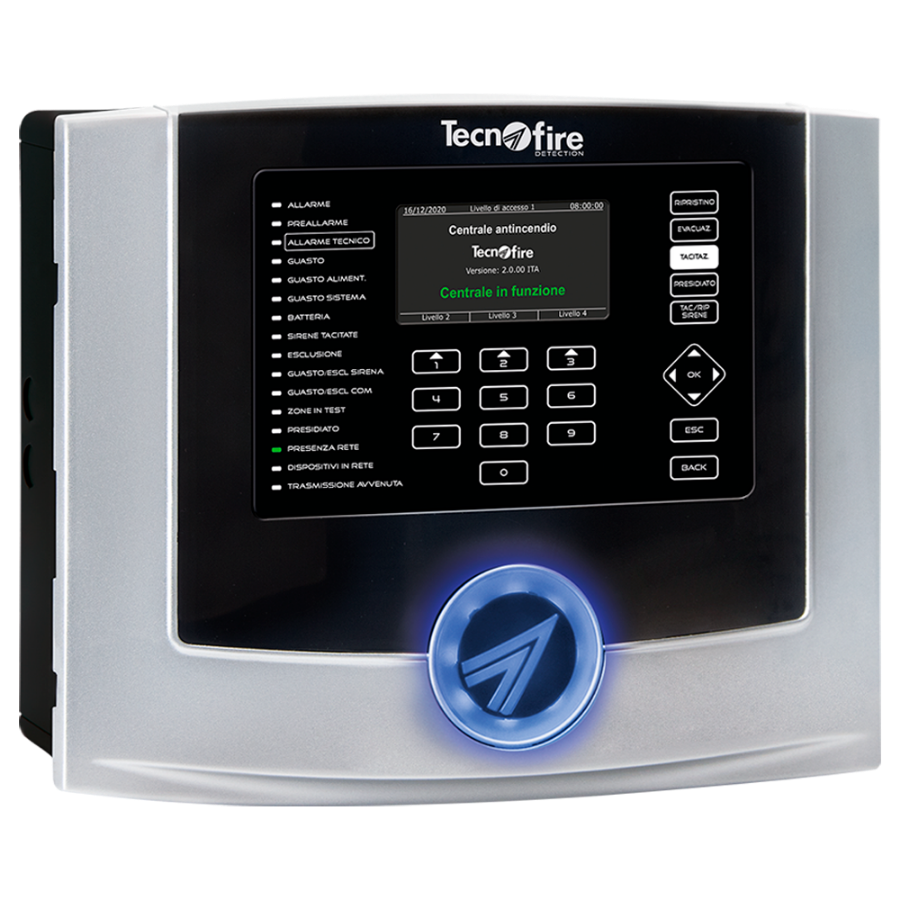

Addressable fire detection control panel, equipped with 1 detection loop, the loop can control 199 detectors and 99 modules, and has 1 serial bus RS485 for connecting expansion devices, up to 5 a choice of repeater panels and/or telecommunication devices.
Manages 150 fire or technical detection zones and 100 virtual detection zones, 50 alert plans, 8 time slots, 100 formulas and customizable or perpetual four-year calendar.
Advanced management with logic determined by the application of formulas, dynamically relating the functional states of the system devices.
Equipped with 3 specialized signaling outputs and 2 freely programmable signaling outputs.
User interface: color display of 4,3”, programming and management keyboard, 16 LED signaling, voice synthesis and multifunctional acoustic signal speaker.
USB port, serial printer and RSC®: programming, remote management and control.
2,7A Modular Switching Power Supply. Battery compartment: 2 x 12V - 7.2Ah. Aluminum and steel cabinet.
Central office according to EN 54-2: 1997+ A1: 2006 - EN 54-4: 1997+ A1:2002 + A2:2006.
Type approval certificate 0051-CPR - 0444.
System compatibility IN 54-13:2020.
