| Brand | Hikvision |
| Range | SOLUTIONS |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | 50 fps (2688x1520, 2560×1440, 1920×1080, 1280×720) [%VAR%] |
| Extra Stream rate | 25 fps (704×576, 640×480) |
| Third stream rate | 25 fps (1920×1080, 1280×720, 704×576, 640×480) [%VAR%] |
| Fourth Stream | 25 fps (704×576, 640×480) |
| Fifth Stream | 25 fps (704×576, 640×480) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Video output | Composite video output (for debugging only) |
| Lens | 8~32mm varifocal |
| Viewing Angle (FOV) | H: 42.5~14°, V: 23.4~8°, D: 49.7°~17° |
| Range performance | 150.~400 m (D), 59.7~158.7 m (O), 30.1~80 m (R), 15~40 m (I) |
| Minimum illumination | Colour: 0.0005 Lux @ (F1.2, AGC ON)Black and White: 0 Lux with Infrared |
| Infrared lighting | IR LEDs range 60 m |
| Shutter time | 1 s to 1/100,000 s |
| Day / Night | Removable mechanical ICR filter |
| Image improvements | WDR (140 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI (4 regions per each stream), Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detectionAvailable in all channels. |
| Smart Events | AcuSense DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Inbound Region, Outbound Region, Outbound Region |
| Multi-target detection | Supports simultaneous human body, face and vehicle detection and capture.Gets 7 facial features.Obtains 13 characteristics of the human body.Gets 2 vehicle characteristics.Supports counting of the num |
| Face Capture | Detects up to 120 faces simultaneously.Supports left and right rotation from -60° to 60°, up and down tilt from -30° to 30°.Capture images of faces in the background and foreground.Supports best shot |
| People count | Supports cross-line people counting.Counts and displays the count of people entering and exiting, with exportable data.The real-time count is displayed on the screen.Supports left and right rotation f |
| People count by region | Supports up to 8 detection regions, and independent arming and linking scheduling Supports 3 detection modes: detection of people density, detection of of people, detection of exceptions by waiting ti |
| Queue management | Supports up to 8 detection regions, and independent arming and linking scheduling.Supports 2 detection modes: queues of people by region and detection of waiting time.Generates reports to compare the |
| Heat map | A graphical description of the visits (calculating the number of people or the time spent) in a configured area. Two types of reports are available, spatial heat map and temporal heat map line graph. |
| Hull detection | Detects up to 30 human targets simultaneously.Supports up to 4 regions. |
| Absenteeism detection | Supports up to 8 detection regions, and independent arming and linking scheduling.Supports 2 detection modes: absence detection (absenteeism), detection of interruption or resumption of tasks.Supports |
| Alarms | 2 inputs / 2 outputs |
| Audio | 1 input / 1 output2 microphones / 1 integrated loudspeakers |
| Audio type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio bit rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |

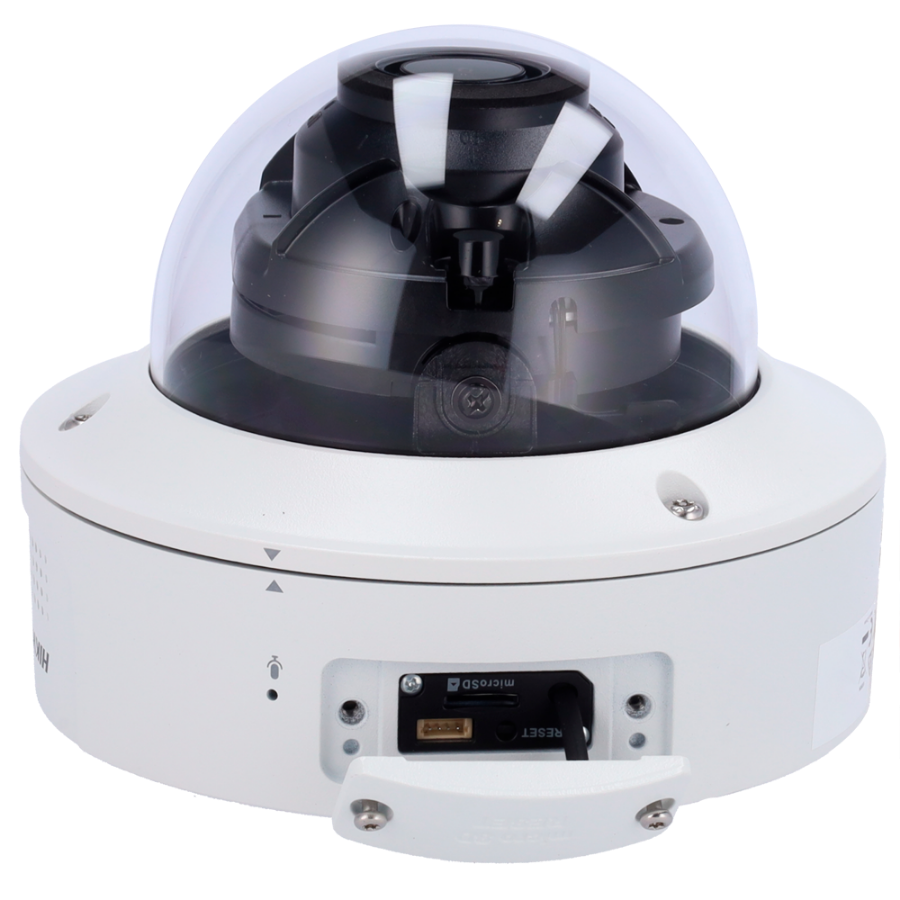

| Internal memory | Slot for micro SD card up to 1TB |
| Network interface | Ethernet 10/100/1000M BaseT |
| Communication | 1 x RS-485 (half duplex) |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T, M), ISAPI, SDK |
| Power | DC 12 V / 970 mA / 11.43 W max.PoE+ IEEE802.3at |
| Power supply output | DC 12 V / 100 mA |
| Degree of protection | Weatherproof IP67Anti-vandal IK10 |
| Corrosion protection | NEMA 4X (NEMA 250-2018) |
| Material | Metallic |
| Temp. operation | -30o C ~ +60o C |
| Dimensions | O 144.3 mm x 114.1 mm (H) |

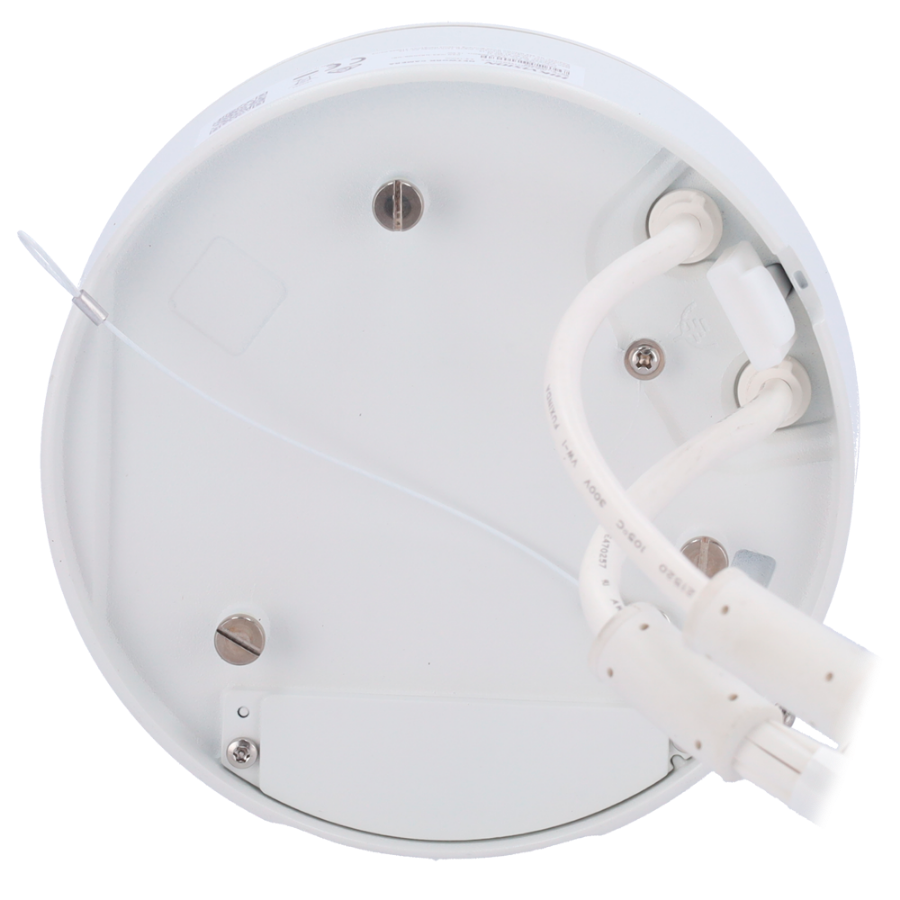

| Base dimensions | O base 144.3 mm / O entre tornillos 123.4 mm / 3 tornillos |
| Weight | 990 g |
