TF-TF9TFMIID120

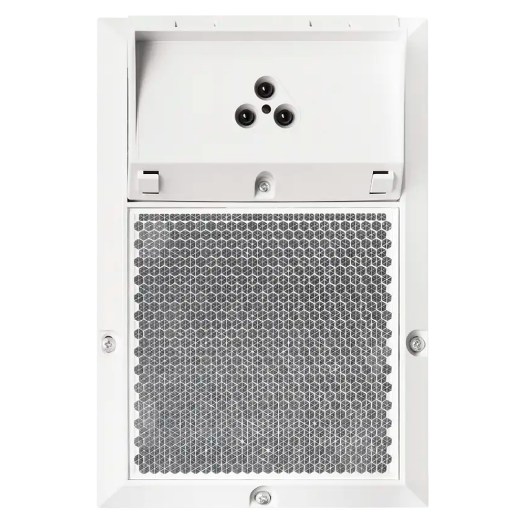

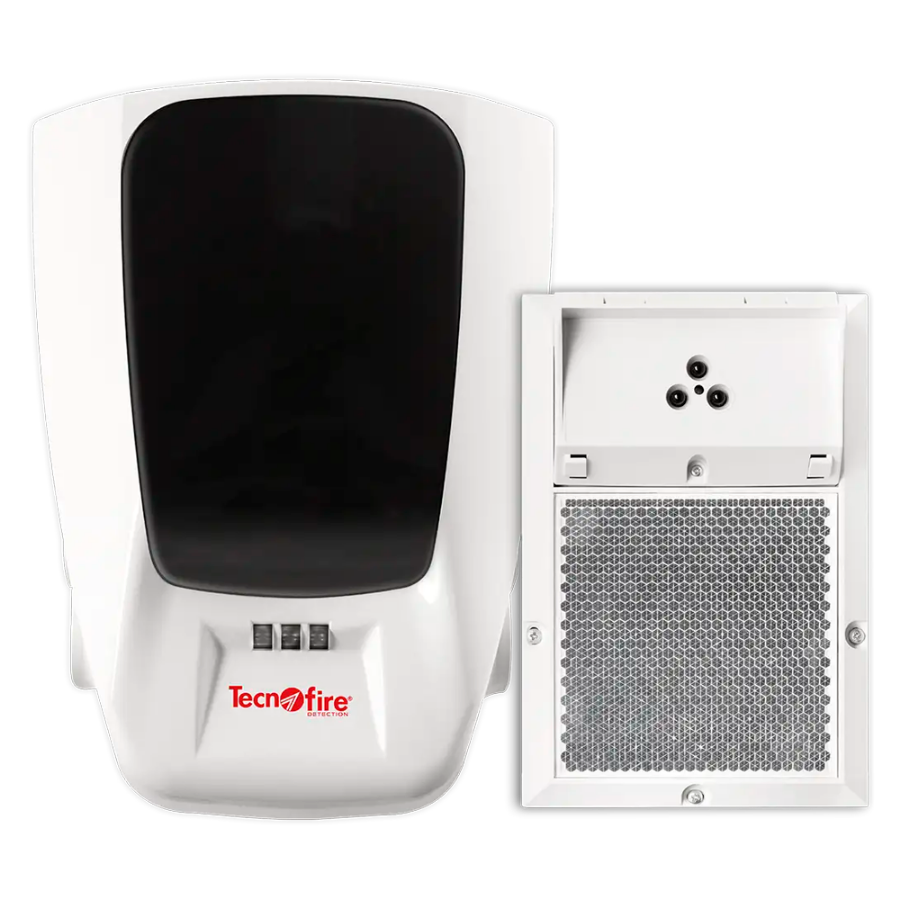

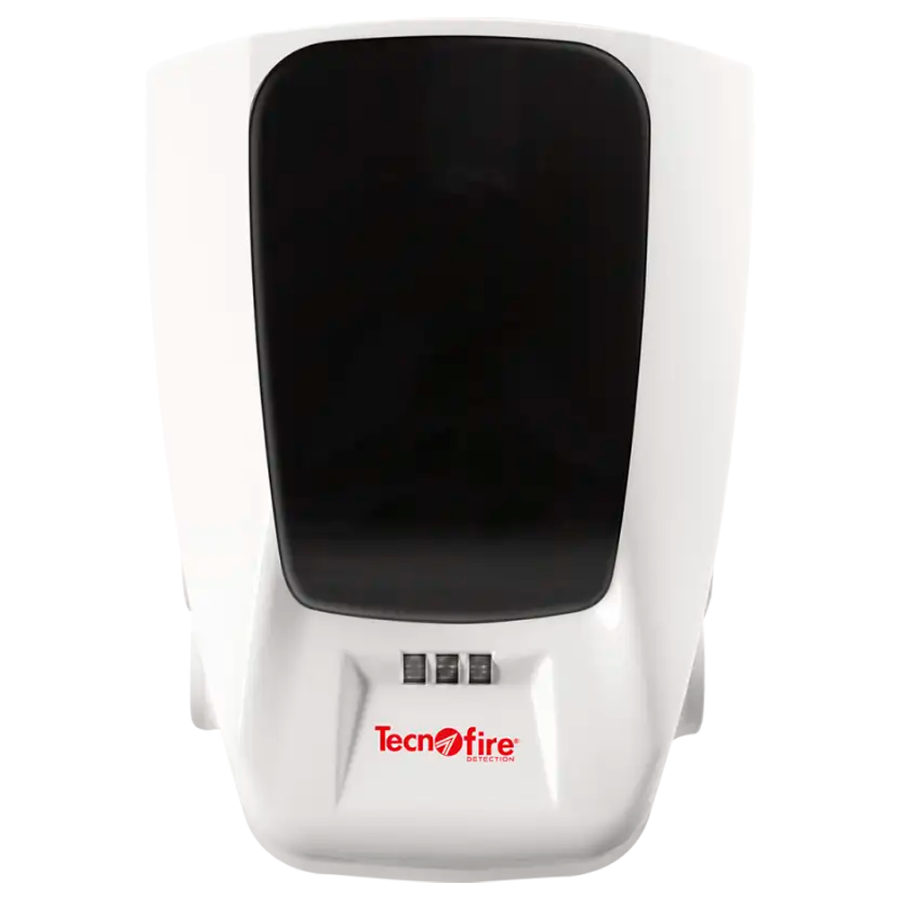

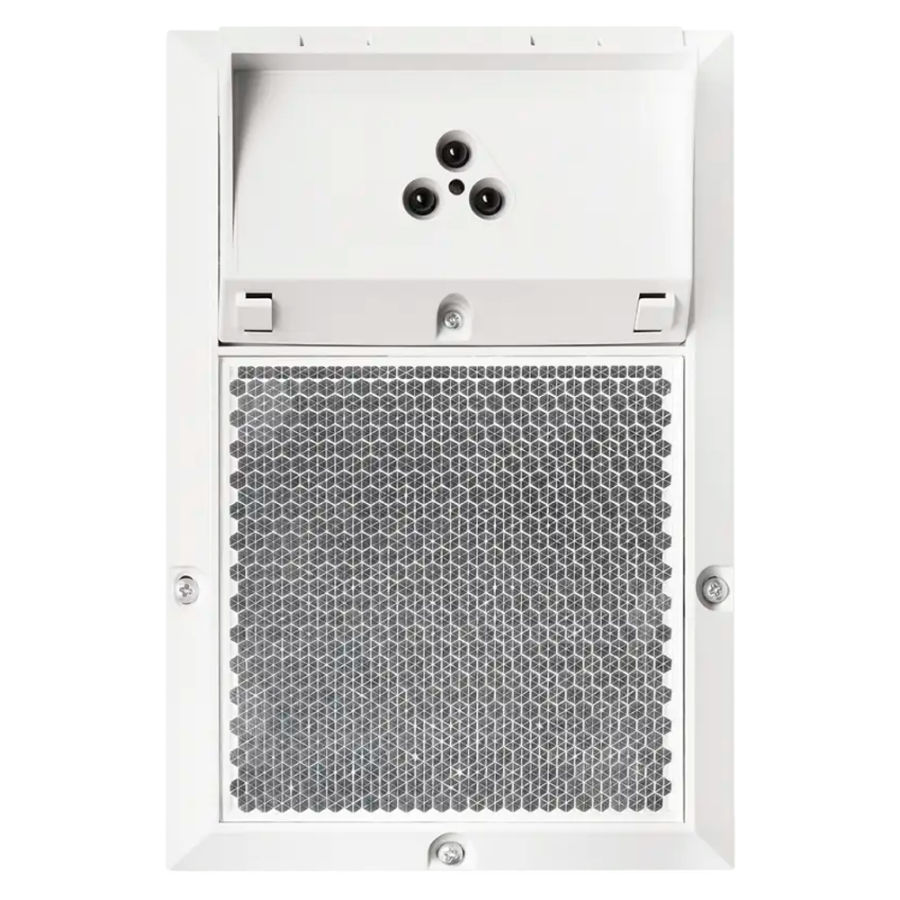

Addressable smoke detection system, linear optical retro-reflective type. Optical attenuation detection technology of the reflected infrared beam. The TFMIID-120 detector is equipped with an automatic optical alignment system OAS (Optical Alignment System). System composed of two devices, the detection and control unit, and the reflection and telemetry unit. Optical range of 8...50m, extendable to 120m with an optional additional TFMIID120-LRK retro-reflector. Automatic compensation of optical degradation due to dust deposits. Excellent tolerance to vibration-generated disturbances. High immunity to false alarms. Programmable functions: pre-alarm and alarm signaling thresholds, Alarm and Fault signaling delays. Advanced management with adaptive sensing logic, day/night mode, formula-driven, dynamically relating the functional states of system devices. Fully automatic alignment managed remotely, through the control panel menu, without intervention in the control and refl exion units. CSR® Management: programming, remote management and control. Loop connection. Double line isolator. Power supply: 24V DC sensing unit. EN 54-12:2015 - EN 54-17:2005. Certificate of homologation: 1293-CPR-0816.

• TECNOFIRE
• Linear optical detection system
• Analog Addressable
• Range from 8 to 50m
• Expandable to 120m with reflector TF9MIID120LRK
• Degree of protection IPX3x
• EN54-12 EN54-17
• Power 24VVDC
• Double insulator
