| Brand | Hikvision |
| Model | DS-KD8003-IME1(B)-NEUTRAL |
| Operating system | Linux |
| Image sensor | Low Illumination 2 Mpx IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | H: 146o, V: 82o, D: 180o |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Mechanical button with LED backlit name-tag |

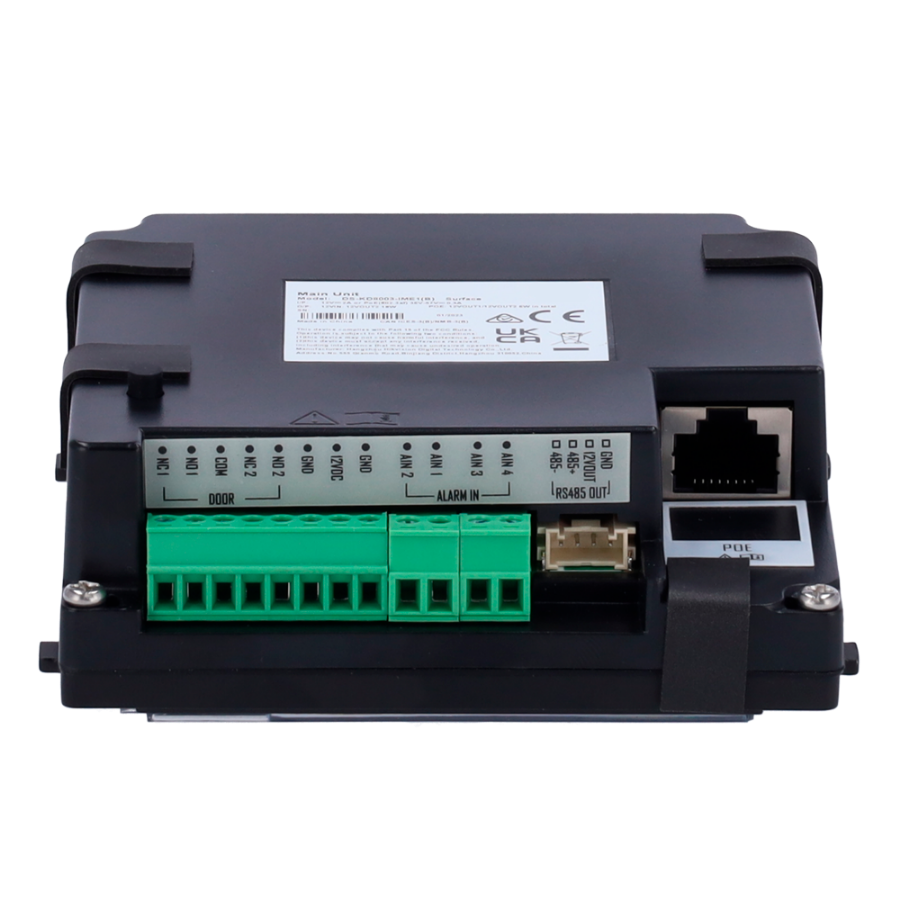

| Outputs | 2 x lock relay, 1 x module output, 1 x DC 12 V / 500 mA max. |
| Inputs | 4 x auxiliary inputs (output button, feedback, door sensor), 1 x tamper |
| Remote access | Software iVMS-4200Hik-Connect mobile application |
| Network interface | Ethernet 10/100 BaseT / SIP Protocol 2.0 |
| Modular | Compatible with Hikvision modular boards |
| Power | DC 12 V / 850 mA máx. / PoE (IEEE 802.3af) |
| Degree of protection | Suitable for exterior IP65 |
| Material | Plastic |
| Temp. operation | -40 oC ~ +60 oC |
| Dimensions | 98 (H) x 100 (W) x 42 (D) mm |
| Weight | 360 g |

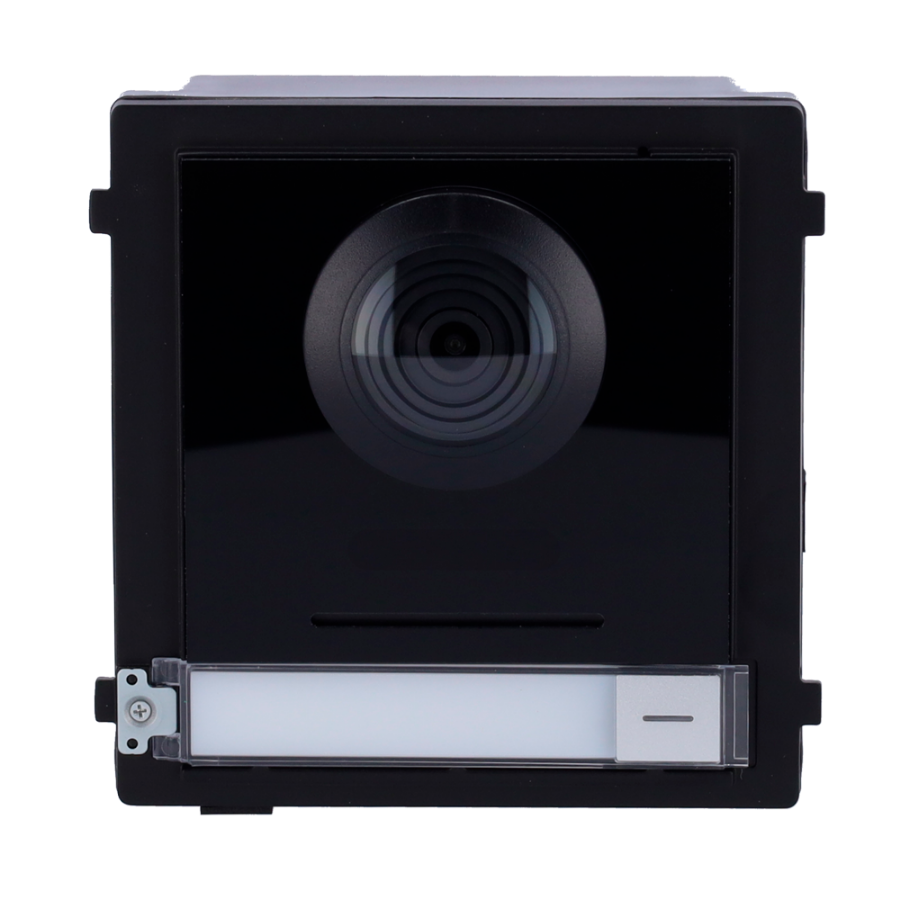

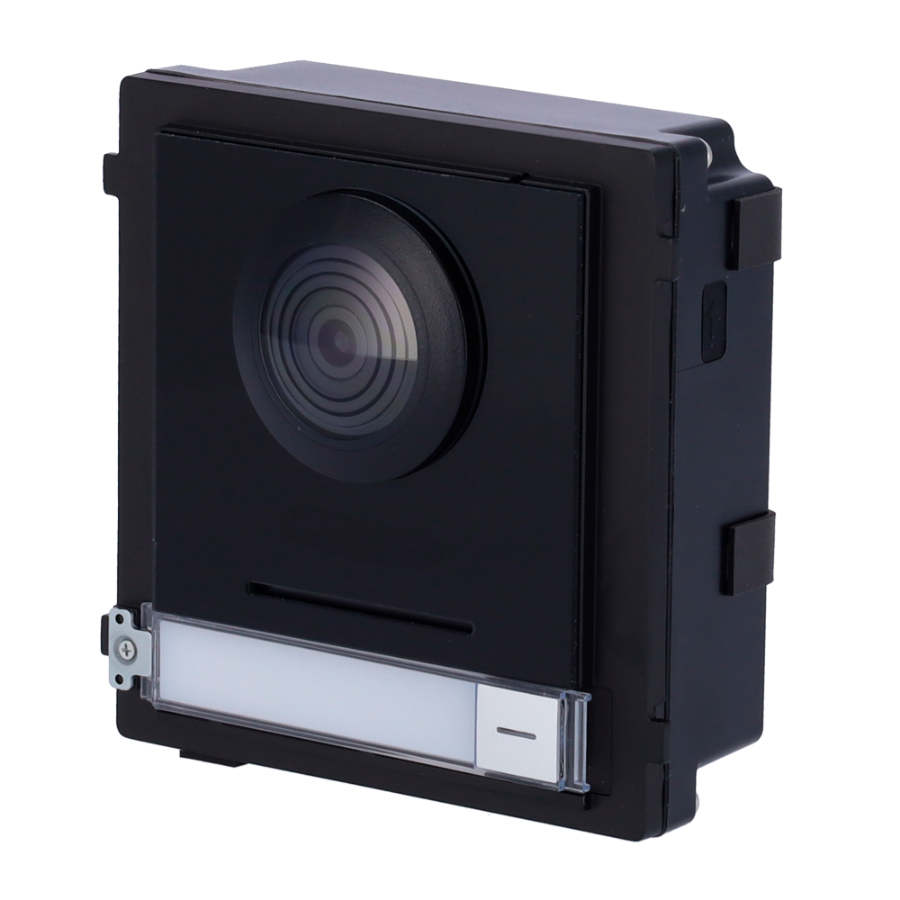

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE).
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors.
From the software iVMS-4200 you can link boards and monitors to make and receive calls, create contacts, send informative messages to monitors or review call logs.
With the Hik-Connect mobile application, the end user can receive calls, open the door or view the panel camera live, all from any location.
