| Brand | Streamax |
| Channels | 4 CH AHD and 1 CH IP |
| Power | 4 4 ports of [%VAR%] AHD camera pins1 6 port of [%VAR%] IP camera pinsM12 Connectors |
| Video compression format | Video: H.265 / H.264Audio: ADPCM,G.711U,G.711A |
| Display resolution | AHD: 1080p (1920 × 1080), 720p (1280 × 720), WD1 (928 × 576), WHD1 (928 × 288), WCIF (464 × 288), D1 (704 × 576), HD1 (704 × 288), CIF (352 × 288)IP: 1080p (1920 × 1080), 720p (1280 × 720) |
| Image quality | Levels 1–8 adjustable (preferably Level 1)) |
| Audio | 4 CH |
| Video output | Output: 1 x CVBS + 1xVGA |
| Artificial intelligence | Adding ST-CA29M (DSM) and ST-CA20S (ADAS) cameras |
| Display divisions | 1 / 4 / 9 |
| Recording method | Home/Manual/Programming/Alarm Event Logging |
| Alarm | Alarm pre-recording: 0-60 minPost-recording:: 0-30 min |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |

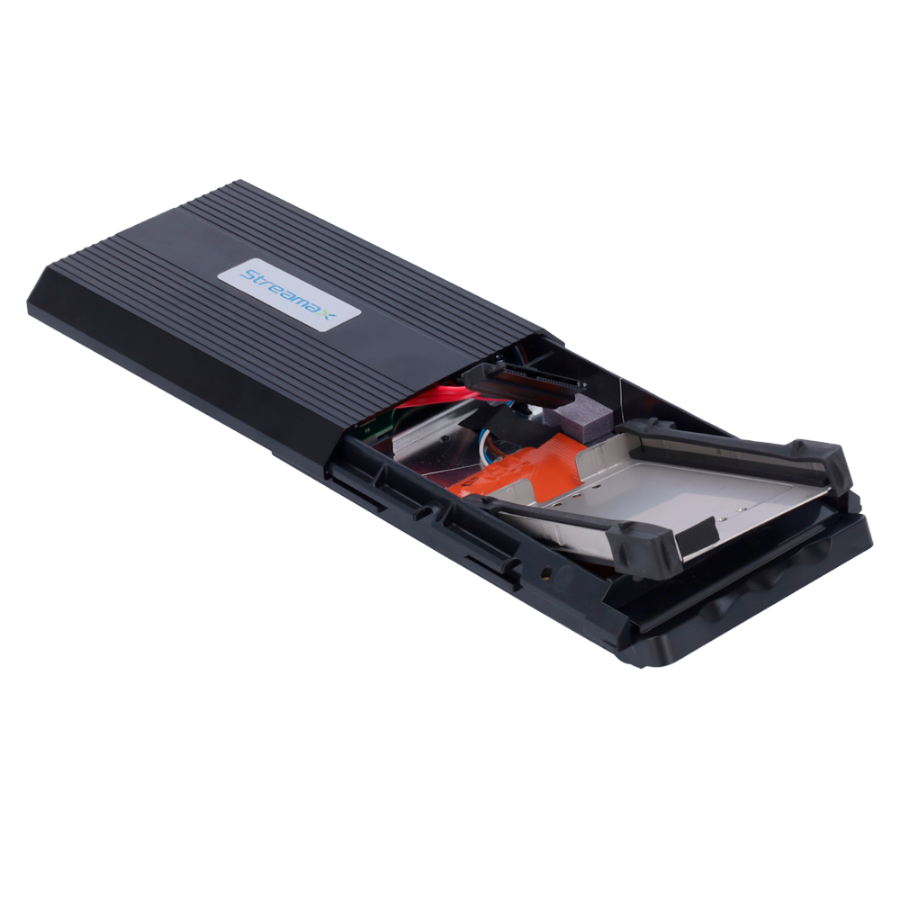

| Internal memory | 1 SATA 2.5" HDD or SSD up to 1TB |
| Communication | 3G/4G: EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTEWiFi |
| Ports | 1 x SIM Slot2 x RS2322 x RS4851 x CAN1 x MIC |
| Alarms | 8 Inputs and 2 Outputs |
| Display compatible | ST-DISPLAY-CP4, ST-DISPLAY-CP5 |
| GPS | Positioning, speed detection and time synchronization |
| Power | Input DC 8-36V , Output 5V@500 mA |
| Energy consumption | 50 W |
| Temp. Functioning | 40°C~70°C |
| Dimensions / weight | 92.8 (H) x 167 (W) x 281 (D) mm / 2.4 Kg (with hard disk) |
