| Range | 1080p ECO |
| Image sensor | 1/2.7" Brigates© 2.0 Megapixel (BG0806) |
| DSP associated with the sensor | V30 |
| Video output | HD 1080p (1920x1080) at 25 FPS / CVBS 960H (test) |

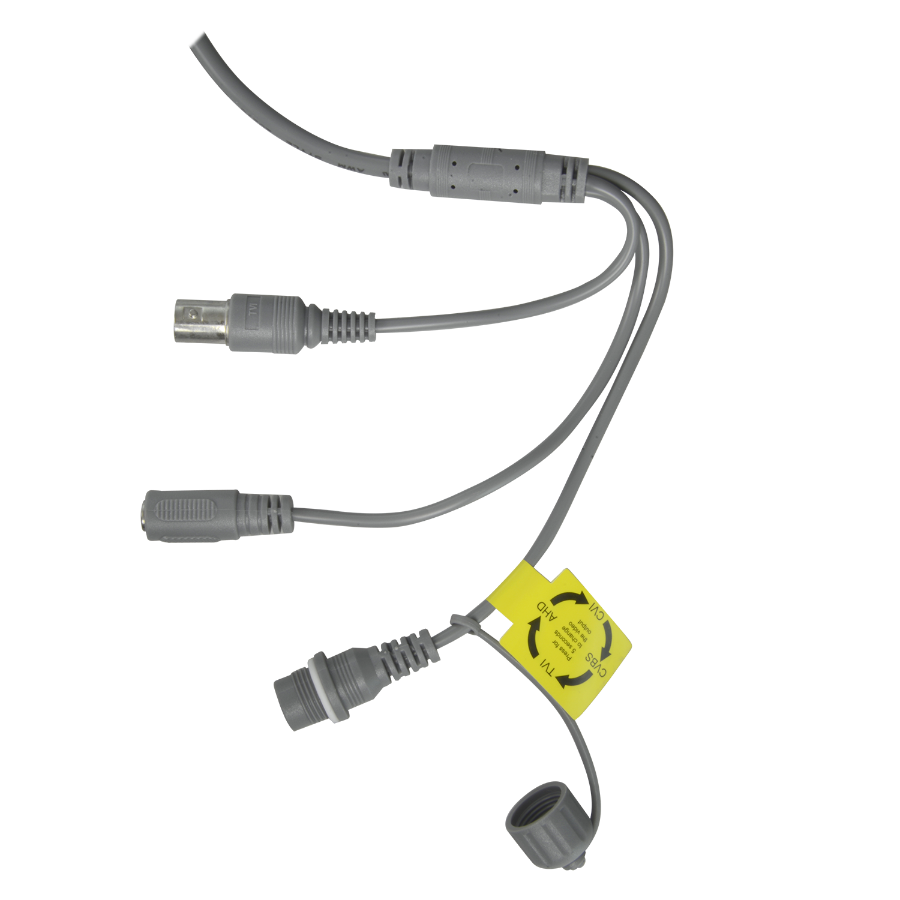

| Video output | 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS |
| Minimum illumination | 0 Lux / SMD LEDs IR(20 m) |

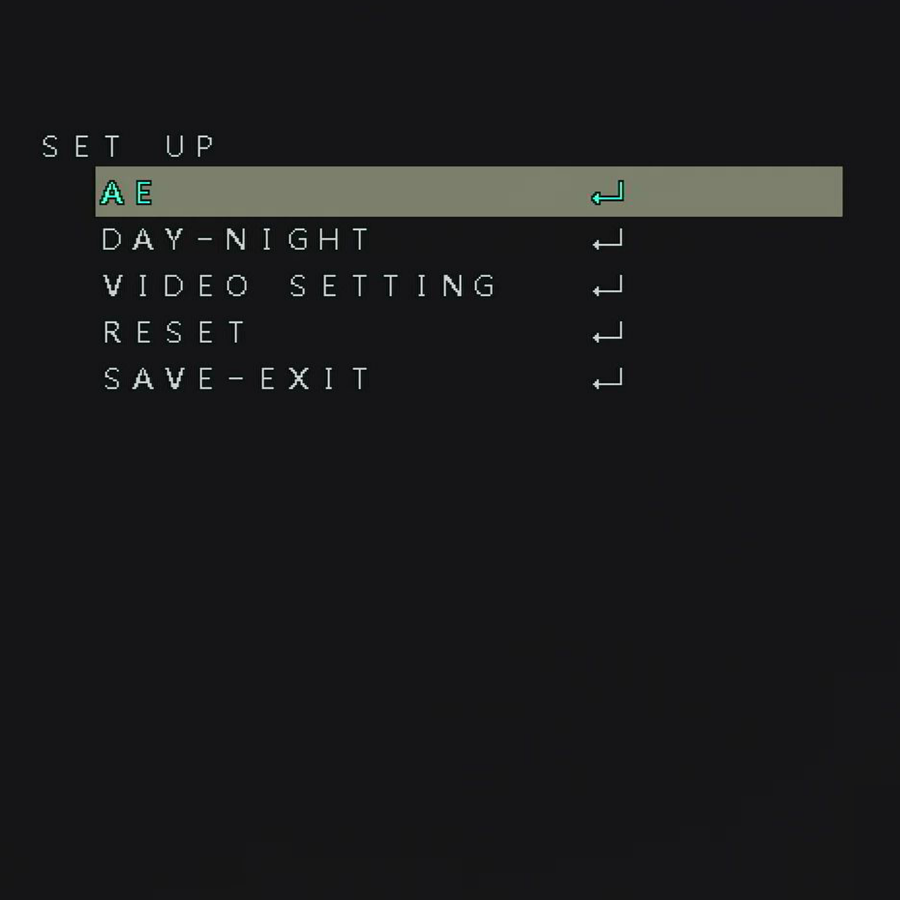

| Basic functions | OSD menu, Day/Night with IR-CUT (ICR) |
| Configurable OSD functions | DWDR, 2D-NR, AE, AWB, AGC |
| Lens | 3.6 mm (D: 79o) |
| Power | DC 12 V / 450 mA max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10o C ~ +50o C |
| Dimensions | 170 (D) x 58 (O) mm |
| Weight | 310 g |
