| Brand | Streamax |
| Camera type | IP |
| Image sensor | 1/2.8" Progressive Scan CMOS sensor |
| Resolution | 1080p (1920x1080) |
| Lens | 4 mm |
| Minimum illumination | 0.05Lux (color) |
| Lens Adjustment | HFOV: 42o, VFOV: 24o |
| Electronic Shutter | Auto |
| Image improvements | 3D-DNR, AGC, BLC, DWDR, AWB |
| Exposure Mode | Auto |
| Audio | Does not have |
| Smart Features | Does not have |

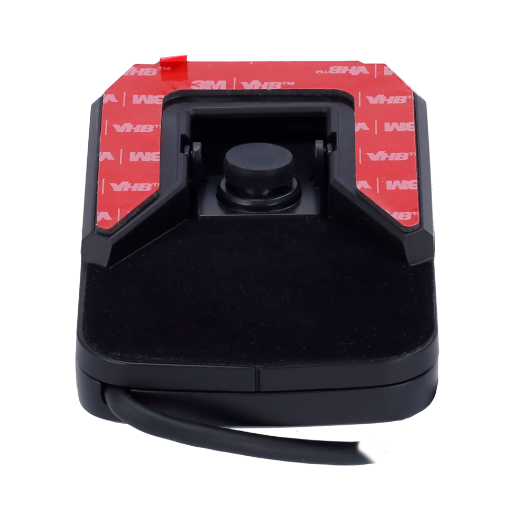

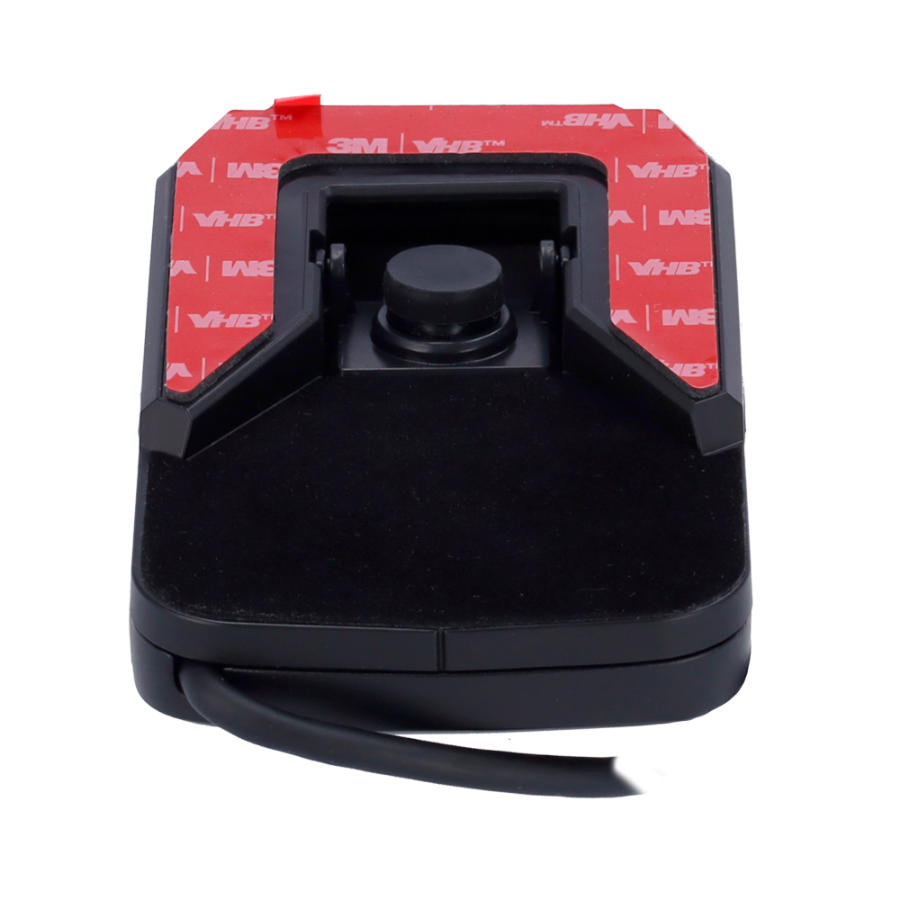

| Installation | On the front window of the vehicle |
| Power | DC 12 V, 90 mA |

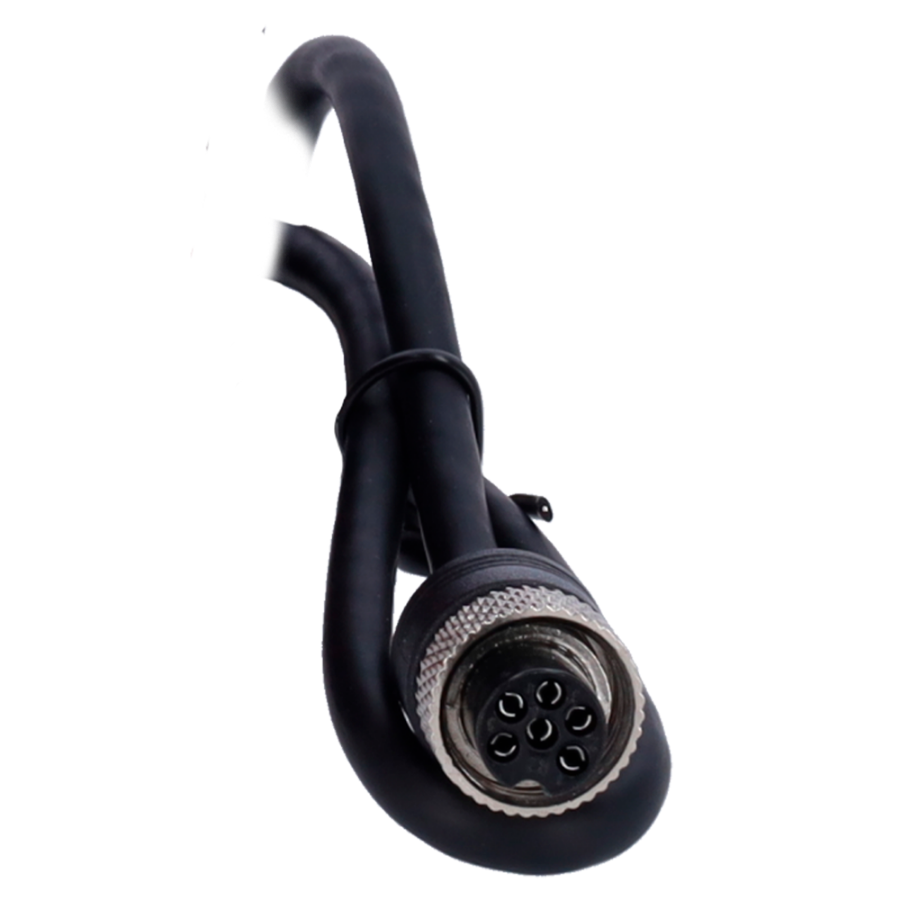

| Connector type | M12 6pines |
| Temp. operation | -40o C ~ +70o C |
| Dimensions | 39 (D) ×54.5 (W) × 87 (H) mm |
| Weight | 100g |
