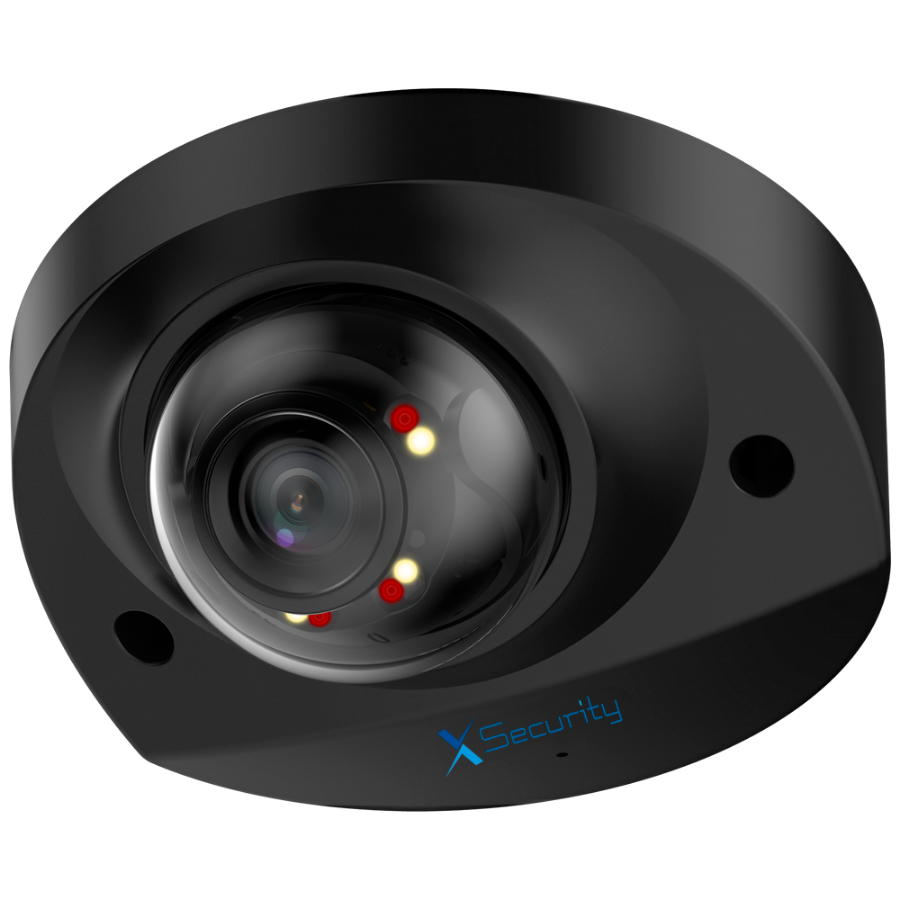

| Brand | X-Security |
| Image sensor | 1/2.9” CMOS image sensor |
| Maximum resolution | 4 Megapixel (2688 × 1520) |
| Lens | 2.8 mm (H: 102°; V: 54°; D: 121°) |
| Main Stream rate | 2688×1520@(1–20 fps) / 2560×1440@(1–25/30 fps) |
| Extra Stream rate | 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.006 lux@F1.6 (Colour, 30 IRE)0.0006 lux@F1.6 (B/W, 30 IRE)0 lux (Illuminator on) |
| Dual Light | Detection modes:Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target)IR mode |
| Range performance | 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I) |
| Video Bit Rate | H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Network interface | Ethernet 10/100M BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| External storage | 256 GB microSD card slot |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF (Profile S/Profile G); .CGI; P2P |
| Power | DC 12 V / 2.5 W, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Material | Metallic |
| Lens Adjustment | 3 Axis |
| Colour | White |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Dimensions | 55 (D) x 108.9 (O) mm |
| Weight | 410 g |
| Color | Black |
