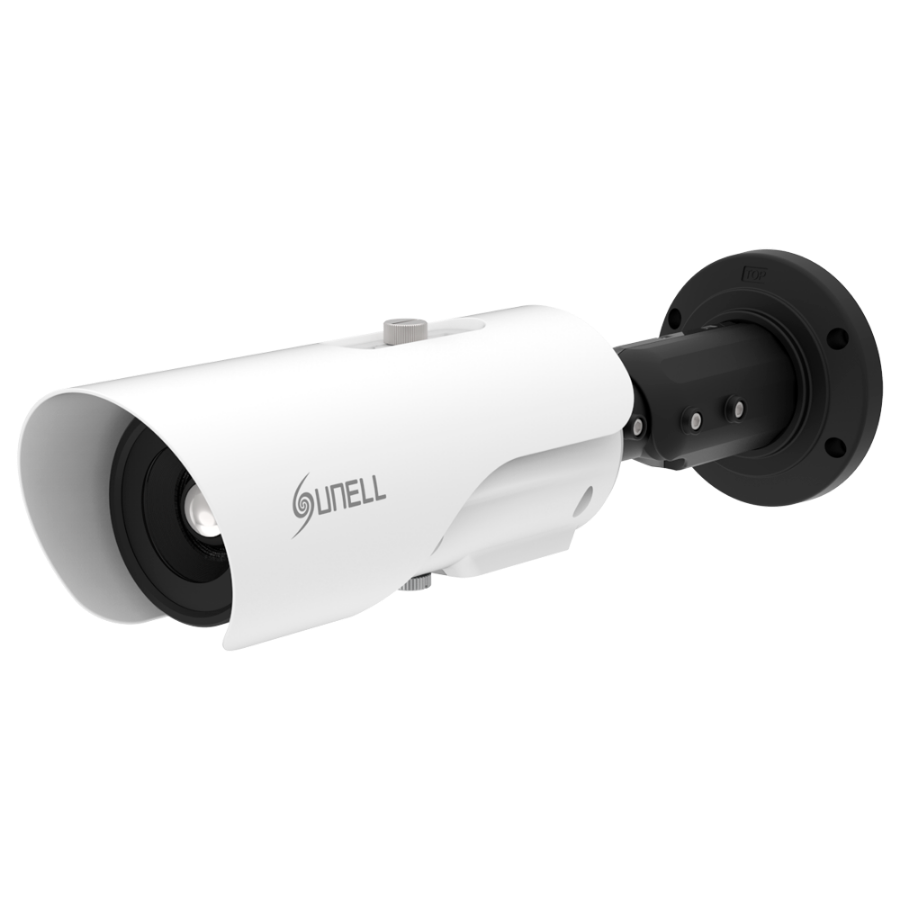

| Brand | Sunell |
| Thermal sensor | 400x300 VOx |
| Main Stream rate | D1 (25fps) |
| Extra Stream rate | VAT NUMBER (25fps) |
| Compression | H.265 / H.264 / MJPEG |
| Pixel Size | 17um |
| Lens | 35 mm |
| Viewing angle | 11o x 9o |
| Focus | Manual |
| Thermal sensitivity | ?40mK |
| Spectral range | 8~14um |
| Pallets | Up to 17 modes (Hot Red, Hot Black, Rainbow, etc) |
| Intelligent functions | Temperature Detection & Alarm, Human Detection and Vehicle Detection |
| Range of Detectable Temperatures | -40oC to 150oC ( from -4 oF to 302oF) |
| Temperature Accuracy | ± 2oC / ±2% |
| Temperature measurement | Supports 3 rule types (Point, Area and Line) |
| Audio | 1 In / 1 Out line level 600 ohm |
| Alarm | 2 In / 2 Out |
| Internal memory | Micro SD card up to 128GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF & Private Protocol |
| Power | 12VDC / 5W, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Degree of protection | Weatherproof IP66 |
| Material | Metallic |
| Dimensions | 388 mm (D) x 110 (O) mm |
| Weight | 1800 g |
| Certificates | NDAA / CE / FCC |
