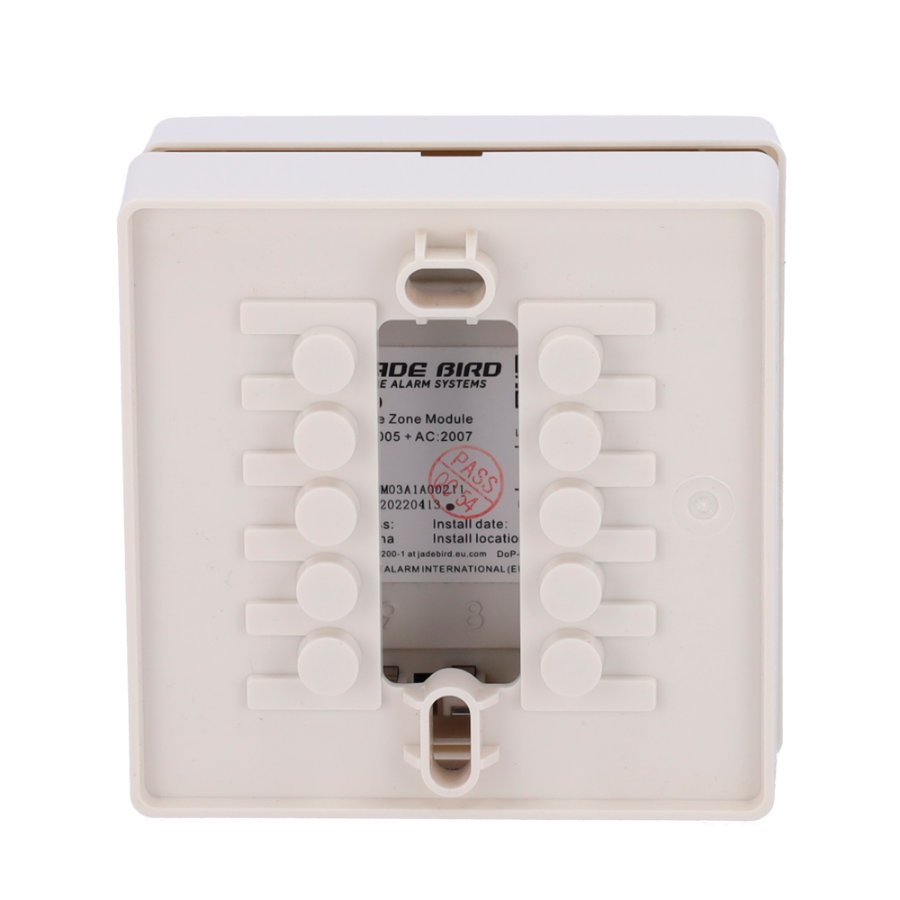

| Brand | Jade Bird |

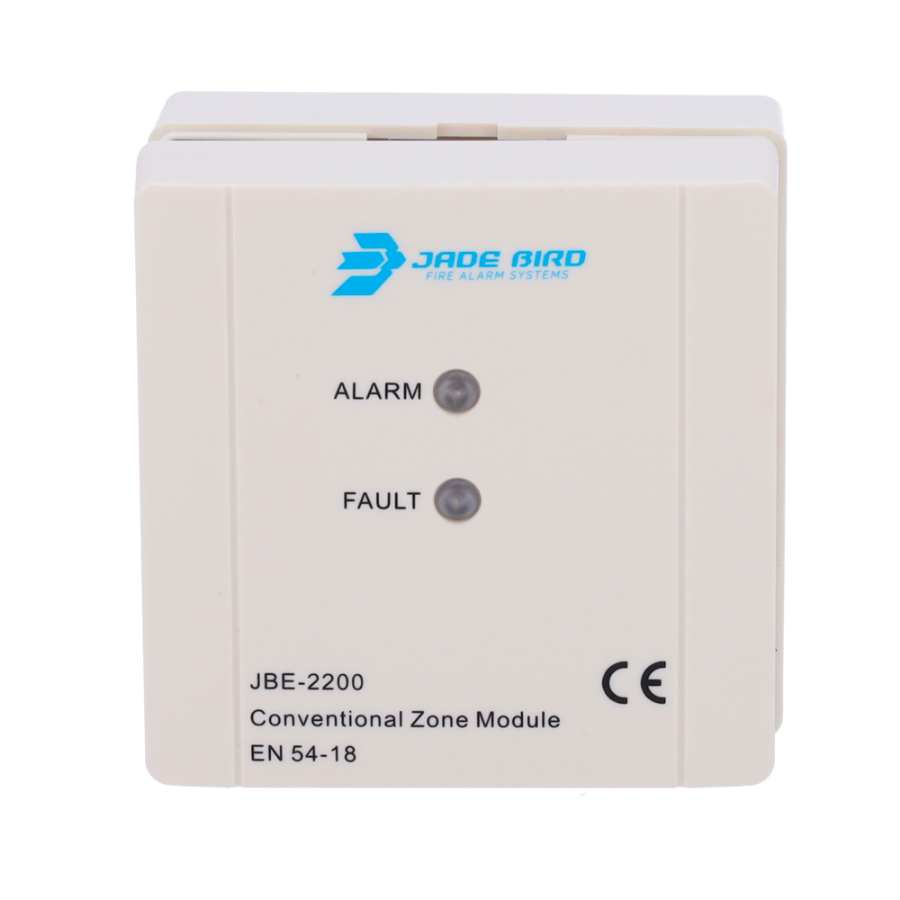

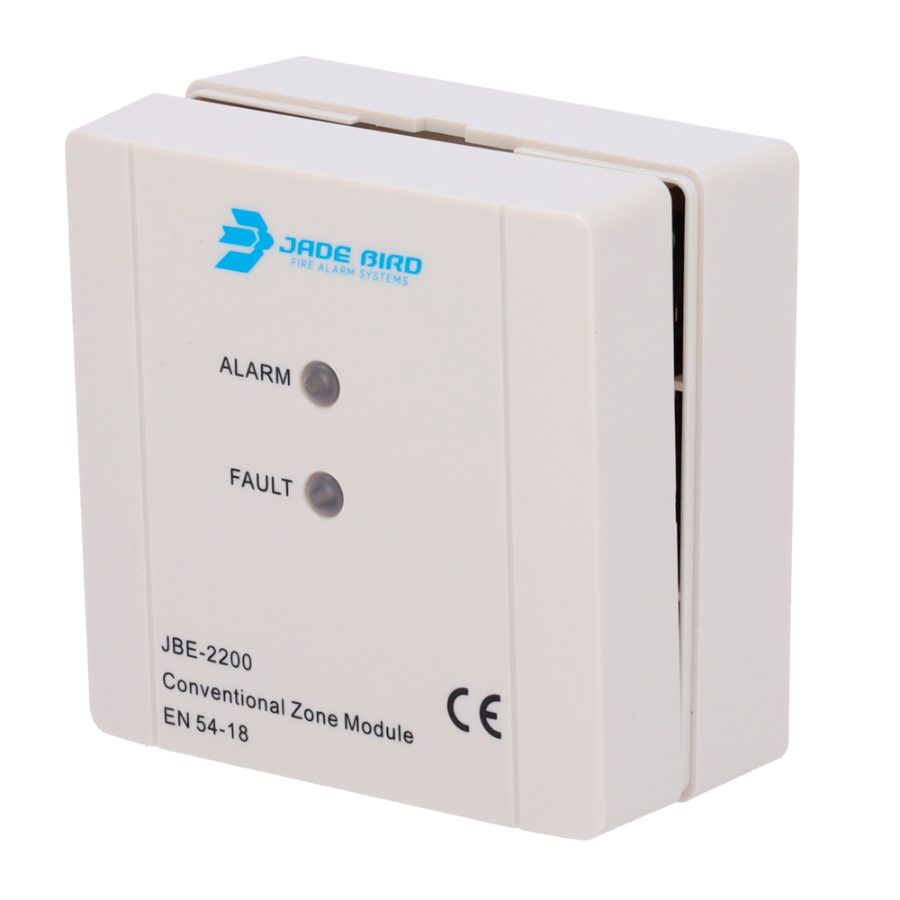

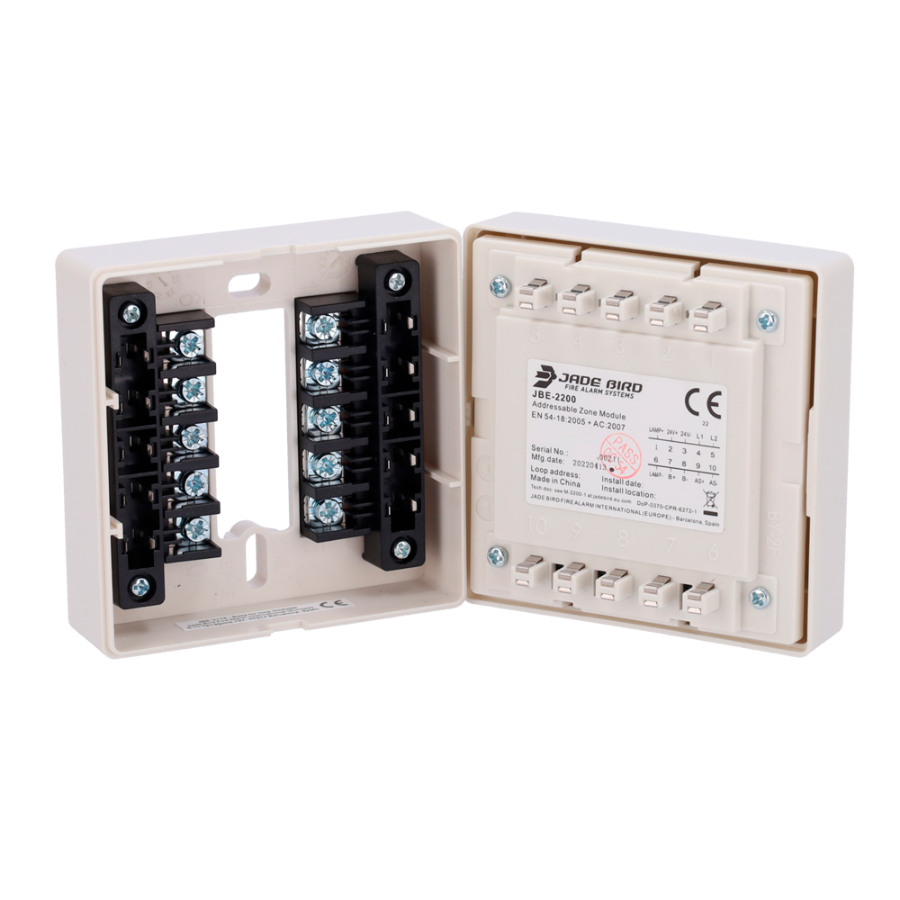

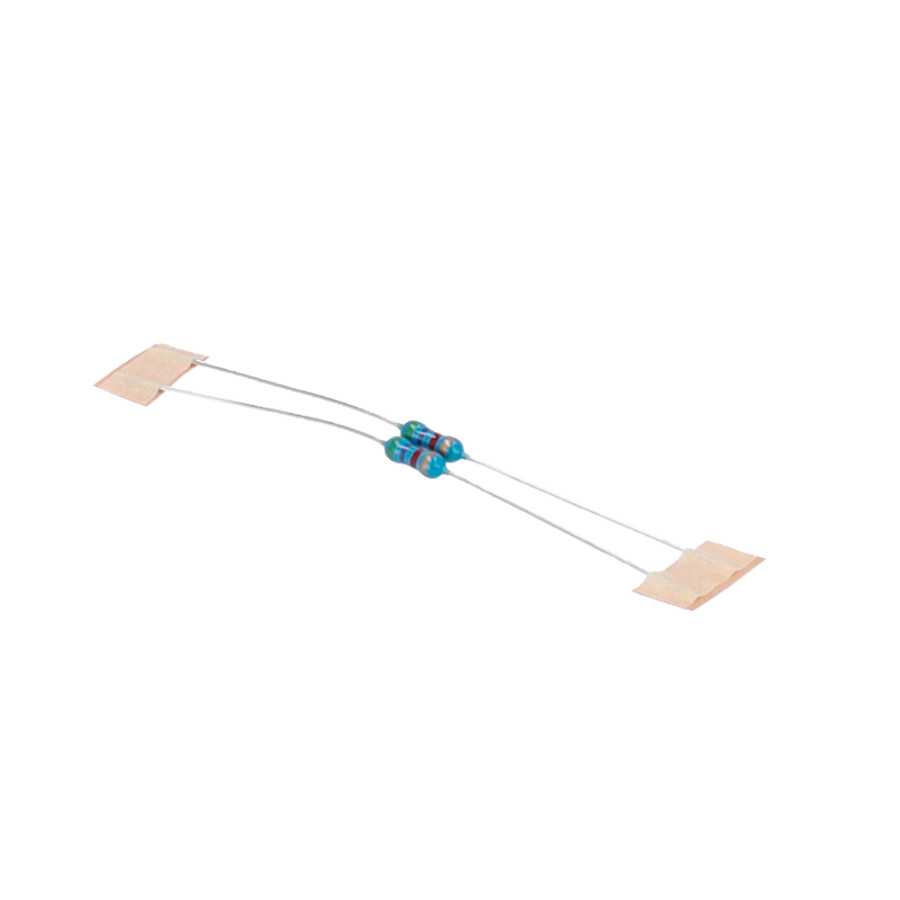

| Type | Conventional zone module |
| Operating voltage | DC 19 - 30 V |
| Connection | JBE communication bus 2-hilos, without polarityPower supply 24V DC to 2-hilos, no polarity |
| Wired | Twisted pair without braid 0.5 - 2.5 mm2 |
| Power consumption from the Loop | ?9 mA @24 V (Loop Consumption - Rest)?46 mA @24 V (Loop Consumption - Active ) |
| Power consumption with 24VDC | ?2 mA @24 V (Loop Consumption)?8 mA @24 V (Consumption of 24 V DC - Rest)?42 mA @24 V (Consumption of 24 V DC - Active) |
| REOL zone | 4.7 k? |
| REOL external PSU | 4.7 k? |
| Temp. of work | -10? ~ +55? |
| Temp. storage | -20? ~ +60? |
| ENVIRONMENT | ? 95% HR (40±2?) (no condensation or icing) |
| Address | Addressing tool JBE-AT1 |
| Address range | 1-200 |
| Led indicator Red (ALARM) | Rest: Flashing with loop pollingAlarm: Steady on when activated |
| Led indicator Orange (FAULT) | Open: Fixed ignitionLow Voltage: Blinks 1 once per secondShort circuit: Blinks 2 times per secondOverconsumption: Continuous flickeringReset: Flashes during reset (3 seconds) |
| Dimensions | 85×85x41 mm (length x width x height) |
| Weight | 0.1 kg (including base) |
| IP Rating | IP40 |
| Remote indicator | LED with or without series resistor (Rs <4 kOhm) |
| Certificado | EN 54-18:2005EN 54-18:2005/AC:2007 |
