| Power | 60W |
| Power tolerance (W) | ±3% |
| Cells | 156 monocrystalline |
| Short circuit current | 3.66A |
| Open circuit voltage | 21.24V |
| Efficiency | 21.6% |
| Glass thickness | 3.2mm |
| Maximum load capacity | 60m/s (5Kg/sg.m) |
| Maximum hail load | 23m/s, 7.53g |
| Temperature range | -20oC ~ 85oC |
| Module dimensions | 680 (W) x 510 (H) x 35 (D) mm |
| Weight | 13.65 Kg (with battery) |
| Degree of protection | IP67 |
| Maximum diameter of pole/pole (not included) | 105mm |
| Material | Lithium LiFePo4 |
| Capacity | 256Wh (20Ah) |
| Regulator | Integrated MPPT |
| Cycles | >2000 |
| Solar input voltage | 18V |
| Solar charging voltage | 9V-12.6V |
| Output voltage | 12VDC |
| Maximum charge current | 10A |
| Operating temperature | Charge: 0 °C to 65 °C (32 °F to 140 °F)Discharge: 0 °C to 65 °C (32 °F to 140 °F) |
| Maximum output power | 40W |
| Maximum input power | 100W |
| Dimensions | 205 (W) x 40 (H) x 100 (D) mm |
| Communication | RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption |
SAFIRE's autonomous power supply systems are the best solution for CCTV in off-grid environments, such as construction site surveillance, photovoltaic parks or any type of installation.

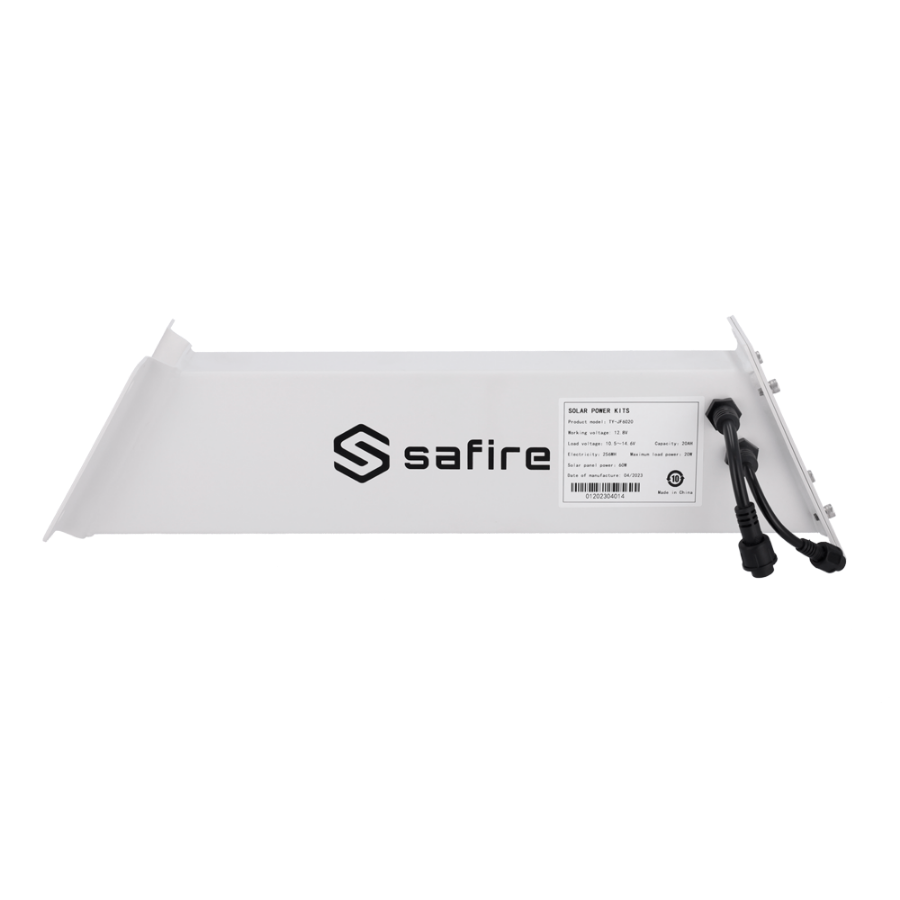

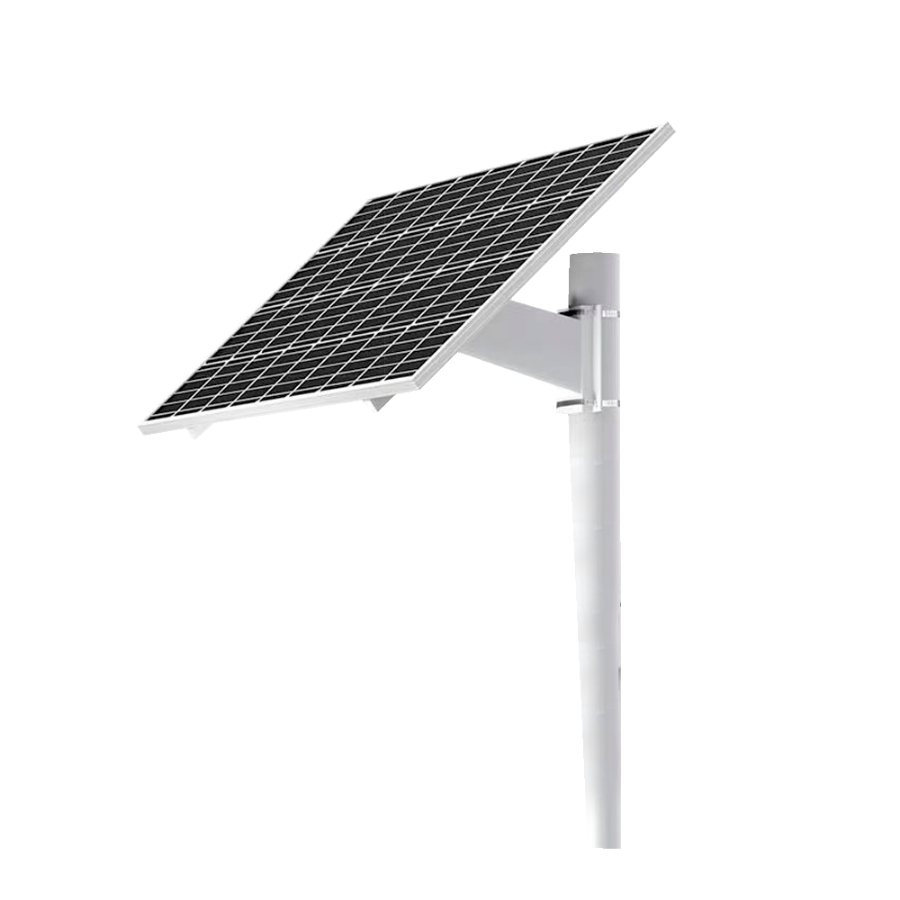

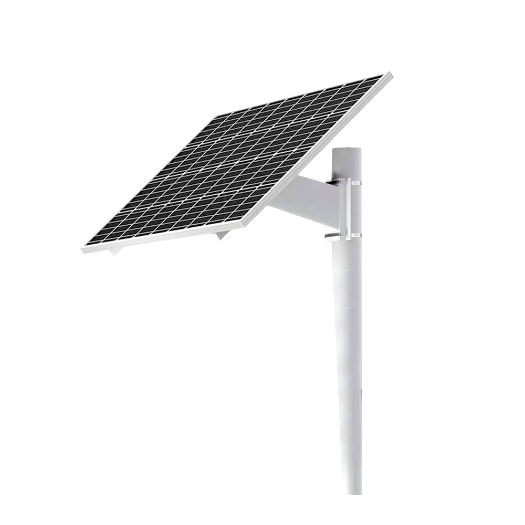

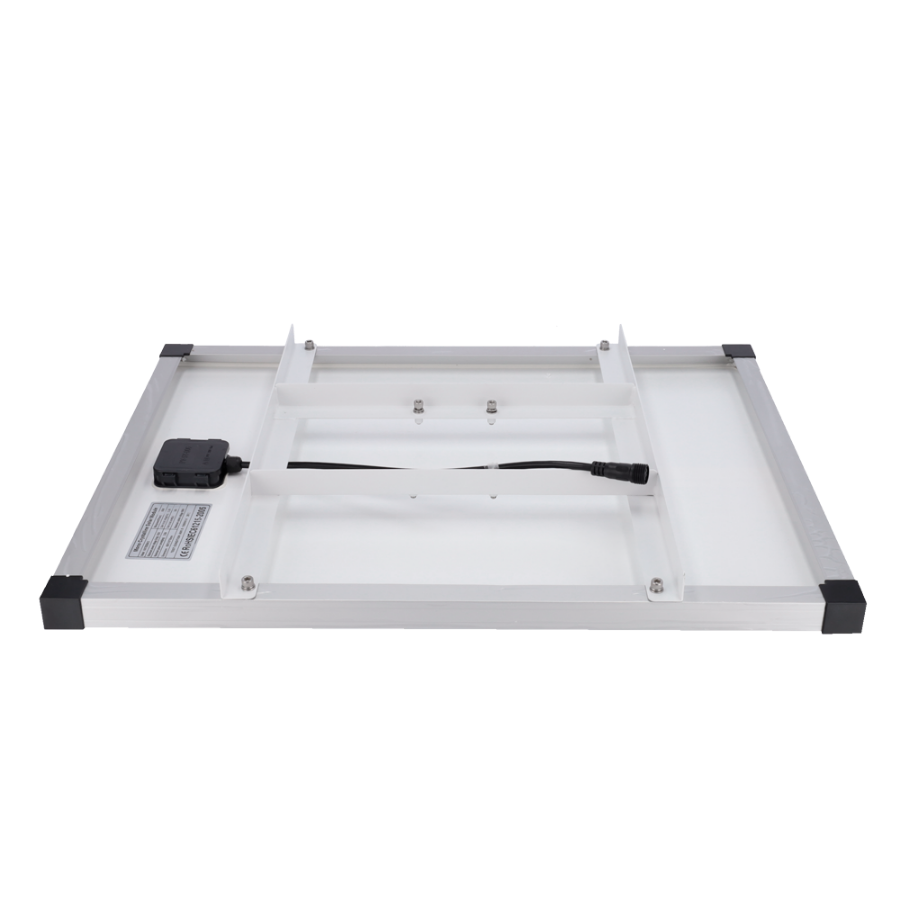

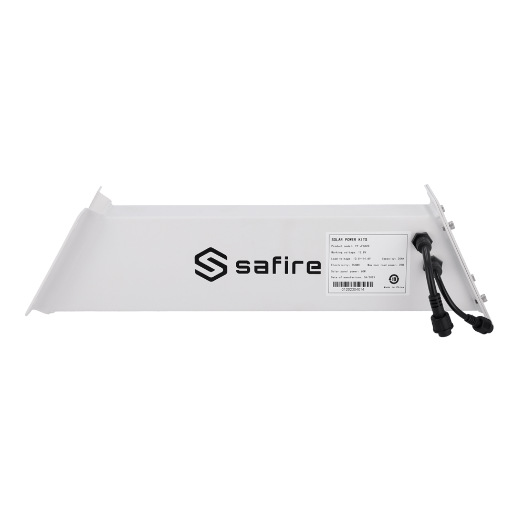

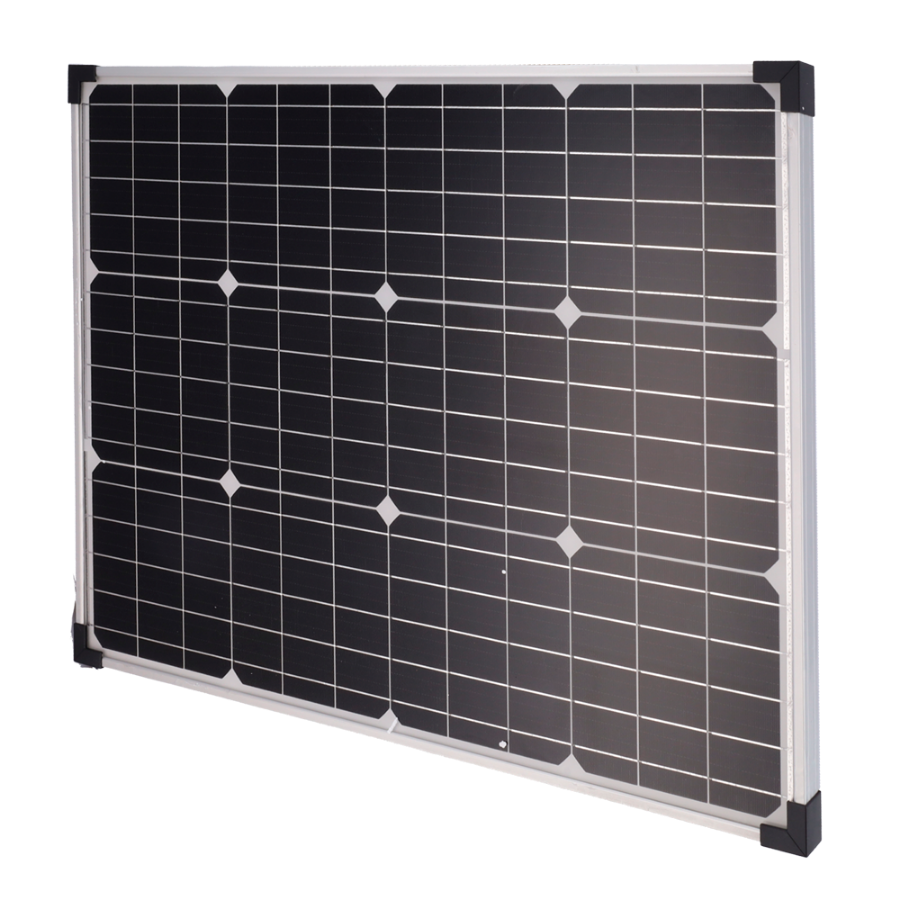

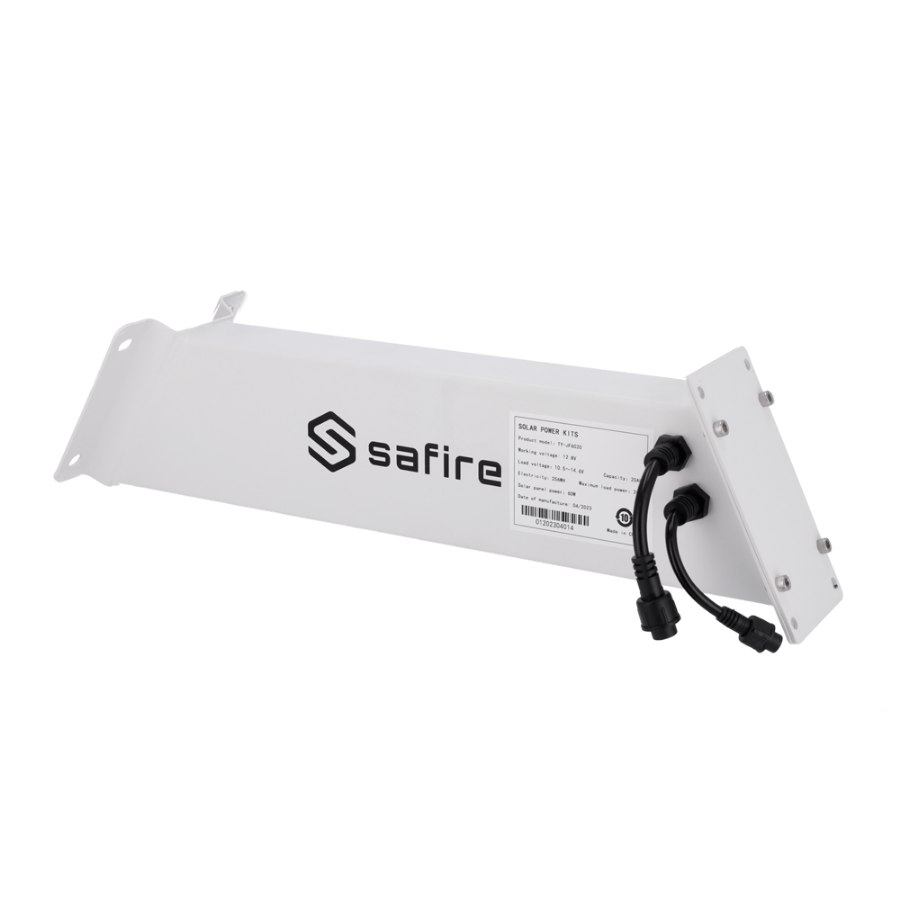

These all-in-one kits consist of solar panel, lithium battery with integrated MPPT regulator (to optimize the power of the solar panel) and bracket for installation on a mast. This makes installation simple and construction time short. Communication with third parties via RS485 protocol is also possible.
They are available in a wide range of capacities (from 256Wh to 2560Wh) to serve different energy needs, depending on the equipment located and the location of the installation.
