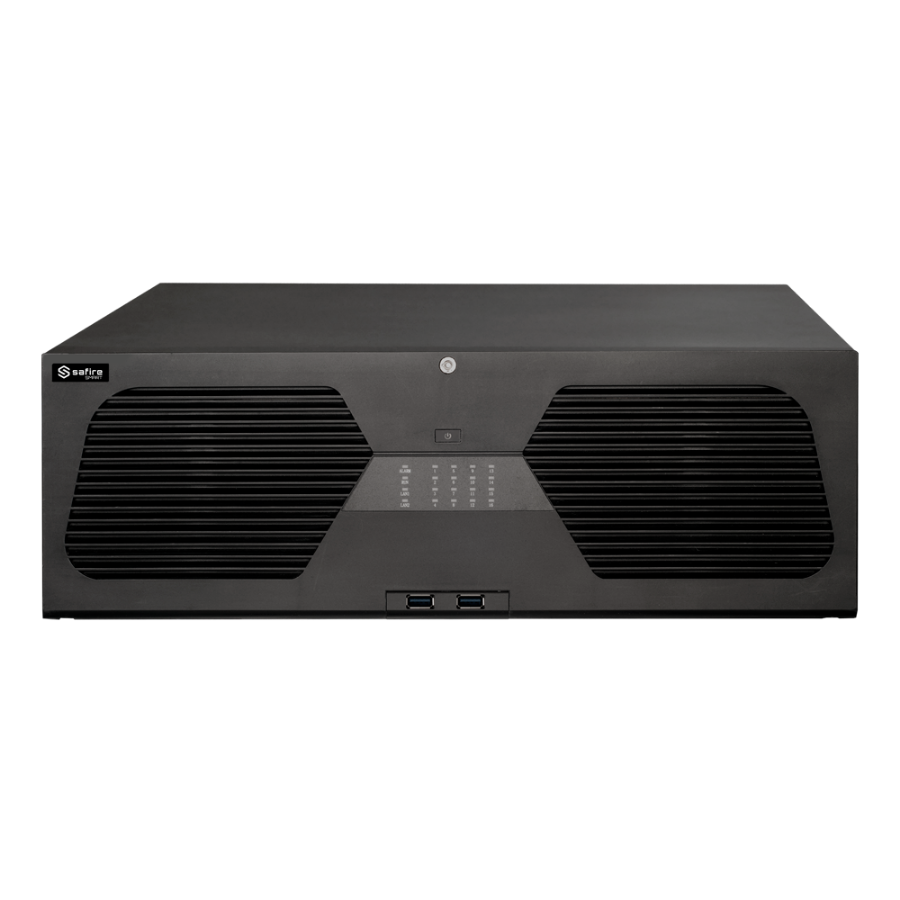

| Brand | Safire Smart |
| Range | A3 |
| Inputs for IP cameras | 128 CH IP |
| IP compatible cameras | Safire Smart (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Main stream recording | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
| Decoding capacity | 1CH 16Mpx @ 30FPS4CH 12Mpx @ 30FPS |
| Video compression format | H.265S / H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711(U/A) |
| Total bandwidth | 768 Mbps downstream / 768 Mbps upstream |
| Video outputs | 1 HDMI 8K, 2 HDMI 4K, 1 HDMI FullHD / 1 VGA |
| Display resolution | HDMI1 : 7680x4320@60/30, 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768HDMI2 : 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768HDMI3 : 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768HDMI4 : 1920x1080, |
| Yesmultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Multi-Screen | Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 / 64 (Live View)Auxiliary output 1: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 (Live View)Auxiliary output 2: 1 / 4 / 6 / 8 / 9 / 13 / 16 (Live |
| Recording method | Manual, programmed, motion detection, smart events, alarm input, POS |
| POS Function | Si |
| Perimeter Protection | Need to use Safire Smart 4I1 or 8I2 camerasArtificial Intelligence based on the classification of humans, vehicles and two-wheeled vehicles on:- Area intrusion- Line crossover- Region entry- Exit regi |
| Facial Recognition | Face detection with Safire Smart cameras 4I1 or 8I2 up to 64CH (All channels)Face detection by the NVR itself with any camera up to 4CHFacial recognition up to 16CH maxComputation of up to 18 images / |
| Video metadata | With Safire Smart cameras 4I1 or 8I2 up to 64CH (All channels)By the NVR itself with any camera up to 8CHHuman and vehicle feature extractionFor humans: Can extract up to 13 features (glasses, color o |
| License plate recognition | Yes (Safire Smart license plate camera required) |
| Dewarping | Supports Fisheye camera dewarping |
| Alarms | 16 Inputs / 4 Outputs |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 8x 3.5" HDD SATA3.0 up to 10 TB (not included) |
| RAID | RAID0, RAID1, RAID5, RAID6 and RAID10 |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, Safire Smartphone App and PC Software Safire Smart VMS |
| Power | ATX200 ? 50W (Without hard disk) |
| Operating temperature | -10oC ~50oC, Humidity 10~90% |
| Dimensions / weight | 90 (H) x 445 (W) x 436 (D) mm / 1.18 Kg |
