| Brand | Milesight |

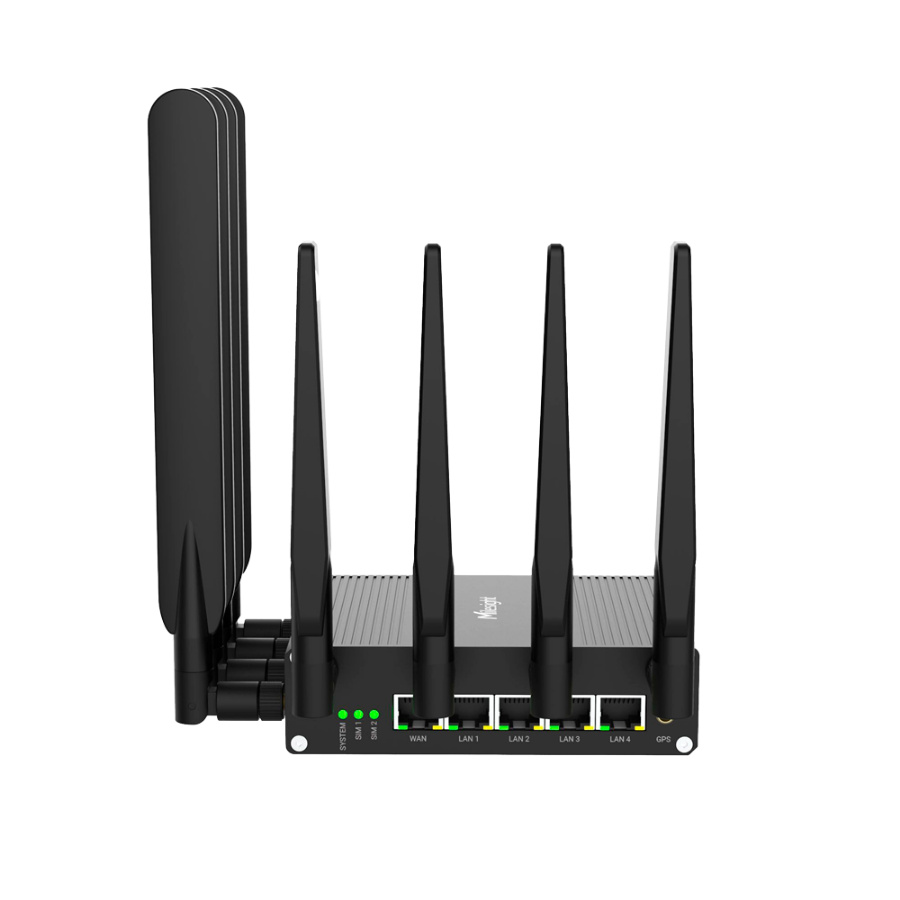

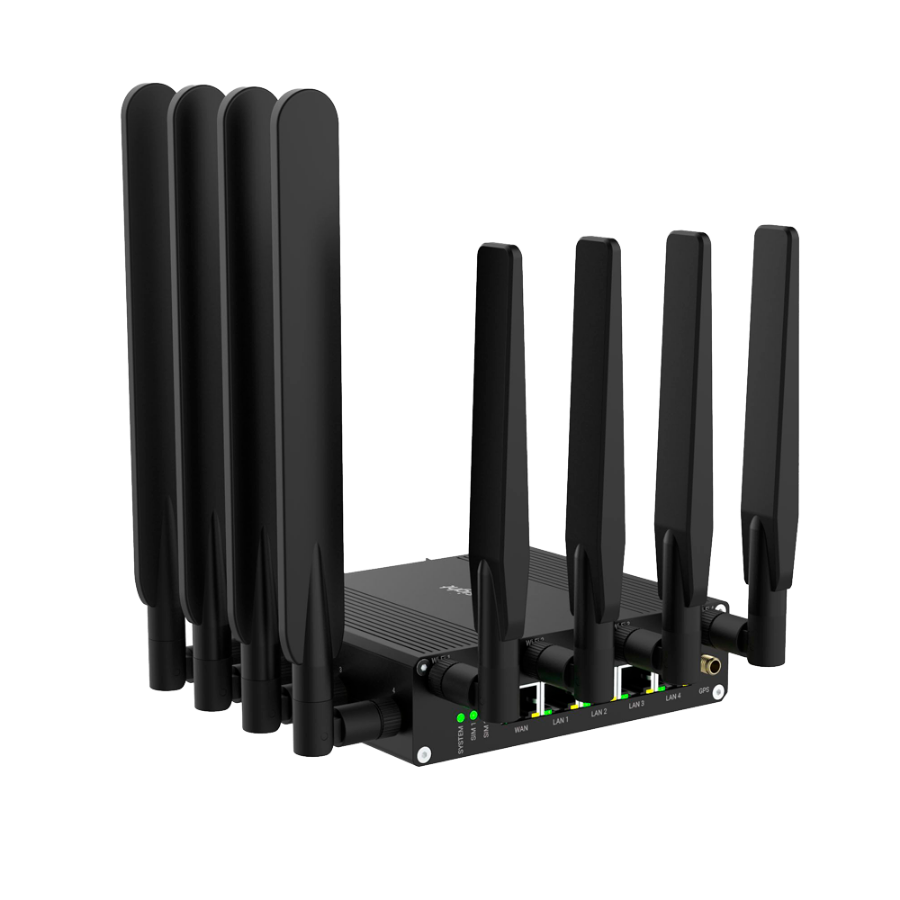

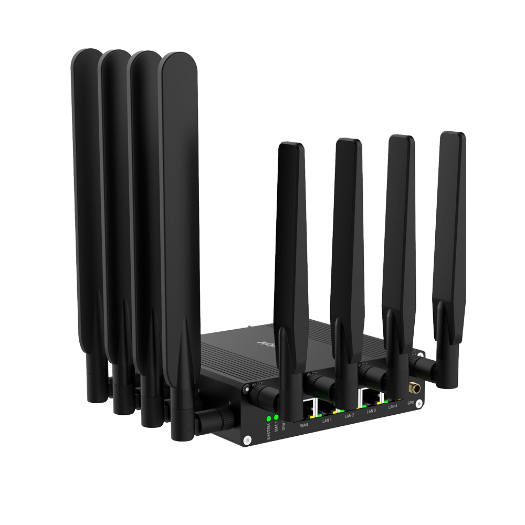

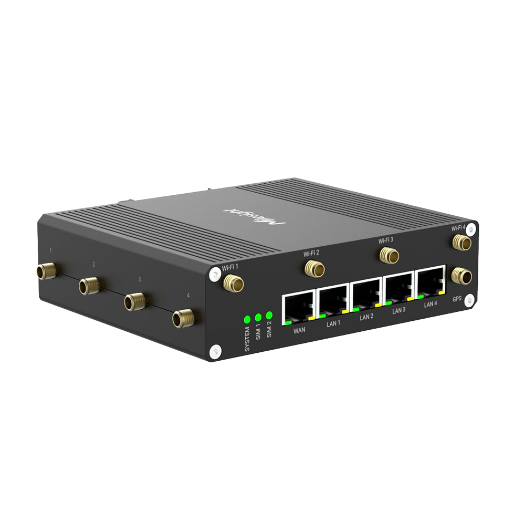

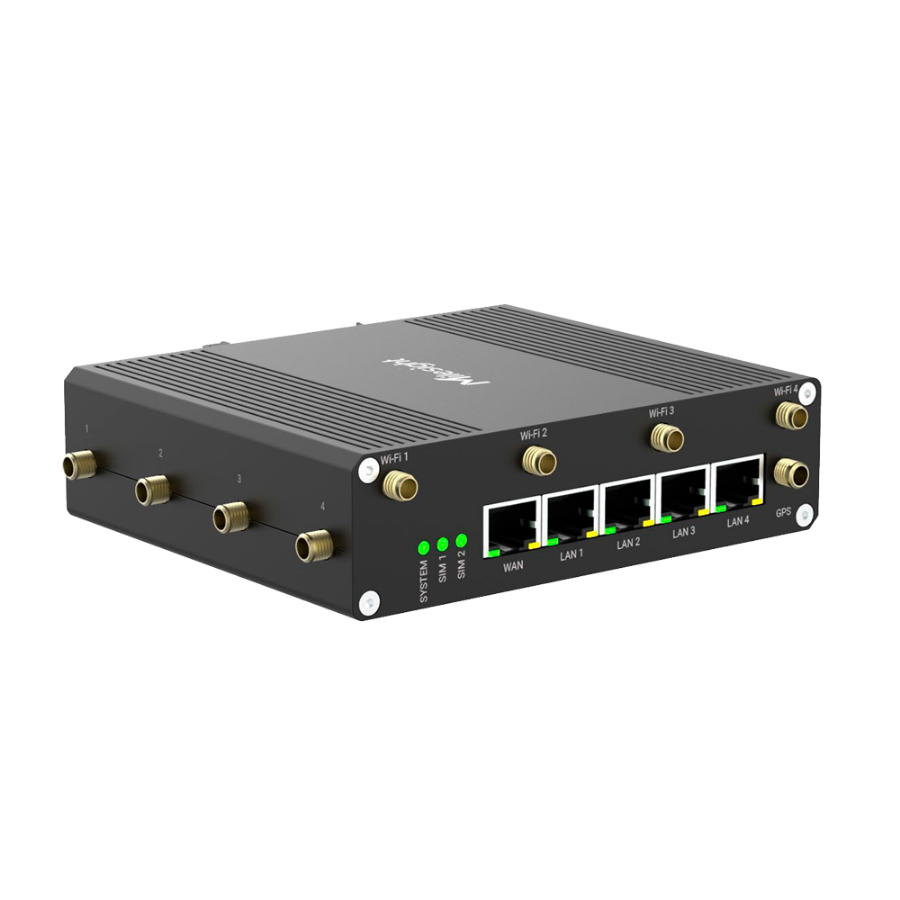

| Device | Industrial Router 5G PoE |
| Wifi | IEEE 802.11 b/g/n/ac/ax Dual Band 2.4+5GHz AP/Client mode, WEP/WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| Antenna connectors | 4 x LTE, 1 x GPS and 4 x WiFi (SMA Female) (antennas included) |
| Ethernet | 5 Ethernet RJ45 10/100/1000 ports (1x Mbps 4x WAN + [%VAR%] LAN) |
| PoE | 1~4 IEEE 802.3af/at POE ports |
| SIM | 2 microSIM card slots |
| High Availability | Failover and aggregation of carrier signal links 2CC CA (with dual SIM) |
| Vpn | IPsec, OpenVPN, LT2TP, PPTP |
| Positioning | GPS/GLONASS/Beidou/Galileo/QZSS |
| Security | Access Control, DMZ, Port Forwarding, SYN-Flood Protection, filtering based Ip/Domain/MAC |
| CPU | Quad-core ARM Cortex-A55,2 GHz |
| RAM | 1 GB LDDR4x RAM |
| Flash | 1 GB NAND Flash |
| Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, NTP, QoS, SNTP, Telnet, VLAN, SSH |
| Ports | 1x Digital Input +1x Digital Output + 1x Port RS232 + 1x Port RS485 + 1 x USB 3.0 (Type-C) |
| Power | DC 9~48V (48V power supply required for PoE included) |
| Material | Metallic |
| Temp. operation | -30o C ~ +60o C (reduced LTE functions > 60o C) |
| Operating Humidity | 0 ~ 95 % (non-condensing) to 25o C |
| Installation | DIN rail, wall or desktop |
| Dimensions | 135 × 115 × 36,4 mm |
| Weight | 525 g |
