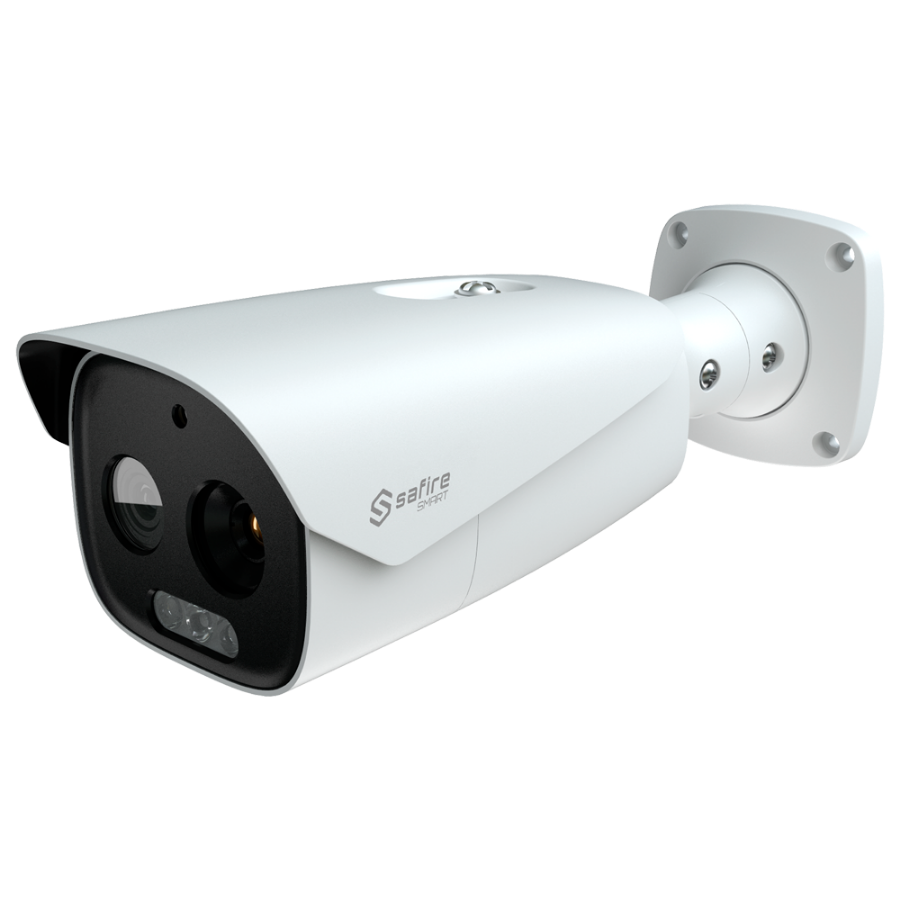

| Brand | Safire Smart |
| Range | Thermal |
| Thermal sensor | Vanadium Oxide |
| Thermal sensor resolution | 640x512 |
| Optical sensor | 1/2.7” Progressive Scan CMOS |
| Optical sensor resolution | 5 Megapixel (2592x1944) |
| Main Stream rate | Thermal: 25 fps (640x512, the resulting output image is 720P)Optic: 25 fps (5MPx, 4MPx, 2K, 3MPx, 1080P, 720P) |
| Extra Stream rate | Thermal: 25 fps (640x512, the resulting output image is 720P)Optic: 25 fps (720P, D1, CIF) |
| Third Stream | Thermal: 25 fps (640x512, the resulting output image is 720P)Optic: 25 fps (D1, CIF, 480x240) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 19 mm (Therm) / 8 mm (Opt) |
| Viewing angle | Thermal: 22.9° (H) x 18.4° (V)Optic: 38° (H) x 27.5° (V) |
| Infrared lighting | 50m |
| DORI (Thermal) | Human : 792 m (D), 198 m (R), 99 m (I)Vehicle: 2428 m (D), 607 m (R), 303 (I) |
| Temperature measurement | Object 2m x 2m: 107mObject 1m x 1m: 53m |
| Fire Detection | Object 2m x 2m: 267mObject 1m x 1m: 133m |
| Thermal sensitivity | ? 35mK (@25oC) |
| Thermal measurement range | -20 ~150 oC / ± 8 oC |
| Spectral range | 8~14 µm |
| Pitch detector | 12 µm |
| Basic functions | Motion detection, microSD error, microSD full, microSD full, IP conflict, cable connection status |
| Temperature rules | Even 10 rules (10 points, 2 areas and 2 line) |
| Temperature alarm | High temperature, Low temperature |
| Fire Detection | Dynamic fire detection with detection up to 10 points |
| Smart Features | Optic: - Intrusion detection / entry / exit in the region / line crossing detection (classification of persons/motorized vehicles/non-motorized vehicles)- Target count per line/area (classification of |
| Audio | 1 input / 1 line level output 600 ohm / 1 Loudspeaker |
| Audio Compression | G.711 A/U |
| Alarms | 4 inputs / 4 relay |
| Deterrent alarm | Siren and flash integrated in the camera |
| Internal memory | MicroSD card slot up to 256 GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, NVR and PC Software Safire Smart Center |
| Interoperability | ONVIF |
| Power | DC 12 V, 0.7 A, 9 W max.PoE IEEE802.3af |
| Temp. operation | -30o C ~ +60o C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 88.7 (H) x 100.2 (W) x 278.3 (D) mm |
| Weight | 1180 g |
