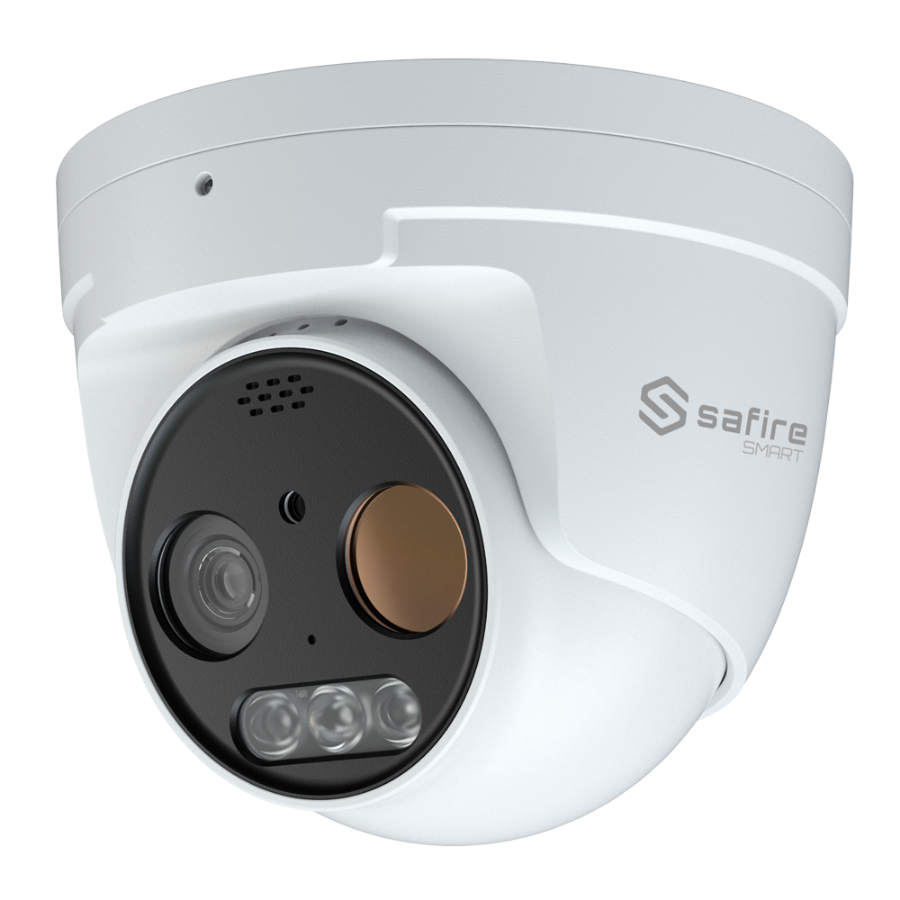

| Brand | Safire Smart |
| Range | Thermal |
| Thermal sensor | Vanadium Oxide |
| Thermal sensor resolution | 256x192 |
| Optical sensor | 1/2.7” Progressive Scan CMOS |
| Optical sensor resolution | 5 Megapixel (2592x1944) |
| Main Stream rate | Thermal: 25 fps (256x192, the resulting output image is 720P)Optic: 25 fps (5MPx, 4MPx, 2K, 3MPx, 1080P, 720P) |
| Extra Stream rate | Thermal: 25 fps (256x192, the resulting output image is 720P)Optic: 25 fps (720P, D1, CIF) |
| Third Stream | Thermal: 25 fps (256x192, the resulting output image is 720P)Optic: 25 fps (D1, CIF, 480x240) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 7 mm (Therm) / 8 mm (Opt) |
| DORI (Thermal) | Human : 292 m (D), 73 m (R), 36 m (I)Vehicle: 894 m (D), 224 m (R), 112m (I) |
| Temperature measurement | Object 2m x 2m: 233mObject 1m x 1m: 117m |
| Fire Detection | Object 2m x 2m: 583mObject 1m x 1m: 292m |
| Viewing angle | Thermal: 24.8° (H), 18.7° (V)Optic: 34° (H), 27.5° (V) |
| Thermal sensitivity | ? 50mK (0.05 o C) |
| Thermal measurement range | -20 ~150 oC / ± 8 oC |
| Spectral range | 8~14 µm |
| Pitch detector | 12 µm |
| Basic functions | Motion detection, microSD error, microSD full, microSD full, IP conflict, cable connection status |
| Temperature rules | Even 10 rules (10 points, 2 areas and 2 line) |
| Temperature alarm | High temperature, Low temperature |
| Fire Detection | Dynamic fire detection with detection up to 10 points |
| Smart Features | Thermal:Advanced Artificial Intelligence: Classification of human and vehicle on: Area Intrusion and Line CrossingOptic:Advanced Artificial Intelligence: Classification of human, vehicle and non-motor |
| Audio | Built-in microphone, 1 input / 1 output line level 600 ohm |
| Audio Compression | G.711 A/U |
| Alarms | 1 inputs / 1 relay |
| Deterrent alarm | Siren and flash integrated in the camera |
| Internal memory | MicroSD card slot up to 256 GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, NVR and PC Software Safire Smart Center |
| Interoperability | ONVIF |
| Power | DC 12 V, 0.7 A, 9 W max.PoE IEEE802.3af |
| Temp. operation | -30o C ~ +60o C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 111.5 (O) x 99.6 (h) mm |
| Weight | 680 g |
