| Brand | Milesight |
| Device | Industrial Router 4G |
| Ethernet | 1 Ethernet port RJ45 10/100 Mbps |
| SIM | 1 NanoSIM card slot 4G / 3G (not included) |

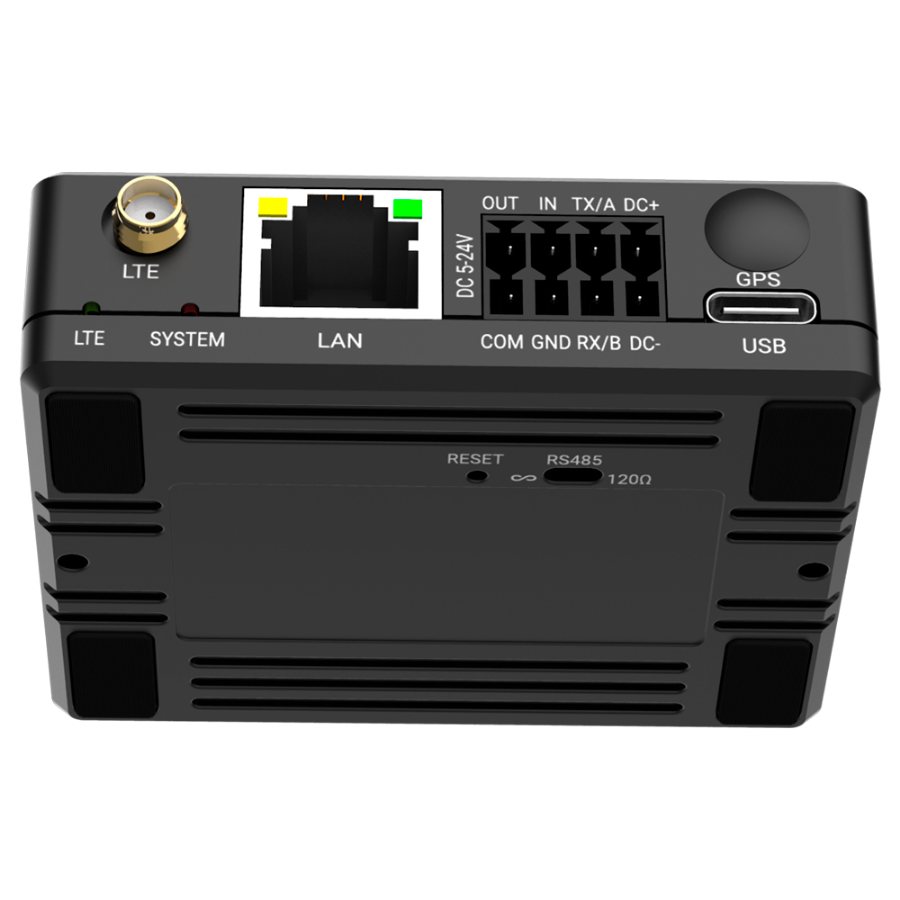

| Serial port | 1 × RS232/RS485 (Exchangeable by software)1 × 120 ? resistance switch (for RS485) |
| LTE Frequencies | Bands 1/3/7/8/20/28 |

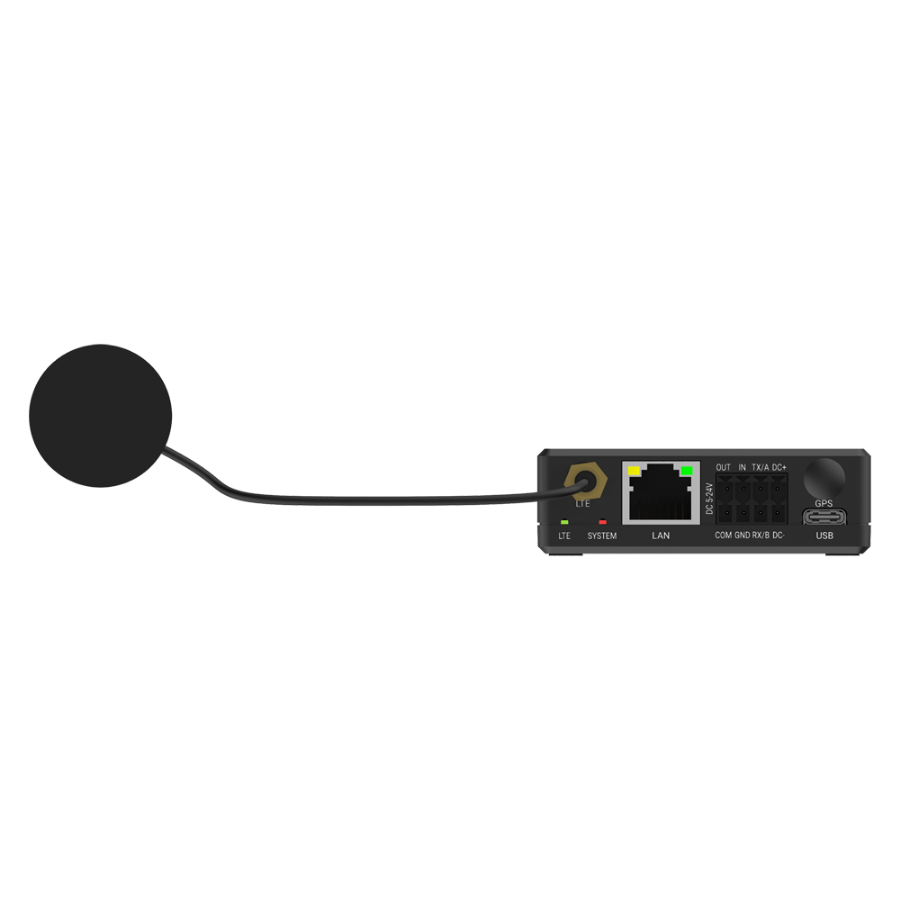

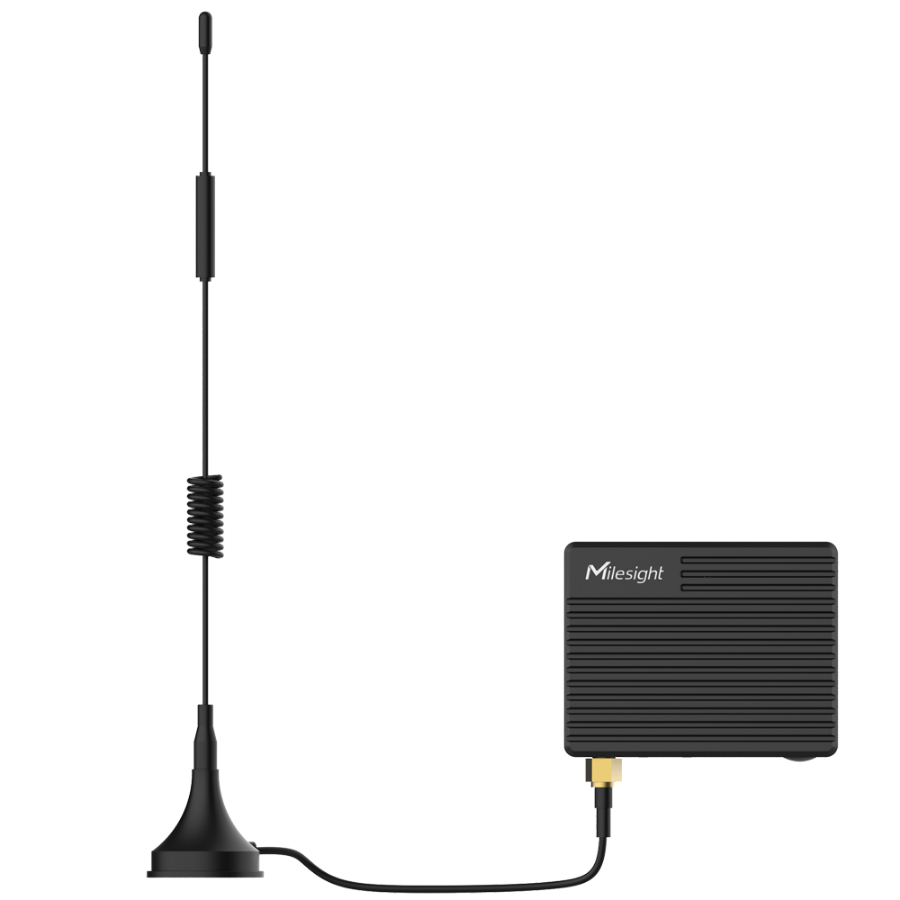

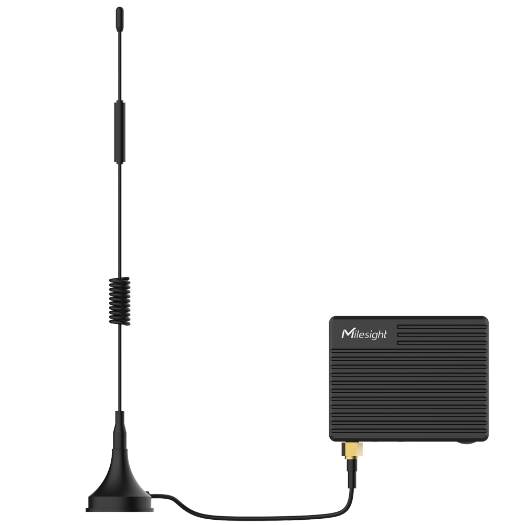

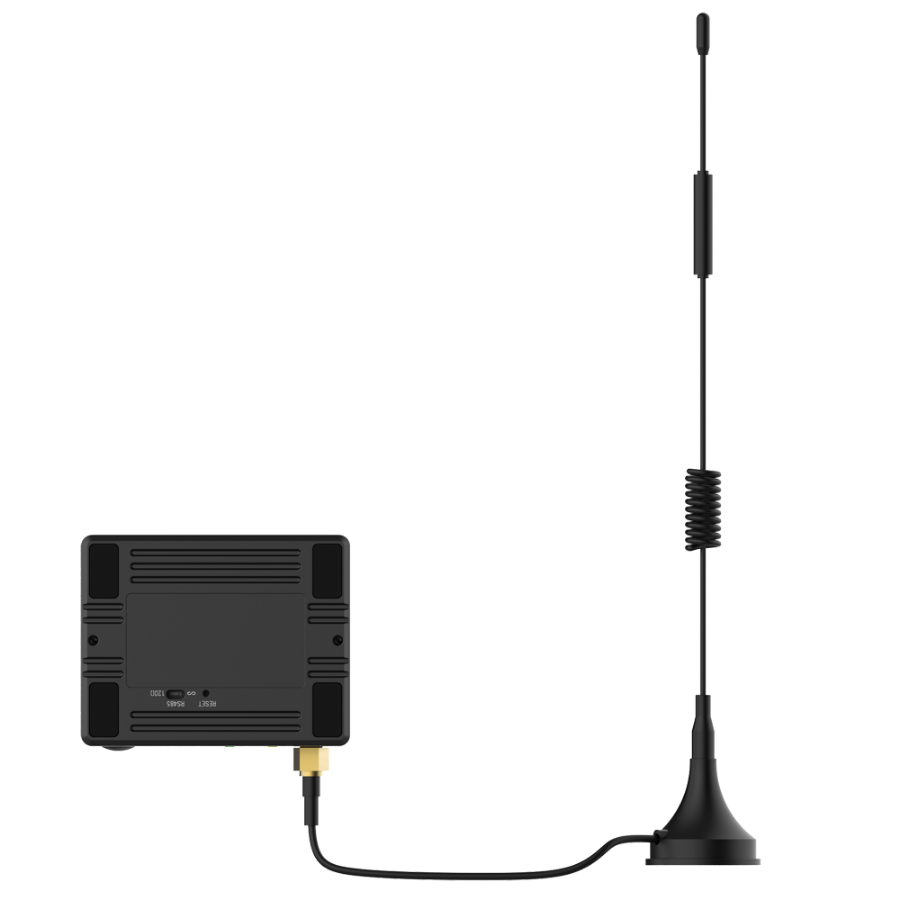

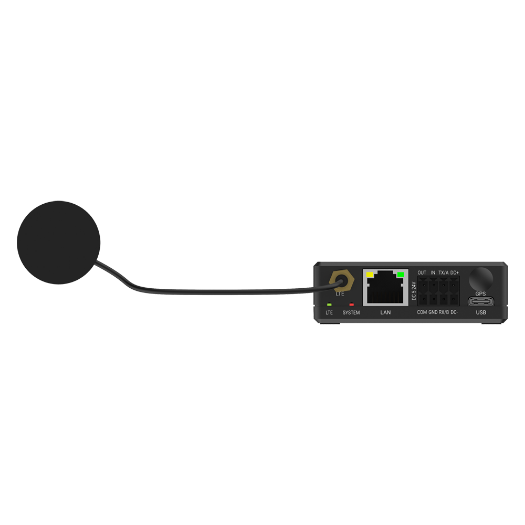

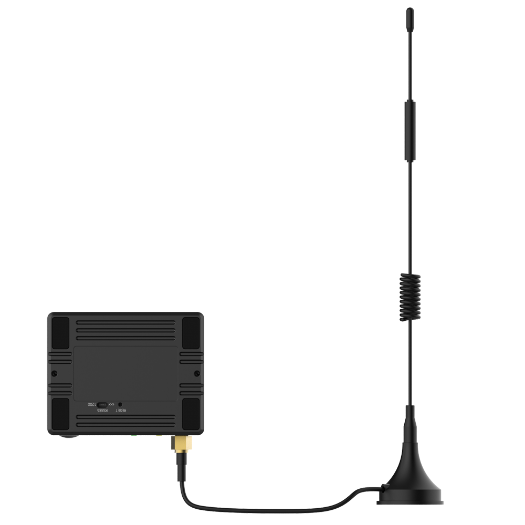

| Antenna connector | LTE (Length 23 cm) (antenna included) |
| CPU | 528 MHZ, 32-bit ARM Cortex-A7 |
| RAM | 128 MB DDR3 |
| Flash | 128 MB |
| Network Protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF,DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH, MQTT, TR069 |
| VPN Protocols | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE, MilesightVPN |
| Security | SPI Firewalls, Access Control (ACL), DMZ, Port Mapping, MAC Binding, DoS&DDoS Protection, Filtering(IP&Domain) |
| Serial port | Transparent (TCP Client/Server, UDP), Modbus Master/Slave, ModbusGateway (Modbus RTU to Modbus TCP) |
| Power | DC 5~24V with surge and reverse polarity protection5V/1A via USB Type-C Port |
| Power consumption | Inactive: 70mA@12VData Link: 157mA (peak)@12VOn Hold : 6.3 mA@12V |
| Material | Metallic |
| Temp. operation | -40o C ~ +60o C (reduced LTE functions > 60o C) |
| Operating Humidity | 0 ~ 95 % (non-condensing) to 25o C |
| Installation | Wall or tabletop |
| Dimensions | 22 (H) x 70 (W) × 55 (D) mm (Without antenna connector) |
| Weight | 103 g |
| Region | EU version for EMEA and Asia-Pacific |
