| Brand | Teltonika |
| Device | Gateway 4G Industrial |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128MB |
| Flash | 16MB |

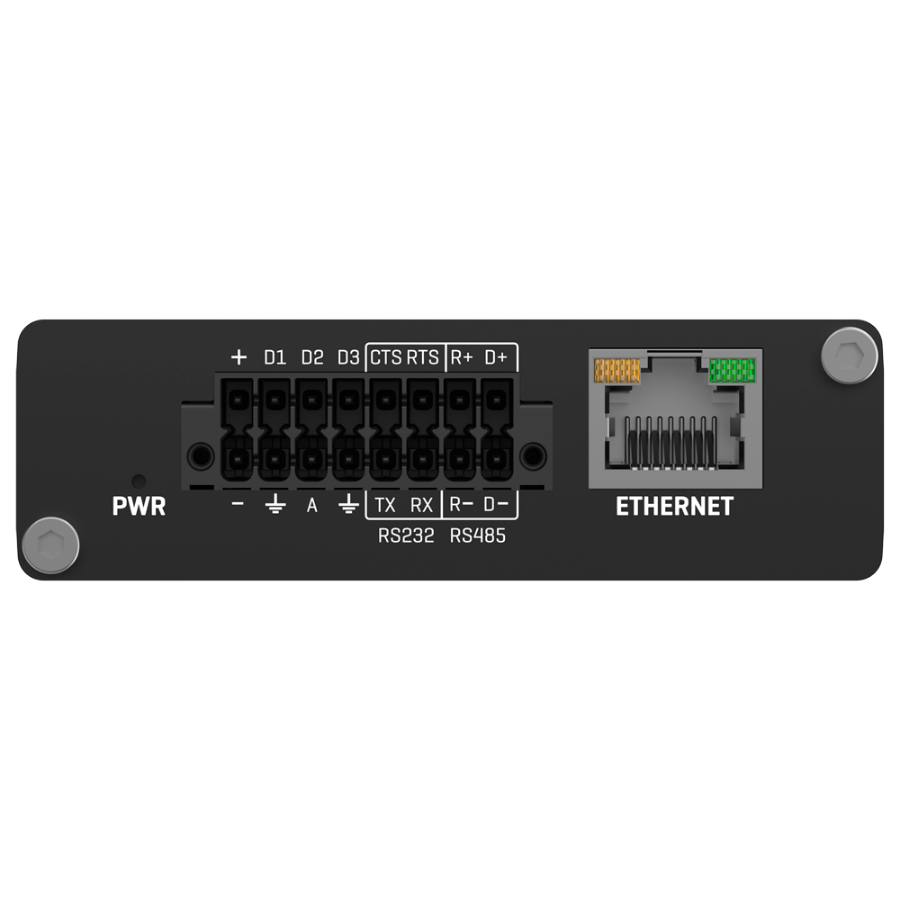

| Serial Ports | RS232 y RS485 |
| Serial port functions | Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client |
| Positioning | GPS, GLONASS, BeiDou, Galileo, and QZSS (GNSS location operation and mobile connectivity are not allowed simultaneously) |
| Operating system | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, DDNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPP, PPPoE, UPNP, SSH, SSHFS, DHCP server, DHCP Relay, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), T |
| Dynamic routing policies | BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, (Route based policies) |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier,Tinc |
| Security | -Port forwarding, traffic rules, customized rules-DDoS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scanning prevention (SYN-FIN, SYN-RST, X-mas, NULL f |
| QoS | QoS / Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| Hotspot (Captive Portal) | Internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 c |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, Kinesis, BACNET, OPC UA, MODBUS, DNP3, DLMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Inputs and Outputs | 3 x Configurable Inputs/Outputs. Digital Input to 0 - 6 V is detected as low level, 8 - 30 V detected as high level. Open collector output, maximum output 30 V, 300 mA |
| Power | Terminal Block Connector 16 Industrial Pins 9~30V Terminal Included |
| Material | Aluminium |
| Temp. operation | -40o C ~ +75o C |
| Operating Humidity | 10 ~ 90 % (non-condensing) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 25 (Al) x 83 (W) × 74 (D) mm |
| Weight | 165 g |
| Region | Europe, Middle East, Africa, Thailand |
