| Brand | Safire |

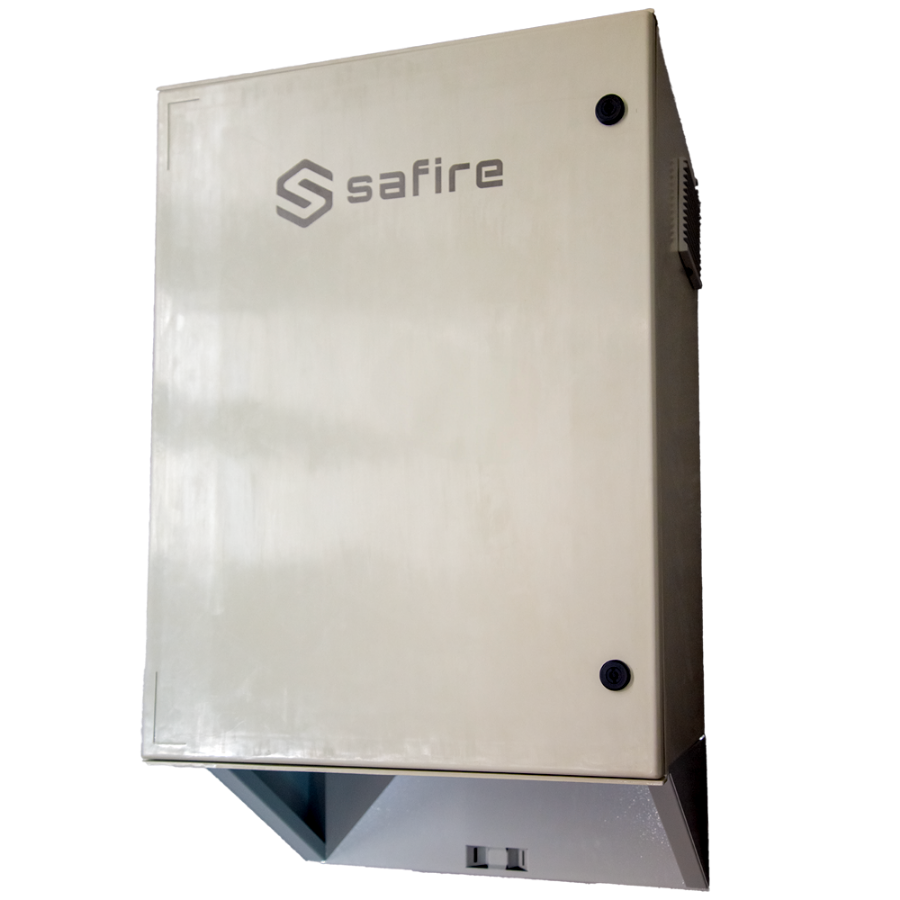

| Type | Polyester cabinet with switch and power supply included |
| Security | Double key lock |
| Power supply input | AC input 100-240 V, DC 72 V, output 320 W |
| Plug | x2, European type F |

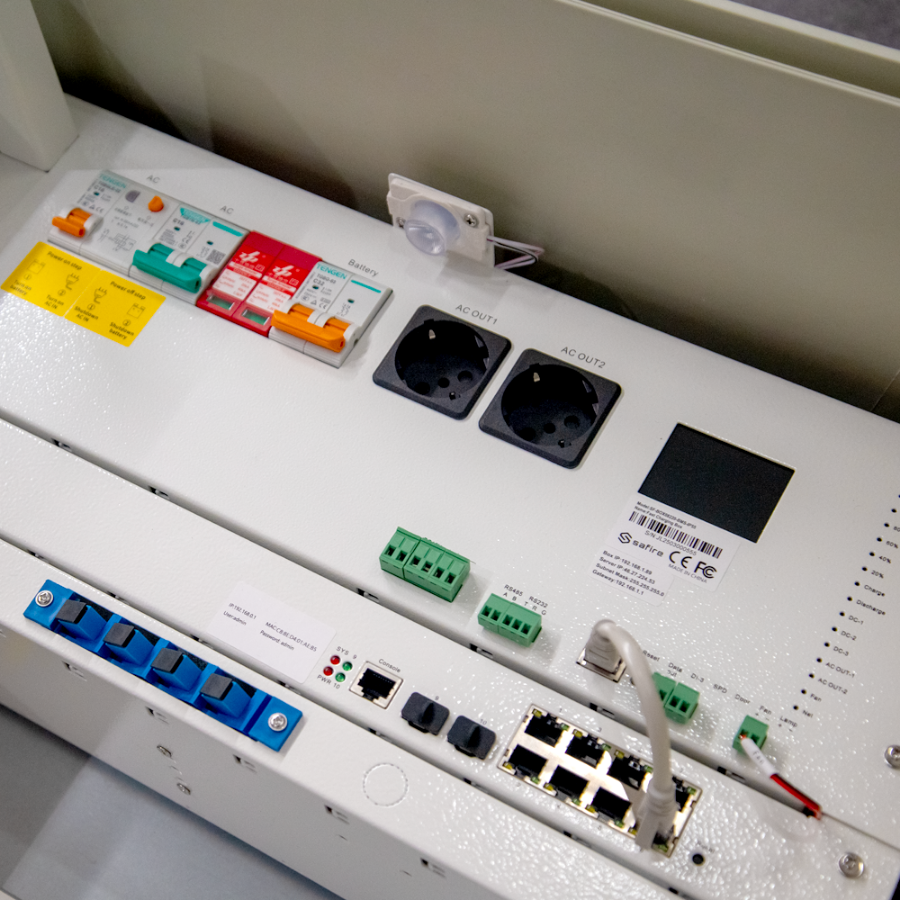

| Differential | RCD 1P+N, 16A |
| Transient SPD | xSPD 2P, AC380V, 20KA |
| Circuit breaker | MCB circuit breaker, 1P, DC220V, 16A, type C + 1P,DC220V, 16A, [%VAR%] type C |
| DC output | 3x 12V DC, Max. 240W (between the 3 outputs) |
| Fan | 1x 12V DC |
| Light | DC 12VInternal Led for night maintenance. Lights up when the door is opened |
| Door sensor | Yes |
| Ethernet Switch | xSwitch 8*10/100/1000M PoE (2*puertos 90W, 6*puertos 30W) + 2*1000 SFP, L2 administered |
| Alarm input | 3 inputs, dry contact*Input 1 used by default for the door contact |
| Intelligent network port module | 1 x 10/100Base-TX |
| Reset button | > Long press of 5 s: restore factory settings |
| Converter | DC converter 48 V to DC 12 V |
| Charge controller | Maximum input voltage 100 V, battery support DC12 V/24 V/48 20 V, charging current [%VAR%] A |
| LCD screen | Yesze: 2,5 inch LCD display |
| Fiber fusion tray | 4 x SC (connector) |
| Working temperature | -20?~70? |
| Storing temperature | -40?~85? |
| Humidity | 0~90% no condensation |
| External dimensions | 800 (H) x 600 (W) x 300 (D) mm |
| Material | SMC (fiberglass-reinforced polyester resin) |
| Colour | White |
| Net Weight | 22Kg |
| Management software | Si |
| Consumption | Self-consumption < 20W, output < PoE180W max. |
| Extended PoE | Included |
| Ports | Ports 1-2: 10/100/1000Base-T, 90 W, PoE RJ45 (IEEE 802.3bt, also compliant with IEEE8025.3af/at); Ports 3-8: 10/100/1000Base-T, 30 W, PoE RJ45 (IEEE802.3af/at) [%VAR%] |
| SFP | Ports 9~10, SFP slots 1000Base-X |
| Switching Capacity | 20Gbps |
| Bandwidth | 14.88Mpps |
| Buffer | 1M |
| MAC address table | 8K |
| Protection | Overvoltage: 6 kV, standard: IEC61000-4-5ESD: 6 kV: contacto/8 kV: air, standard: IEC61000-4-2 |
| System configuration | Date and timeUser administrationSecurity management (http, SNMP, telnet, SSH)Configuration files (export/import)FirmwareSystem (restart, default) |
| Port configuration | StatePort speedTraffic controlStorm control (broadcast, interval, unicast, multicast)Port protectionMAC LearningTrunk portsMirror PortsDHCPIGMP snoopingVLANLACPLLDPLoopback detectionMAC VLANVLAN mappi |
| MAC | MAC LinkAuto linkMAC filterBridge |
| VLAN | Working mode (access, trunk, hybrid)Default VLANMember tagued |
| SNMP configuration | SNMP community (community name, read, write)TRAP (SNMP version V1, V2C, V3) |
| ACL configuration | Standard IP (Groups, source IP, wildcard, mathematical data packets)Extended IP (Groups, Source IP, Source wildcard, Destination IP, Destination wildcard, Protocol, Source port)IP MACMAC ARPACL Refere |
| QoS configuration | QoS ApplicationQoS AgendaIP AddressARPHost static route |
| AAA configuration | Tacacs+RadiusAuthentication 802.1X |
| STP configuration | MSTPSTP port |
| IGMP Snooping Configuration | Available |
| GMRP configuration | GMRP GlobalGMRP PortsGMRP Registration |
| EAPS configuration | EAPS |
| RMON configuration | StatisticsHistoryAlarmEvents |
| Cluster management | NDPNTDPCluster |
| Log information | LogSyslog |
| POE power control | TypeAdmin statusTotal energyPOE PolicyPD Query |
| DHCP | DHCP Snooping |
| ERPS configuration | ERPSERPS ring 1~21 |
| LACP | lACP active links |
| Line | Vty |
| LLDP | GlobalHold multiplierTimer |
| Loop detection | Detection timeProtocolResponse packagesResponse time |
| MVR | GroupsVLAN |
| OAM | Frame with errorPeriodSeconds |
| Redundant port | ForcedPrimary port |
| UDLD | EnableSchedule |
| VLAN protocol | ARP, Atalkaarp, Atalkddp, Atmmulti, Atmtransport, Dec, Deccustom, Decdiagnostics, Decnadumpload, Decdnaremoteconsole, Decnarouting, Declat, Desyscomn, G8bpqx25, IEEEaddrtrans, IEEEpup, IP, IPX, PPPdis |
| CFM | CCEnableLinktraceMAMDRule-mipService-instance |

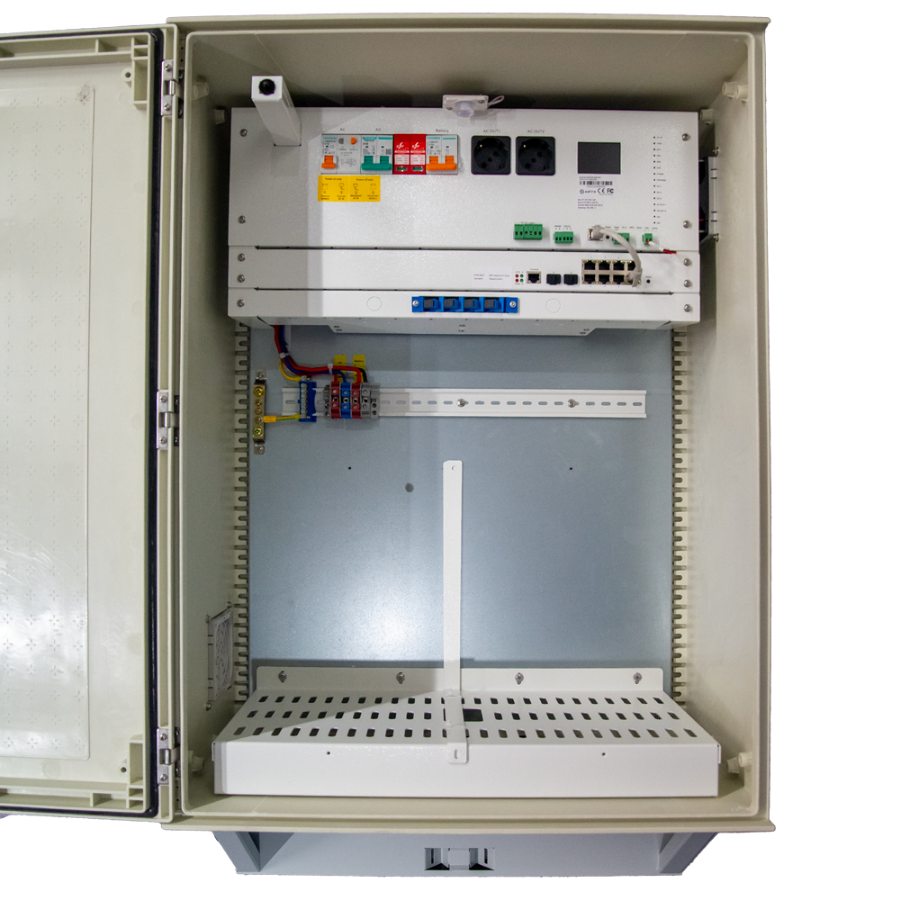

Intelligent cabinet for installations where there is no mains connection and light. Version 220V AC with fast charging 17 ampere hour connected to recommended Lithium battery (48V 100A) recommended for street lights, intelligent module integrated with main electrical protections (differential, circuit breaker and SDP), POE switch L2 with 2 HIGH POE sockets with SAFIRE logo. Additional application for carton weight.
