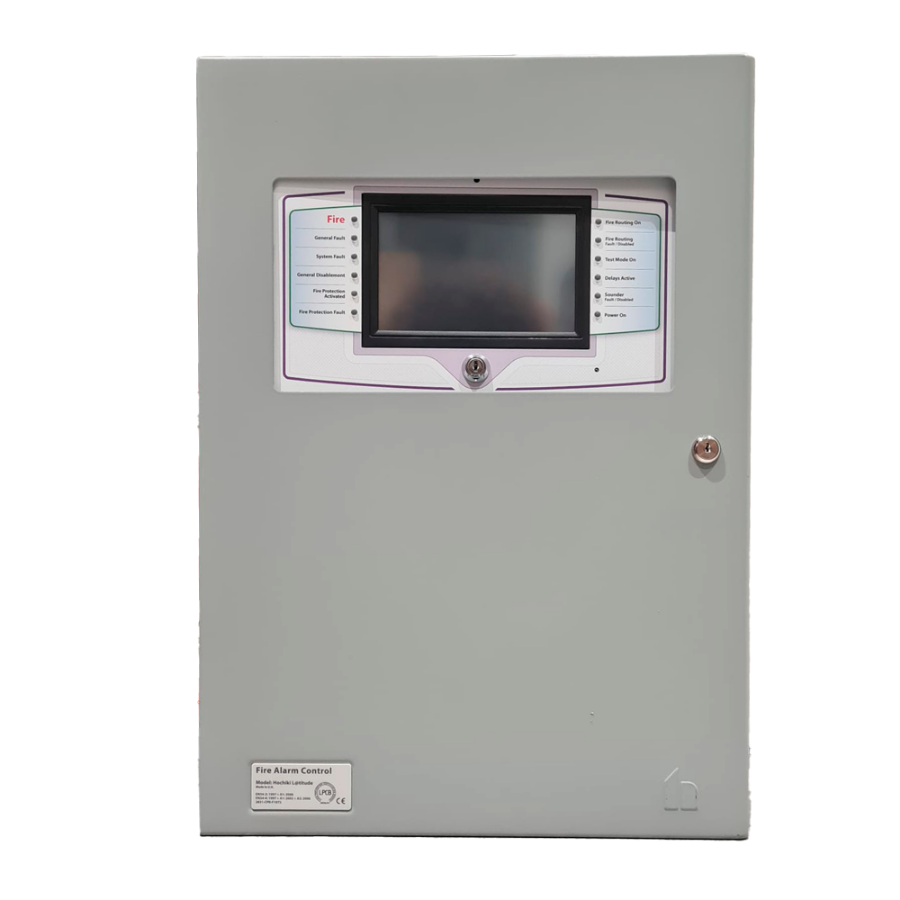

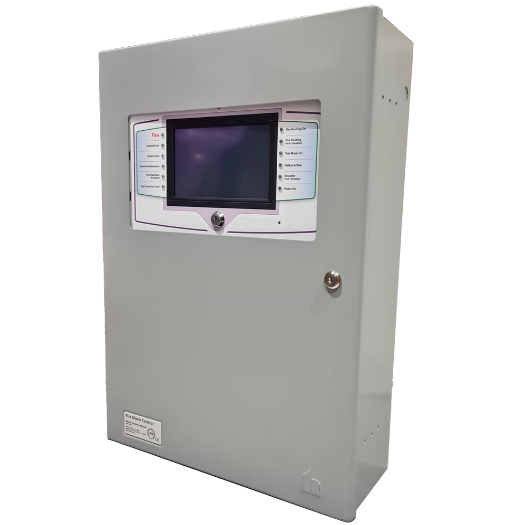

LABED13010H1HEUK1 Addressable fire panel of 2 loops Power supply 10,25 A

Addressable fire panel of 2 loops
Power supply 10,25 A
Loop current of 500 mA
4 siren circuits and 5 programmable relays
Resistive touch screen
Extendable up to 16 loops

Brand: HOCHIKI

Šifra: LABED13010H1HEUK1

9.462,70 EUR

Visoka dostupnost

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Reference	LAAEE11010H1HEUK1
Battery capacity	Up to 45 Ah
Supply voltage	230 VAC or 115 VAC
Power supply	A 24 V DC 10.25 A (charge up to 45 Ah)
Certificates	EN54-2, EN54-4, EN54-13
LCD screen	Colour 800 x 480 with resistive touch screen and automatic backlight dimming
Printer	of 40 columns, front-loading thermal (optional)
LED zone indicators	Up to 3 banks of 48 (144) (optional)
Software zones	2000
Software groups	5000
Event registration	10.000 events, resolution of 1 second. Filterable and printable
Detection loops	From 2 to 16 expandable with (K758 card from 2 loops)
Detection loop current	500 mA each
Siren circuits,	4 each rated 2,5 A, 24 V DC, programmable
Auxiliary supply of 24 V 1	24 V DC with fuse of 500 mA
Auxiliary supply of 24 V 2	24 V DC with fuse of 500 mA
Default Relays Failure,	Fire, Alarm, Programmable 1 and Programmable 2 (all reprogrammable)
Programmable inputs	3, activated by volt-free contacts.
Auxiliary serial port A	RS232 programmable
Auxiliary serial port B	RS232 programmable
Serial fire routing port (Ifam)	RS485 programmable
USB host port	USB type A
USB device port	USB type B
Dimensions	420mm (W) x 585mm (H) x 195mm (D)
Material	Steel sheet 1,5 mm.
Finished	Epoxy powder coated.
Color - Lid and Box	BS 00 A 05 fine texture
Weight (kg)	20
Fire routing output	Supervised
Fire routing input	Supervised
Fault routing output	Supervised
Fault routing input	Supervised
Extinguisher outlet	Supervised
Fire extinguisher input	Supervised
Extinguisher fault input	Supervised

Opis

Hochiki's Latitude Fire Panel offers flexible fire detection control for medium to large facilities.

This versatile system supports from 2 expandable to 16 loops thanks to the K758, loop cards with capacity for up to 2.000 devices. Intuitive touch-screen interface simplifies operation and configuration. The panel has robust networking capabilities, allowing the integration of up to 127 panels. Latitude panel ensures accurate alarm management.

Compatible with Hochiki's wide range of ESP sensors, modules and alarm equipment, it provides a comprehensive fire protection solution.

The system's scalability and backward compatibility make it an ideal choice for both new installations and system upgrades
