| Operating band | Cat M1/Cat NB1:LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28 |
| LTE data transmission | eMTC (DL) 375 KbpseMTC (UL) 375 KbpsNB1 (DL) 32 Kbps ,NB1 (UL) 70 Kbps |
| Work frequency | EGPRS 850 / 900 / 1800 / 1900 MHz |
| EGPRS data transmission | GPRS multi-slot class 33 (33 default)EDGE multi-slot class 33 (33 by default) |
| GNSS type | U-blox all-in-one GNSS receiver |
| Sensitivity | Autonomous: -147 dBmHot start: -156 dBmBuyback: -160 dBmTracking: -162 dBm |
| Positioning accuracy | < 2.5m |
| TTFF (in open field) | Cold start: average of 27 sHot start: average of 27 sHot start: average of 1 s |
| Dimensions | 102mm × 46mm × 20.5mm |
| Weight | 110g |
| Backup battery | Lithium Polymer 700mA |
| Working voltage | from 8 to 32V DC |
| Working temperature | -30? ~ +80?-40? ~ +80? for storage |
| Protection | IP 67 |
| Consumption | Zero power consumption with contact off to prevent battery discharge |
| Buffer | Up to 10000 messages |
| Digital inputs | 2 digital inputs, including1 positive trigger for ignition detection1 negative trigger input for normal use |
| Digital output | 1 digital output, open drain, maximum drive current drain 150 mA |
| Interlocked Digital Output | 1 digital output with internal latching circuit, open drain, max. drive current drain of 150 mA |

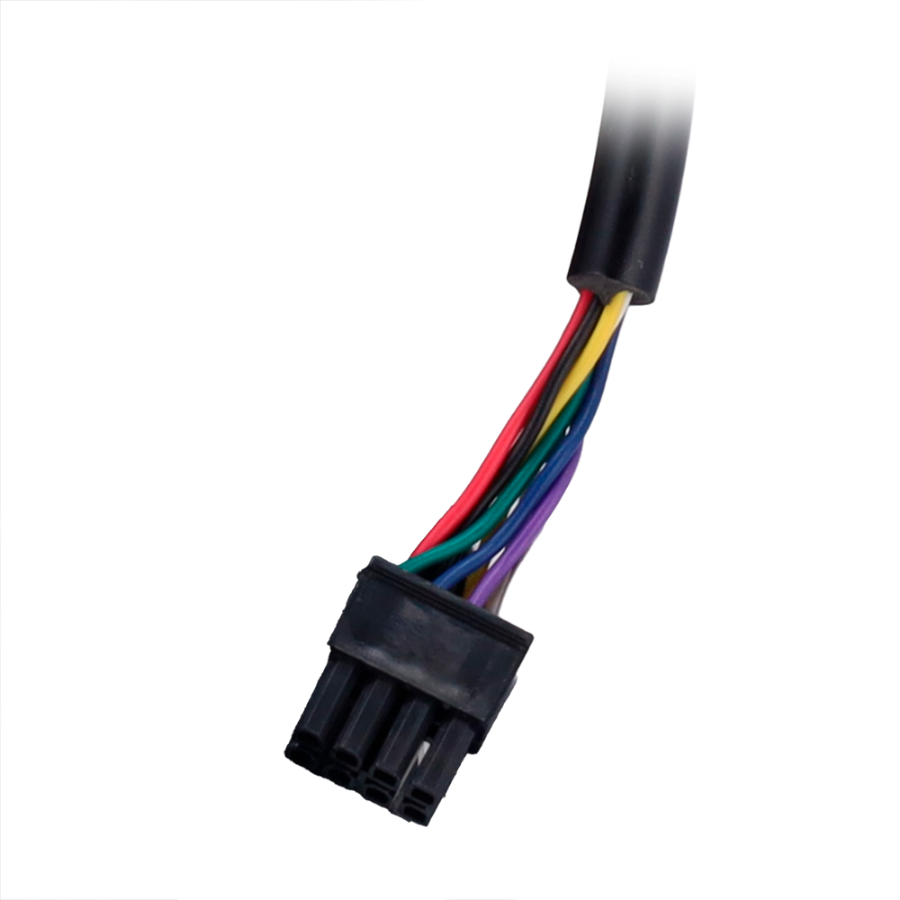

| Serial port | 1 serial port RS232 on 8 pin cable, used for external devices |
| LTE Antenna | Internal only |
| GPS Antenna | Internal only |
| Led indicator | CEL, GNSS, PWR |
| Transmission protocols | TCP, UDP, SMS |
| Scheduled report | Reports position at preset time and distance intervals |
| Geofence | Geo-fence alarm and parking alarm, supports up to 20 internal geo-fence regions |
| Alarms | Low battery, ignition, crawl, driver behavior, collision, special based on digital inputs |
| Remote control | OTA control of digital outputs |
Compact locator ideal for installation on motorcycles or boats. 0 consumption which allows vehicles to be left unattended for an extended period of time without concern for battery drainage. Manufactured waterproof and dustproof with IP protection 67.
