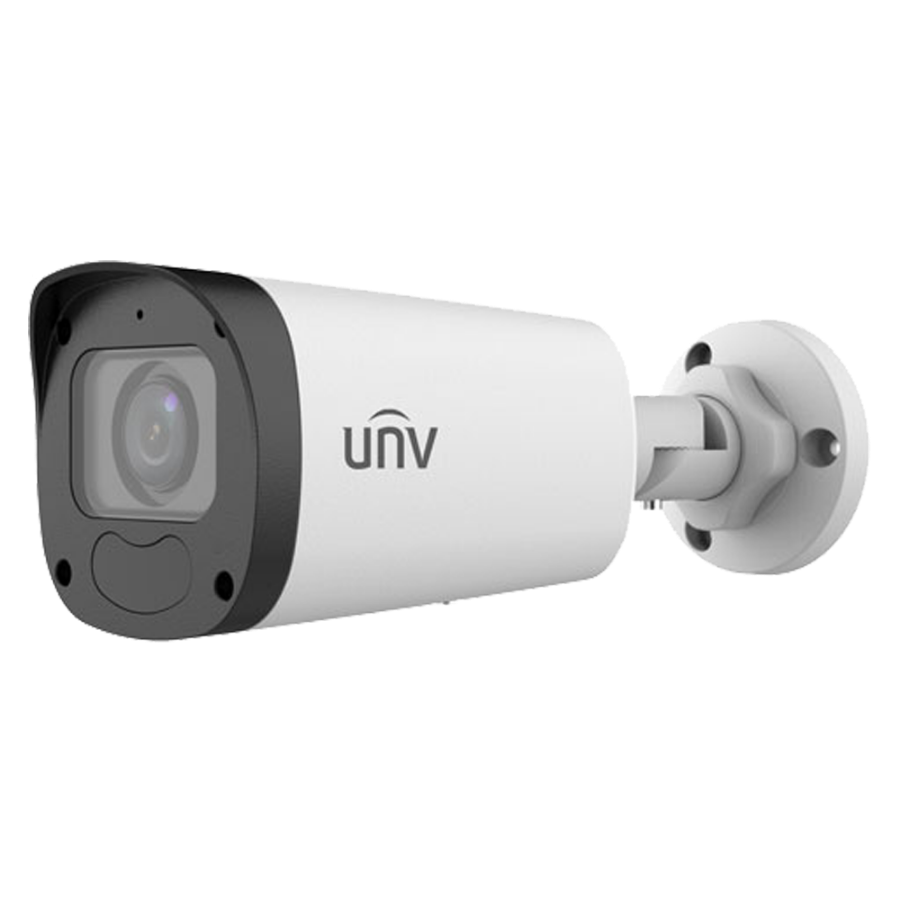

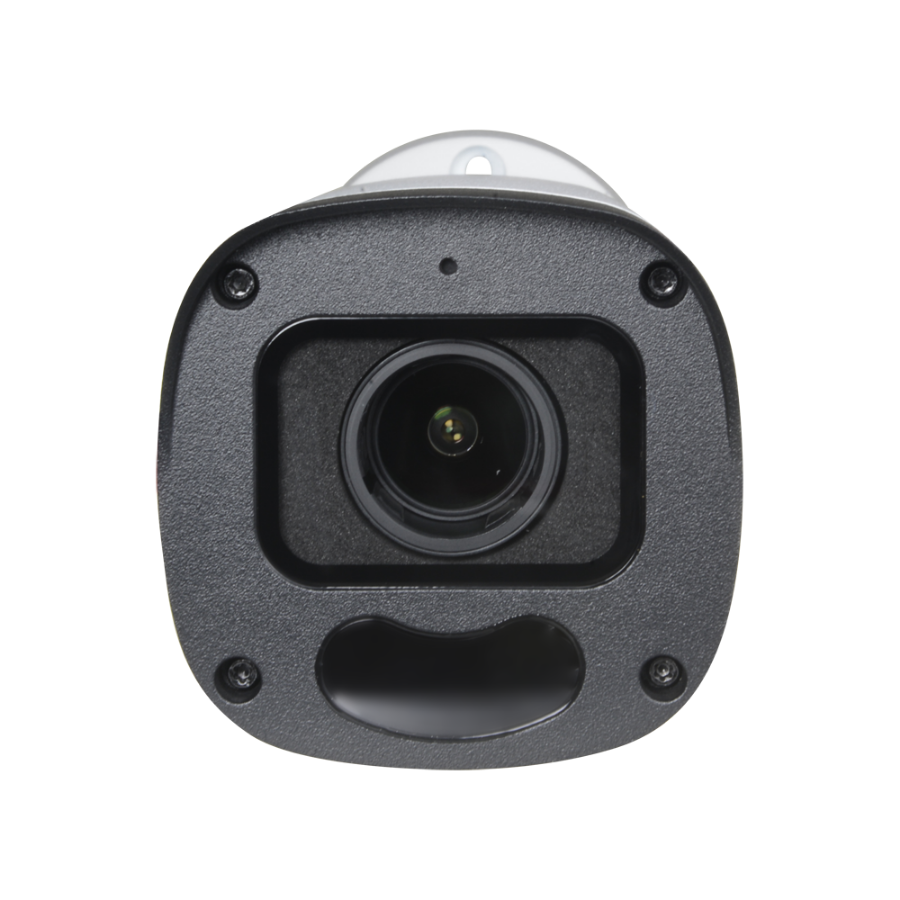

| Brand | Uniview |
| Range | Easy |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688×1520) |
| Main Stream rate | 25 fps (2688 x 1520, 2560 x 1440, 2304 x 1296) 30 fps (1920 x 1080) |
| Extra Stream rate | 2o:1280x720 (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8-12 mm |
| Minimum illumination | 0.003 Lux (Colour) |
| Infrared range | 50 m |
| WDR | 120 dB |
| Image improvements | BLC, HLC, AGC, 2D/3D-NR, Smart IR, Region of interest, Privacy mask |
| Intelligent functions | Line Crossing, Intrusion, Anti-Tampering |
| Day / Night | Mechanical ICR filter |
| Audio | Integrated microphone |
| Internal memory | MicroSD slot (up to 256 GB) |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Protection | Waterproof (IP67), Surge protection |
| Power | DC 12 V / 8 W, PoE IEEE802.3af |
| Temp. operation | -30o C ~ 60o C |
| Dimensions | 206 mm (W) x 74 (D) x 74 (H) mm |
| Weight | 500 g |

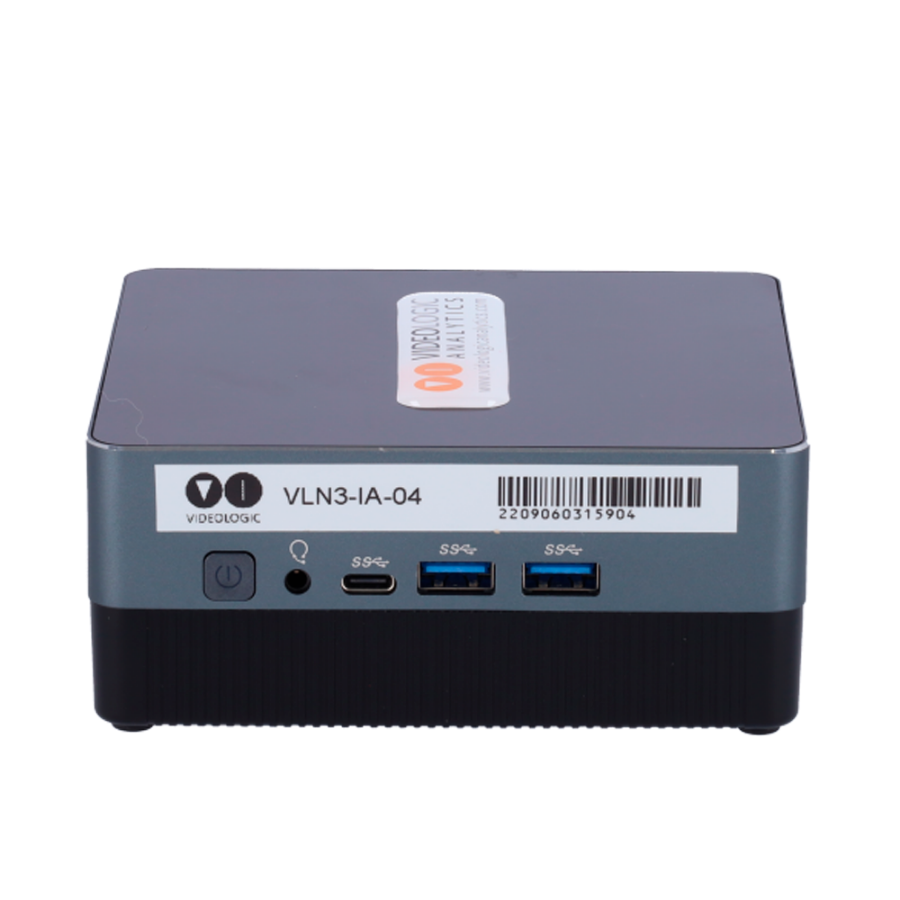

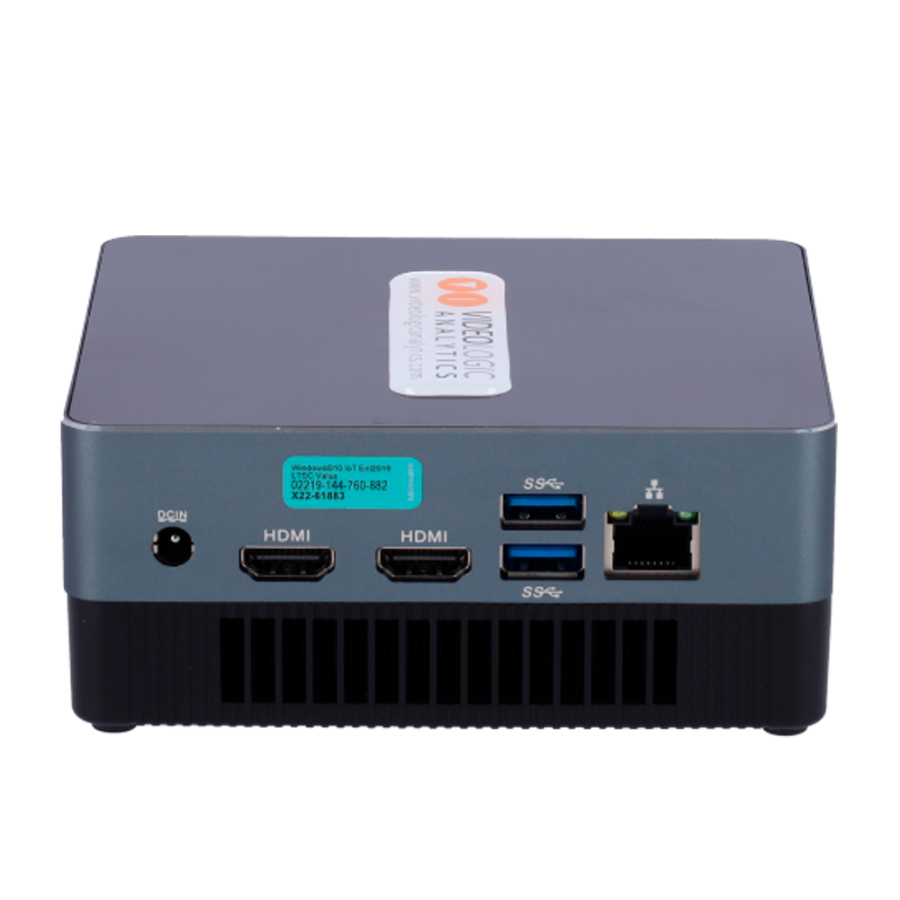

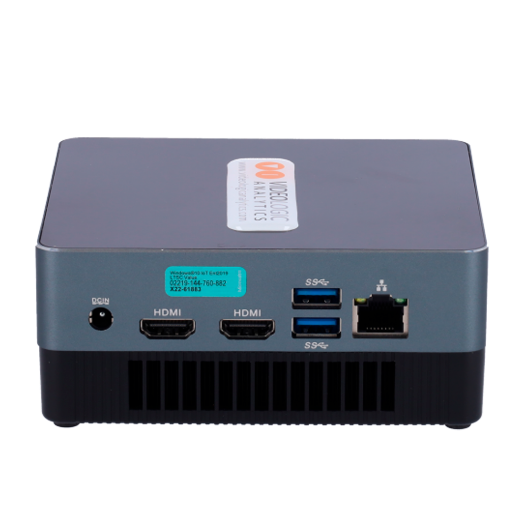

| Processor | Intel® Celeron |
| RAM memory | 8GB |
| Hard disk drive | 256GB HD SSD |
| Power supply | 100–240 VCA, 50/60 Hz |
| Operating system | Microsoft Windows 10 IOT |
| Ethernet | Gigabit, autodetection, full duplex, RJ45 |
| Dimensions (L x W x H) | 110 x 110 x 50 mm. |

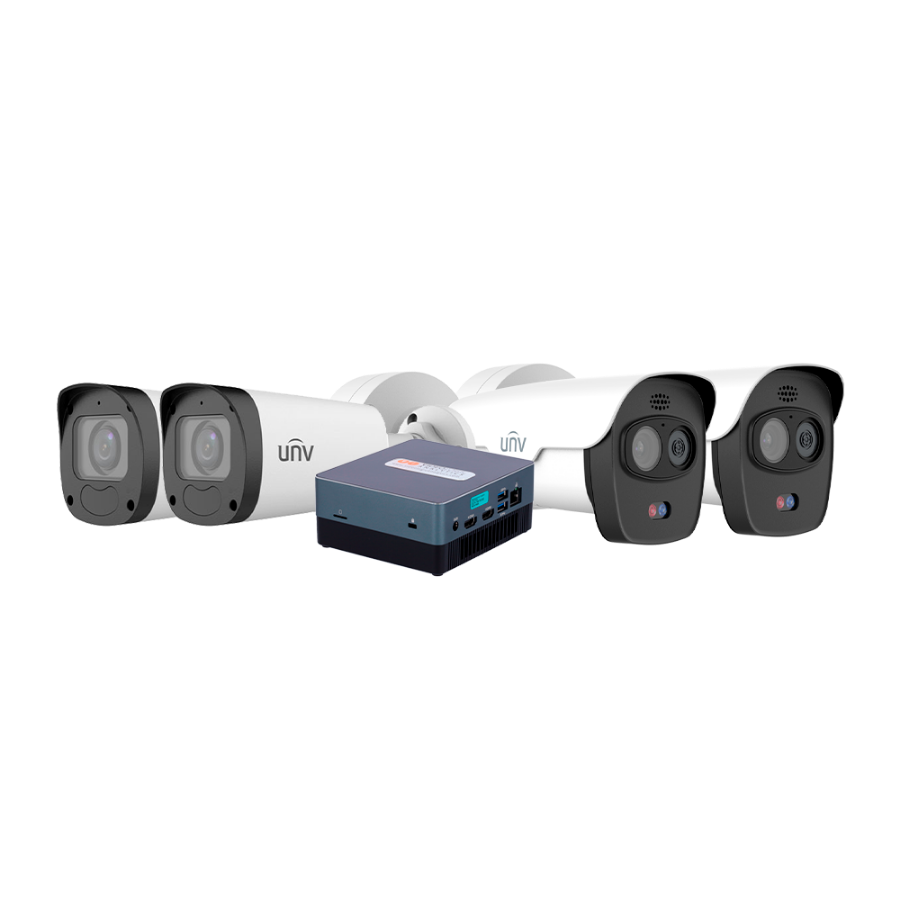

| Video input | 4 IP cameras (upgradeable to 6)) |
| IP Camera Integration | Compatible with ONVIF IP cameras, NVR over RTSP |
| Video compression | H.264/H.265 |
| Video analysis | Compatible with VA-VLN-IALITE licenses |
| Warranty | 2 years |
| Management | Videologic Viewer |
| CRA compatibility | Bold Manitou CS, MAStermind, SIMS-III, Softguard, IBS, Immix |
| VMS compatibility | Milestone, Genetec, IndigoVision, Hikvision HikCentral, Dahua DSS, Axis Monitor Station |

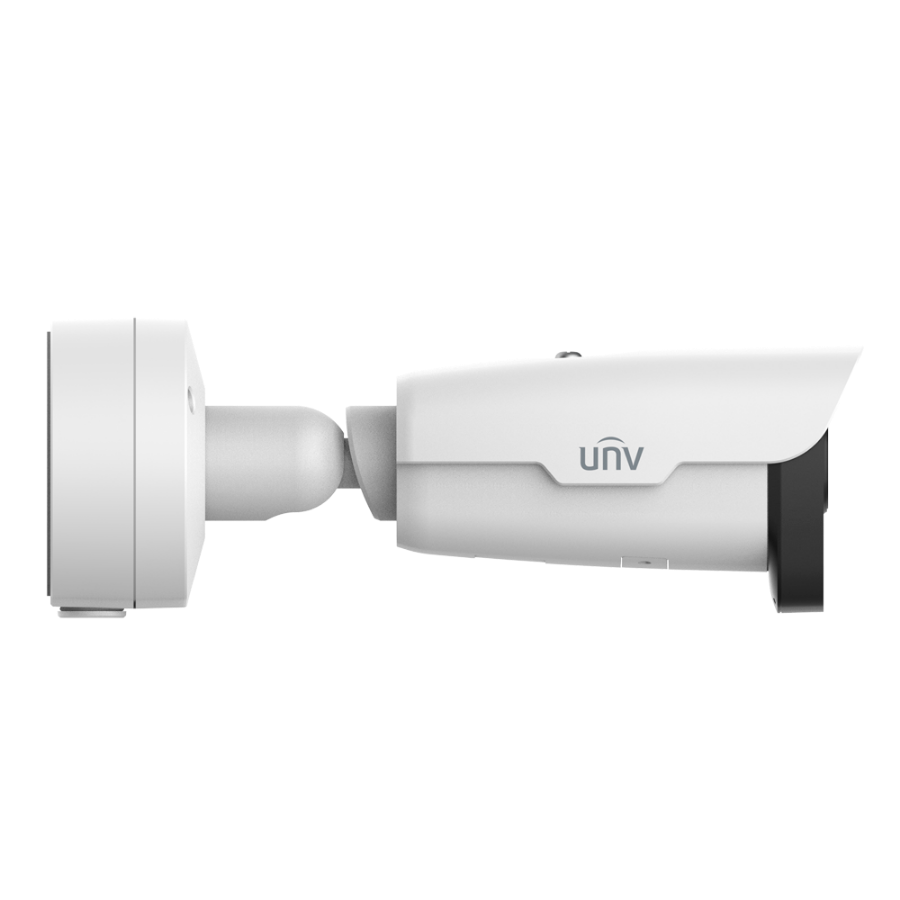

| Thermal sensor | 256x192 Vanadium Oxide |
| Optical sensor | 1/8” Progressive Scan CMOS 4 Megapixel |
| Main Stream rate | Thermal 1280 × 720 (1-30FPS) Optical 2688 x 1520 (1-30FPS) |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| Lens | Thermal: 3.2 mmOptic: 4 mm |
| FOV - Thermal | Horizontal: 57oVertical: 42o |
| FOV - Optic | Horizontal: 89.9oVertical: 49.1o |
| DRI - Thermal | Detect: 126 mIdentify: 32 mIdentify: 21 m |
| Range performance - Optic | Detect: 62.1 mSee: 24.8 mIdentify: 12.4 mIdentify: 6.2 m |
| Fire Detection | Supports detection of fire points in the environment and up to 10 fire points can be detected |
| Smoking detection | Detects smokers in the area and links alarms |
| SIP | Detection of motor vehicles, pedestrians, line crossing, intruder detection, area entry and area exit |
| Viewing angle | 57°×42° (Term) / 84° × 43.1° (Opt) |
| Thermal sensitivity | ?55mk @f/1.0 @25°C |
| Thermal measurement range | -20 ~150 o C / ± 8 o C |
| Spectral range | 12µm |
| Audio In/Out | 1/ 1 |
| Alarm In/Out | 2/2 Relay |
| Internal memory | Micro SD card up to 256GB |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Power | 12VDC, max.12W; PoE IEEE802.3af, |
| Temp. operation | -40o C ~ +70o C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 354 mm (Fo) x 104 (An) x 116 (Al) mm |
| Weight | 1,85 Kg |
