| Brand | Jade Bird |

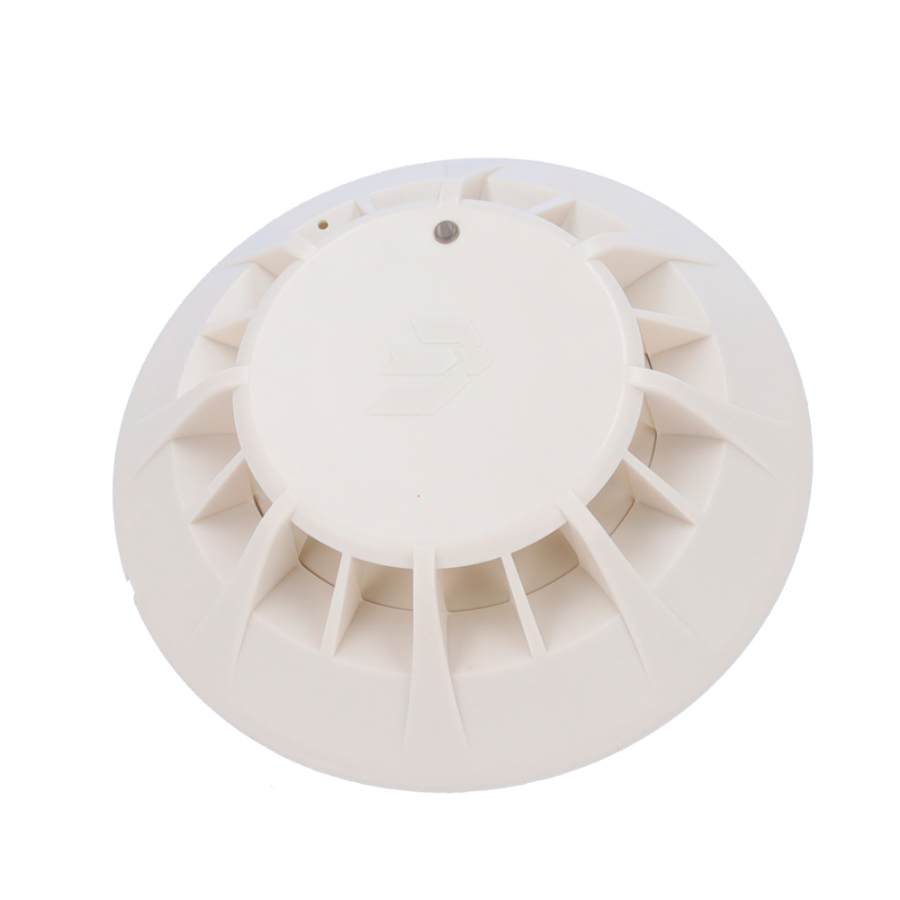

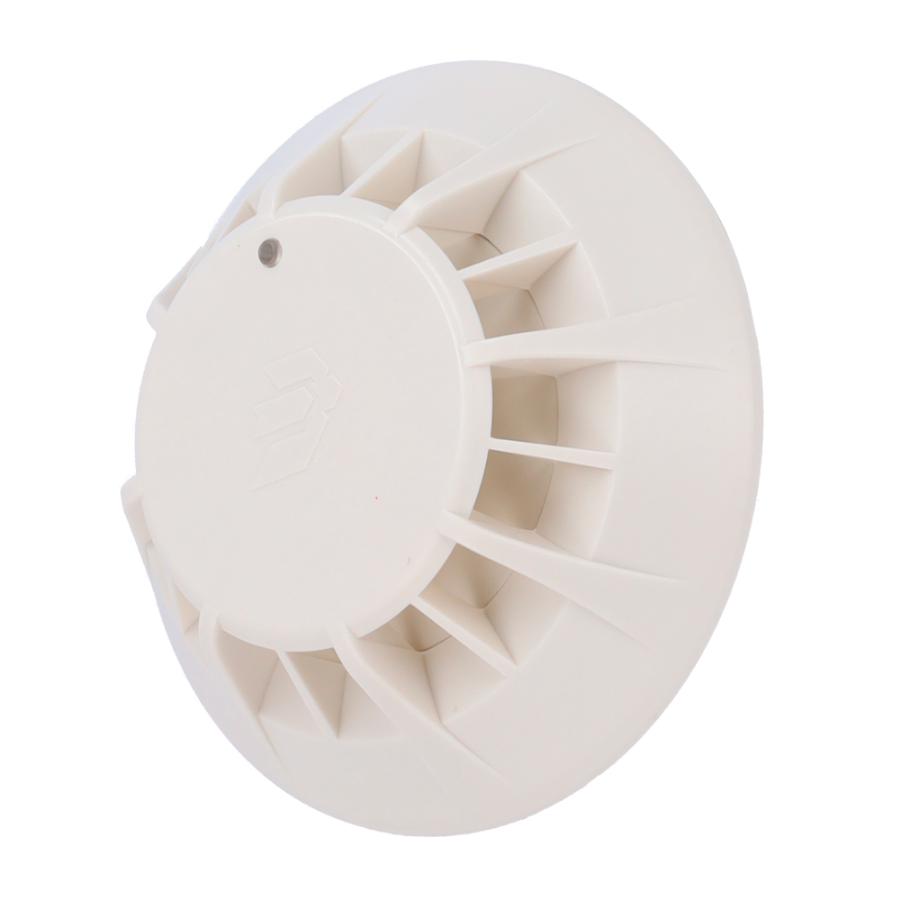

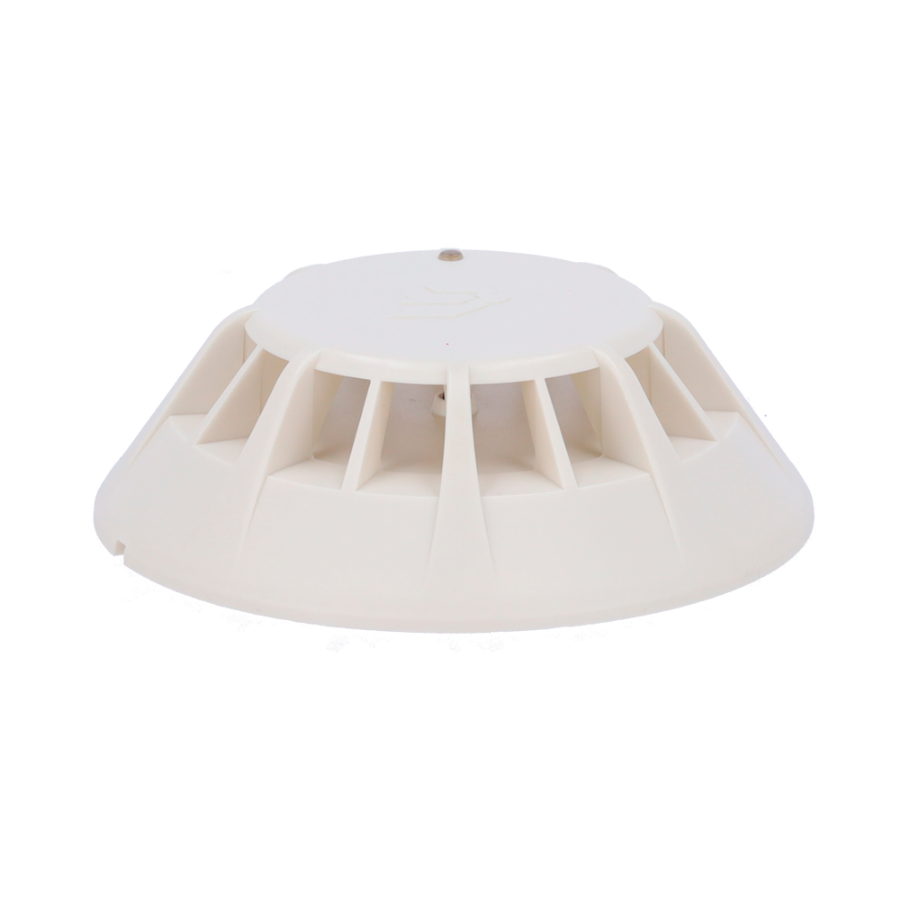

| Type | Thermal Detector |
| Category | Selectable A2, A2R and A2S |
| Operating voltage | 16-30 VDC |
| Connection | 2 wires |
| Wired | Twisted pair without mesh 0.5 - 2.5 mm2 |
| Consumption in idle mode | ?0.3mA @24 V |
| Consumption in alarm mode | ?1 mA @24 V (up to 8 mA of remote indicator) |
| Temp. of work | -10 to +60oC |
| Temp. storage | -20 to +60oC |
| Humidity | ? 95% HR (40 ±2oC) (no condensation) |
| Coverage | 20 to 30 m2 |
| Led indicator | Rest: FlickeringAlarm: Fixed ignition |
| Dimensions (OxH) | 100 mm × 41 mm |
| Weight | 0,1 Kg |
| Protection Grade | IP40 |
| Supported bases | JBE-2165 for installation with or without remote indicator |
| Remote indicator | LED with or without series resistor (R <4K?) |
| Certificado | EN 54-5:2017+A1:2018 |
