| Brand | HiLook |
| Image sensor | 1/2.4" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3200x1800) |
| Main Stream rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) [%VAR%] |
| Extra Stream rate | 20 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 113°, V: 62°, D: 134° |
| Range performance | 79 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Minimum illumination | Colour: 0.005 Lux @(F1.6, AGC ON)0 Lux with IR range 30 m |
| Supplementary lighting | Hybrid light:IR Range 30 mWhite light range 30 m |
| Day/Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal memory | Does not have |
| Audio | Integrated microphone |
| Audio type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bitrate | 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 500 mA / 6 W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67Vandal proof IK08 |
| Material | Metal and plastic |
| Temp. operation | -30o C ~ +60o C |
| Dimensions | O 121.5 mm x 97.6 (H) mm |

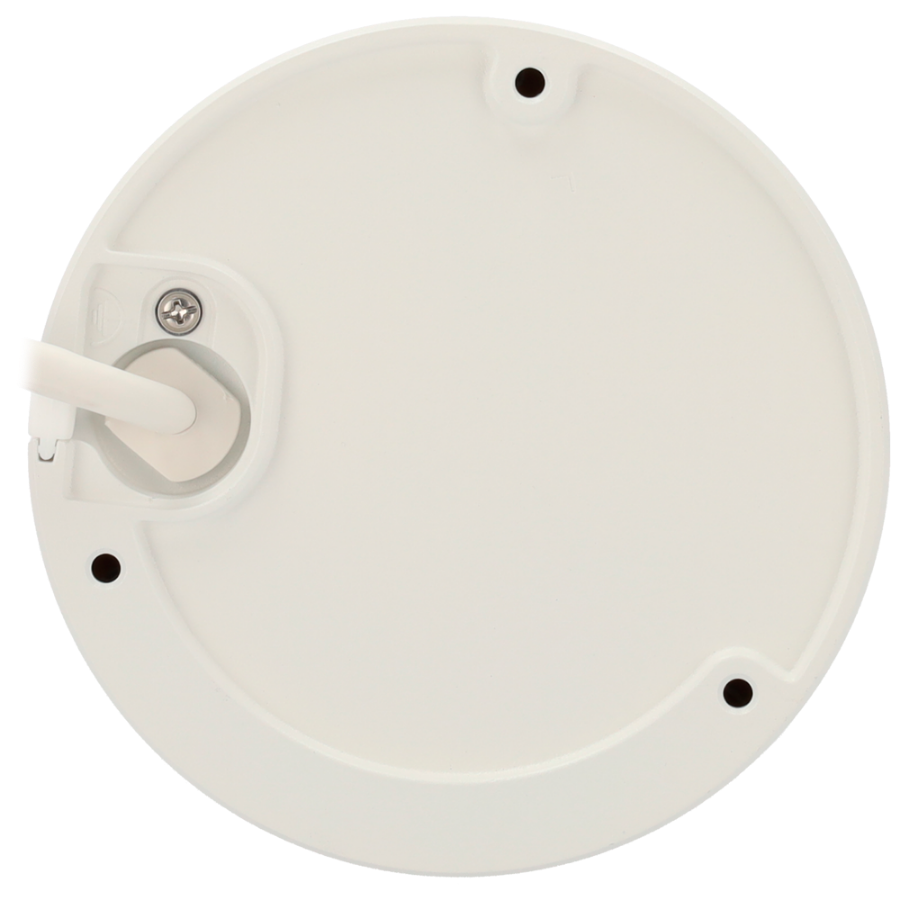

| Base dimensions | O base 121.5 mm / O entre tornillos 104.7 mm / 3 tornillos |
| Weight | 550 g |
