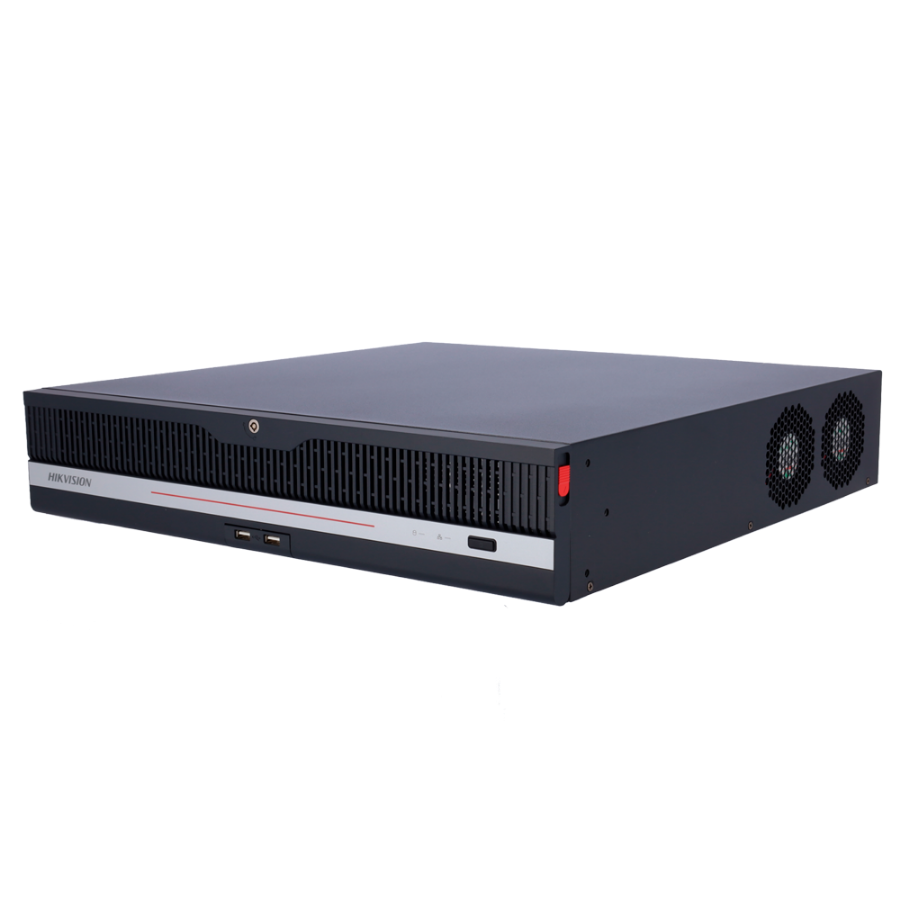

| Brand | Hikvision |
| Range | SOLUTIONS |
| Inputs for IP cameras | LAN port up to 64 channels |
| IP compatible cameras | HIKVISION (native protocol), ONVIF |
| Video outputs | 1xHDMI 8K, 1xHDMI 4K, 2xVGA (simultaneous HDMI 8K and VGA 1, simultaneous HDMI 4K and VGA 2) |
| Display resolution | HDMI 8K: 7680x4320, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768HDMI 4K: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768VGA 1: 1920x1080, 1280x10 |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Bidirectional audio | 1 RCA input / 2 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2 |
| Total bandwidth | 400 Mbps downstream / 400 Mbps upstream |
| Stream Type | Video / Video + Audio |
| Main stream recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capacity | 2ch@32MPx/ 2ch@24MPx/ 4ch@12MPx/ 8ch@8MPx/ 16ch@4MPx/ 32ch@1080p |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| POS | Yes |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detection Available in all channels. |
| Intelligent functions | The equipment has several operating modes: For NVR: AcuSense, Facial Recognition, Video Structure, Falling Objects from Buildings.With cameras with intelligent functions: AcuSense, Facial recognition |
| AcuSense | Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on:Line Crossing, Area Intrusion.For NVR: Available in up to 24 2 Mpx (12 channels per intellige |
| Facial Recognition | Face comparison, face capture, face search.Up to 32 face image libraries, up to 100.000 face images in the list library, up to 10.000 face images in the unknown library, up to 10.000.000 of face image |
| Video Structure | Characteristic analysis (analysis of clothing, hat, backpack, etc.)Up to 12CH of 2 Mpx (6 channels per intelligent operating mode) with a maximum resolution of 8 Mpx.Up to 32 face image libraries, up |
| Falling objects | Detection of falling objects from buildings.For NVR: Up to 16 CH (8 for each intelligent operating mode) with a maximum resolution of 8 Mpx.With cameras with object fall detection: Available in all ch |
| ANPR | By camera: Available on all channels with license plate recognition cameras.Characteristics of the license plate: Number, color, type.Vehicle characteristics: brand, color, type |
| Alarms | 16 Inputs / 9 Outputs |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote connections | 128 |
| Internal memory | 8 HDD SATA 3.5" of up to 14 TB each (not included) |
| RAID | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear side / 2 x RJ45 10/100/1000M (Ethernet) / 1 x RS-485 / 1 x RS-232 / 1 x eSATA |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power | AC 100~240 V, ? 50 W (without HDD) |
| Power supply output | DC 12 V, 1 A |
| Operating temperature | -10oC ~ 55oC (10%-90% Humidity) |
| Dimensions / weight | 88 (H) x 442 (W) x 460 (D) mm / 10 Kg (without HDD) |
