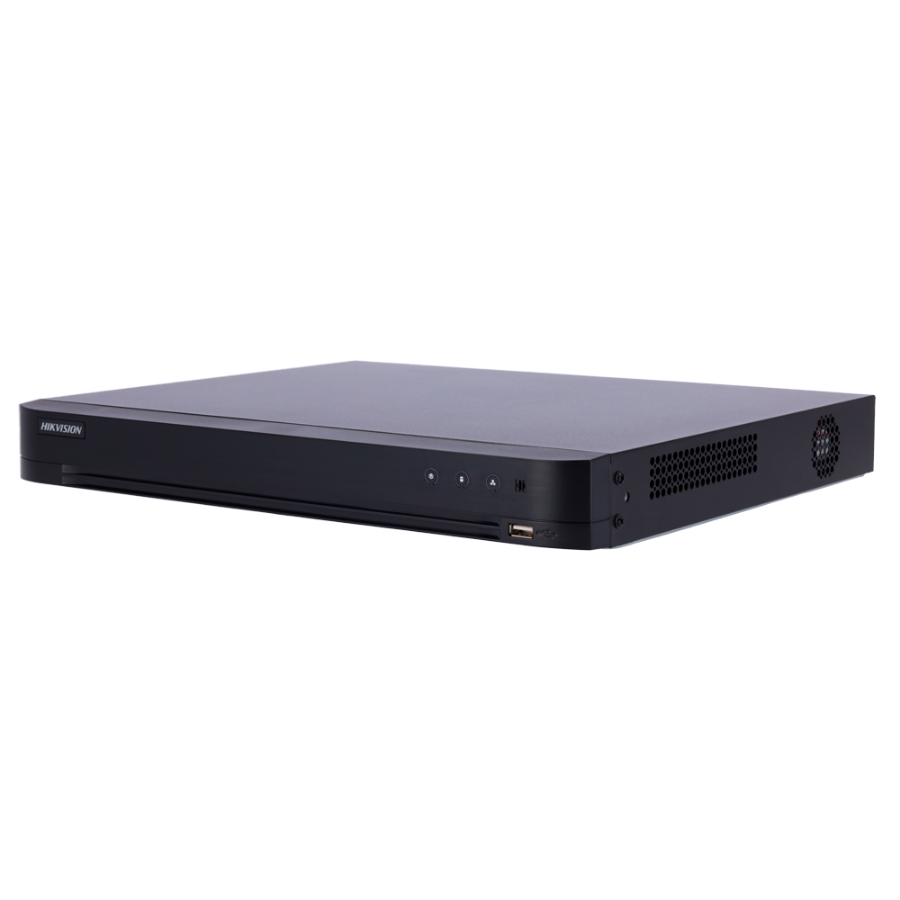

| Brand | Hikvision |
| Range | PRO |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 Channels BNC, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 16 Additional IP CH: Up to 32 IP channels (8 Mpx), replacing all BNC channels |
| Main Stream coding | 8Mpx@8 FPS; 3K@12 FPS, 5Mpx@12 FPS; 4Mpx @15 FPS; 8Mpx Lite@15 FPS; 3Mpx@18 FPS; 1080p /720p/WD1/4CIF/VGA/CIF@25 FPS(P) |
| Extra Stream coding | WD1 / 4CIF / CIF (25 FPS) |
| Total bandwidth | 256 Mbps |
| Video outputs | 1 HDMI 4K and 1 VGA, simultaneous; 1 BNC CVBS |
| Display resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720 / 60HzVGA: 1920x1080, 1280x1024, 1280x720 / 60HzCVBS: 704x576 (PAL) / 704x480 (NTSC) |
| Video compression | Analog: H.265+ / H.265 Pro / H.265 / H.264+ / H.264IP: H.265+ / H.265 / H.264+ / H.264 |
| Input resolution | HDTVI: 8Mpx (12 fps), 3K (20~25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps)HDCVI: 8Mpx (12 fps), 3K (25 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (2 |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input |
| Audio Compression | G.711u |
| Audio bit rate | 64 Kbps |
| Video Bit Rate | 32 Kbps at 10 Mbps |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Motion Detection | Motion detection 2.0 with classification of humans and vehicles applied in motion detectionFor NVR: Available in all channels.* Motion detection and AcuSense cannot be enabled at the same time on the |
| AcuSense | Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on:Line Crossing, Area Intrusion.For NVR: Available in up to 8 channels.* Motion detection and A |
| Facial Recognition | Storage in up to 16 libraries.Face comparison in up to 4 CH. |
| Facial Detection | Face detection; photo search;Up to 4 channels to capture image. |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 2 SATA HDD 3.5" of up to 12 TB each (not included) |
| Communication | 1 x USB 2.0 (front panel) / 2 x USB 3.0 (rear panel) / RJ45 (Ethernet) 10/100/1000 Mbps / 1 x RS-485 |
| Remote connections | 128 |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Power | DC 12 V, 5 A, ? 15 W (no HDD) |
| Operating temperature | -10° ~ +55° C |
| Dimensions / weight | 384 (W) x 317 (D) x 52 (H) mm / ? 2.1 Kg (w/o HDD) |
