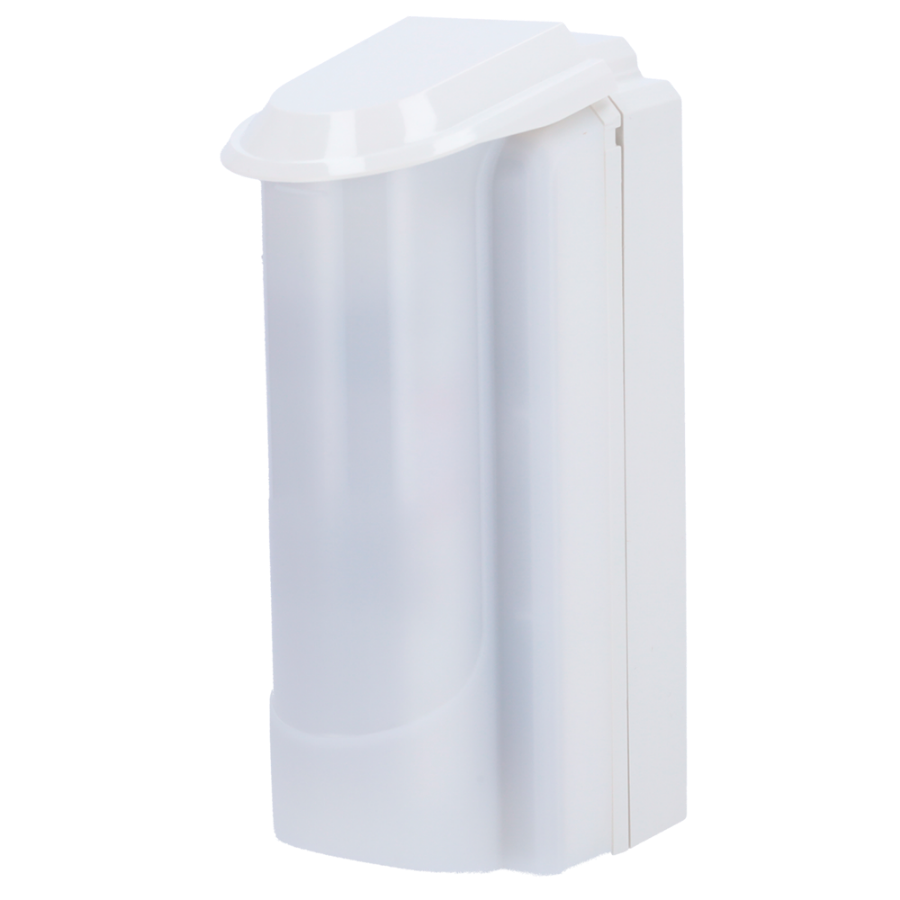

| Brand | Duevi |
| Model | Monolith K |
| Type of integration | Universal |
| Technology | Double volumetric PIR |
| PIR lens | Both lenses horizontally adaptable up to 55o |

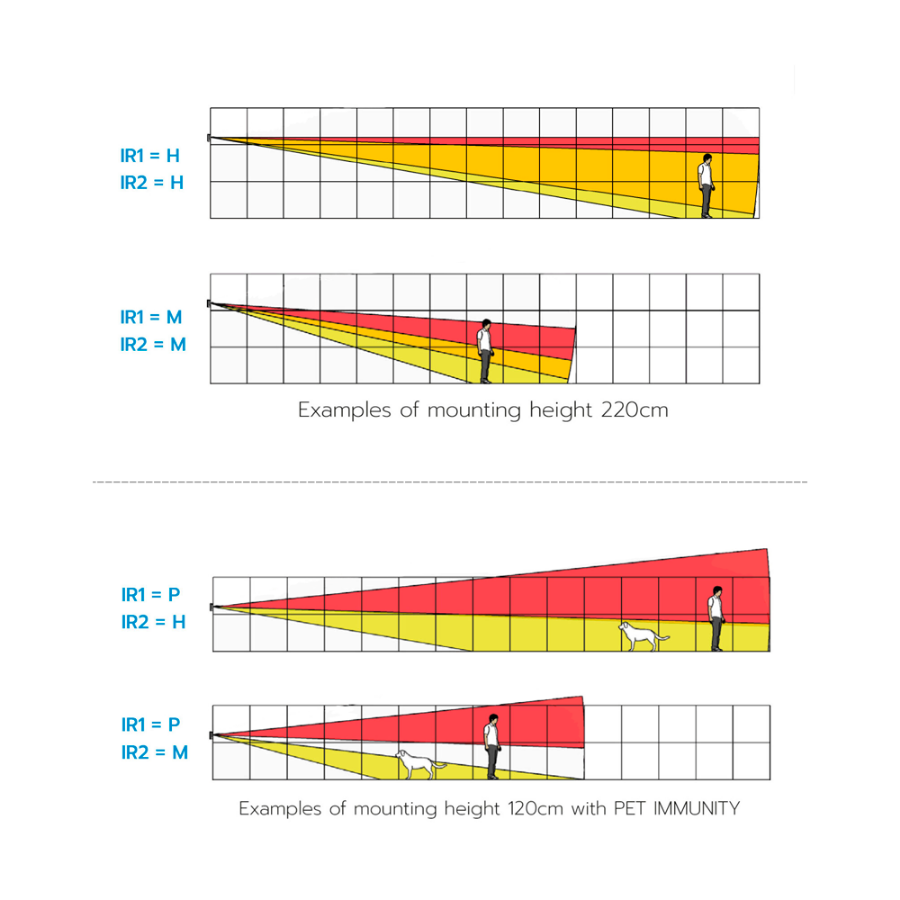

| Detection range | Configurable: 3 m to 15 m (in 6 levels) / 90o |
| Pet immunity | Available (installation height 1.2 ~ 1.3 m) |
| Installation height | From 1.2 m to 2.2 m |
| Masking | Available: from 0oC, always on (through App) or disabled |
| Sensitivity | Adjustable (3 levels) |
| Tamper-resistant opening | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LEDs indication | Alarm (blue) and Walk test (red): Upper IR / green: Lower IR / blue: alarm confirmation) |
| DIP Switch configuration | 1- Walk-test (On/Off)2- Alarm unification in one output (On/Off) |
| Configuration in detector (LEDs and buttons) | Sensitivity / Anti-masking / Anti-sabotage tamper / Mounting height / Pet immunity / Detection range (more info page). 9 manual in download section) |
| Additional configuration in App | Antimasking (from 0oC, always on or disabled) / Antimasking sensitivity / Sleep time (On/Off/Up to 60 s) |
| Configuration by App | DV-BTLINK module required and download View Sensor App (Android) |
| Wired outputs | Alarm and Fault (tamper and antimasking) |
| Power | 2 lithium batteries CR123A 3V (included) |
| Consumption | Minimal consumption (Rest: 8 uA / Maximum: 5 mA) |
| Temp. operation | -40 oC ~ +70 oC |
| Degree of protection | IP54, Antivandalic IK10 |
| Dimensions | 201 (H) x 79 (W) x 106 (D) mm (transmitter spacing) |
