| Nominal system voltage | 12V |
| Charging current | 8 A |
| Discharge current | 8 A |
| Maximum input voltage | 18 V |
| Maximum open circuit voltage | 46 V (25 oC) |
| RS485 Communication | Optional bridge required for cloud platform use |
| Material | Lithium LFP |
| Operating temperature | -20oC + 50oC |
| Relative Humidity | ?95% |
| Maximum power | 80 W |
| Voltage Vmp | 17.8 V |
| Open circuit voltage | 21.8 V |
| Peak current | 5.06 A |
| Short circuit current | 7.20 A |
| Short-circuit voltage | 22.5 V |
| Maximum system voltage | 1000 V DC (IEC)/600 V DC (UL) |
| Protection diode | 2 per step / 4 per step |
| Transfer efficiency | 17.8% |
| Tolerance | -3/+3 % |
| Number of cells | 36 |
| Dimensions | 780 x 680 x 30 mm |
| Weight | 5.9 kg |
| Degree of protection | IP 67 |
| Connector type | MC4 |
| Temperature properties | Nominal operating temperature of the battery (NOCT) 45±2 oCTemperature coefficients of Pm -0,47%/oCTemperature Voc -0,34 %/°CTemperature Isc 0,045 %/oC |
| Capacity | 30 AH / 360 Wh |
| Voltage | 11.1 V |
| Power | - W |
| Internal resistance | ?80m? |
| Load stop | 12.6V (4.2V/celda) |
| Discharge stop | 8.4V (2.8V/celda) |
| Maximum charge current | 10 A |
| Standard download mode | 8 A |
| Maximum discharge current | 10 A |
| Working temperature | -20 oC~55 oC |
| Storage relative humidity | 45%~85% |
| Material | Cold rolled steel |
| Weight | 11 kg |
Self-powered systems are the best solution for CCTV in off-grid environments, such as construction site surveillance, photovoltaic parks or any type of installation.

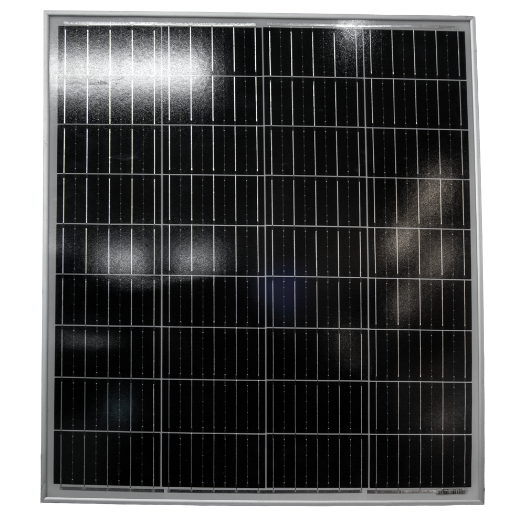

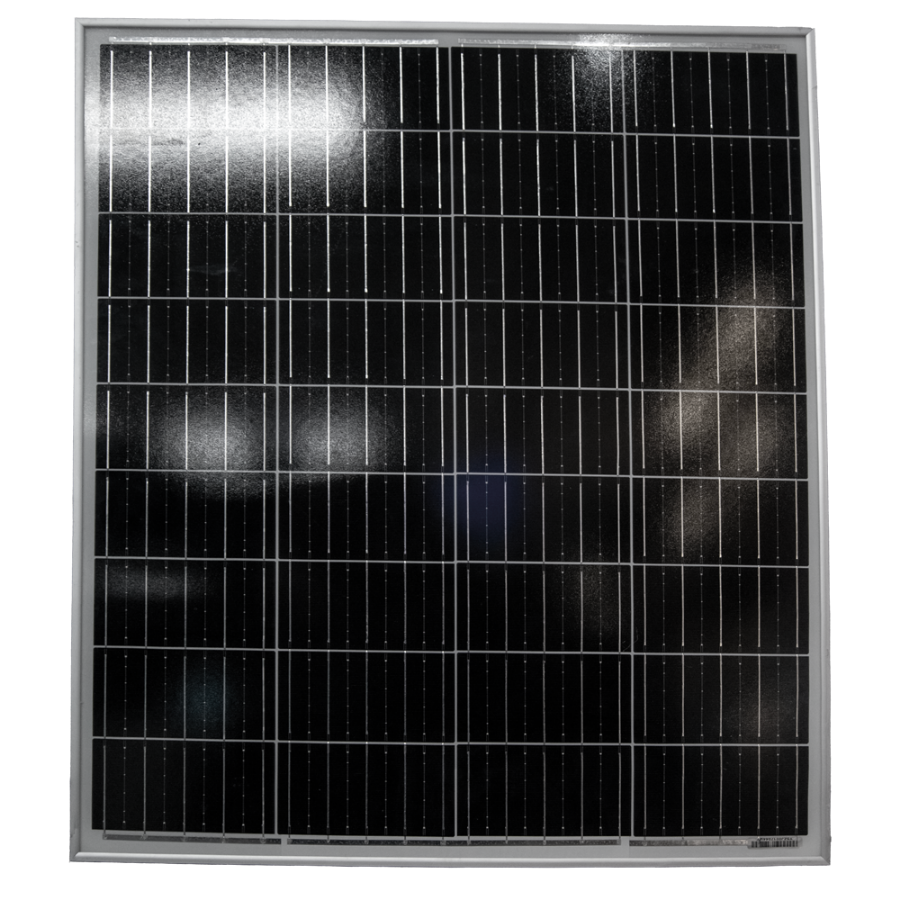

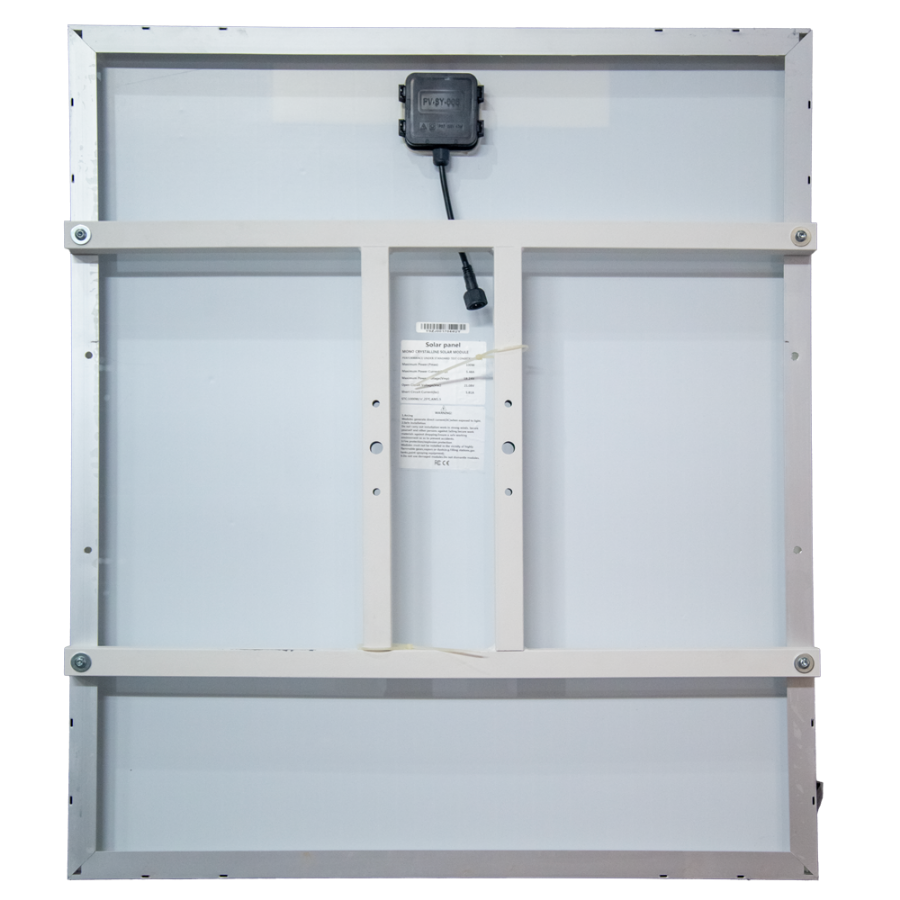

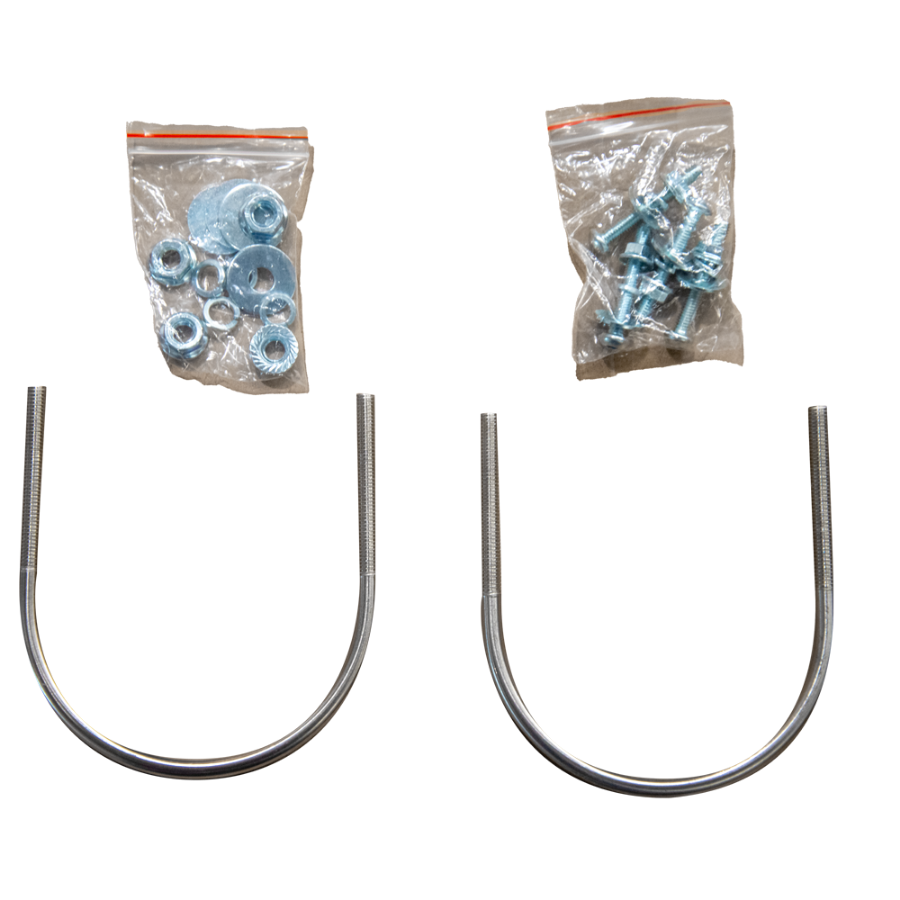

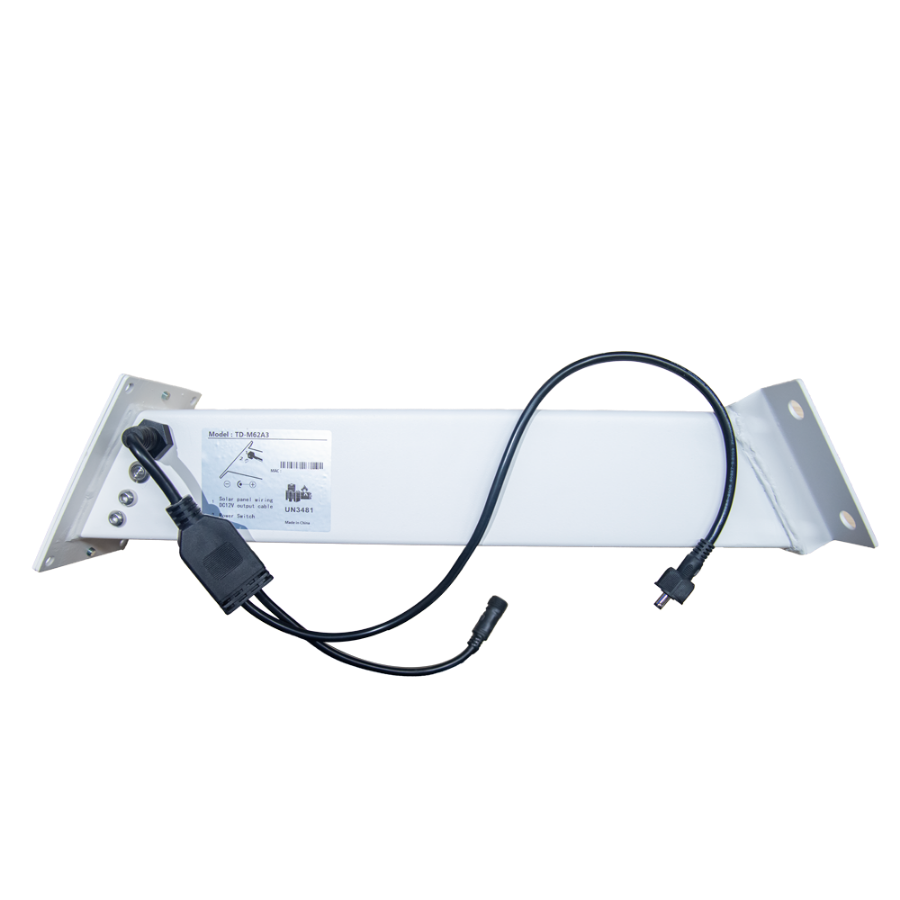

These all-in-one kits consist of solar panel, lithium battery with integrated MPPT regulator (to optimize the power of the solar panel) and bracket for installation on a mast. This makes installation simple and construction time short. It is also possible to communicate with the optional bridge via RS485 protocol to obtain real-time remote monitoring via the manufacturer's CLOUD.
