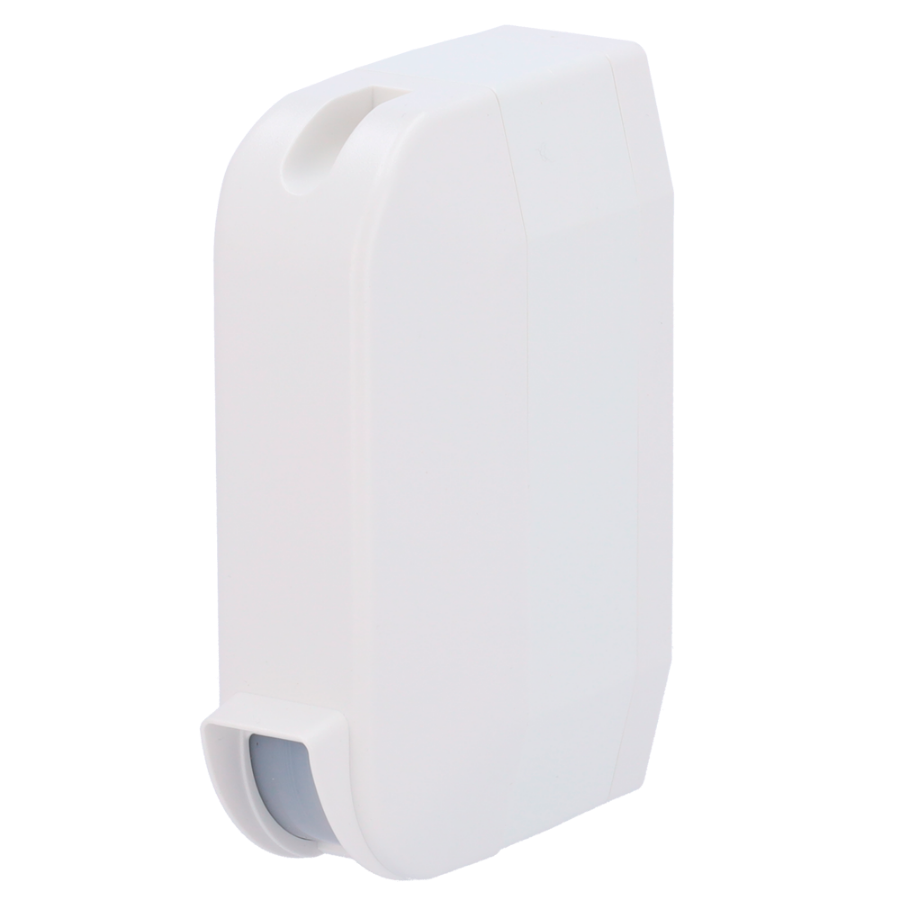

| Brand | Duevi |
| Model | Kapture K |
| Technology | Double technology: microwave (24 GHz) and curtain type PIR |

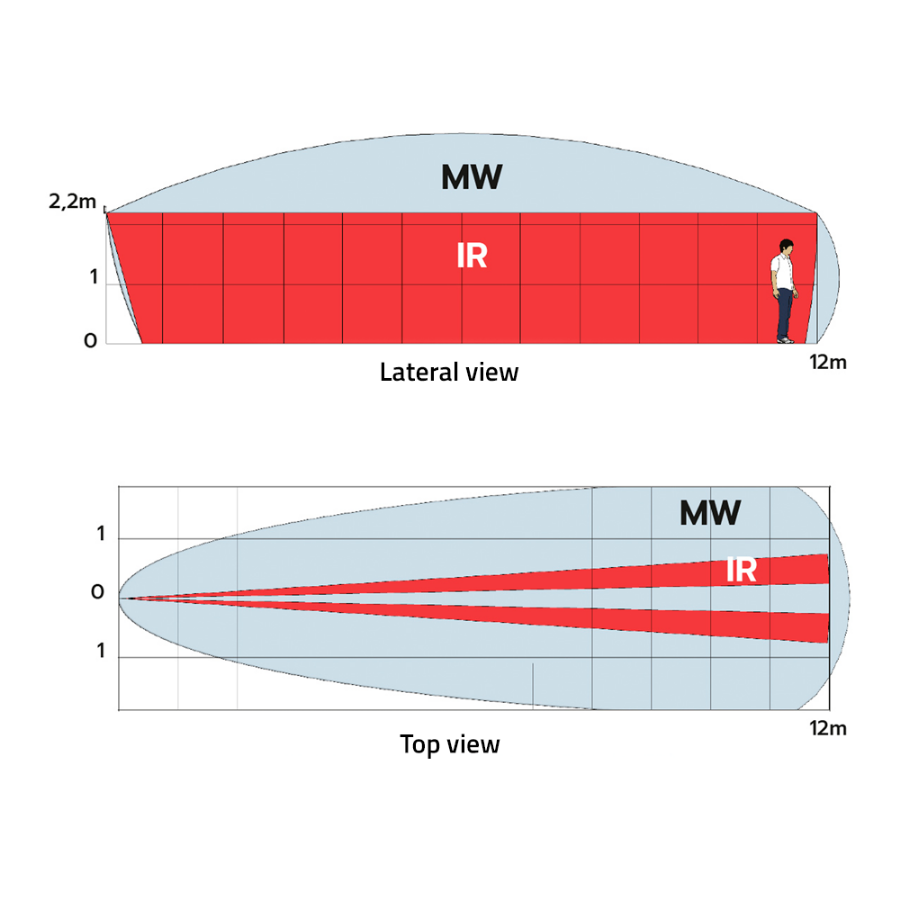

| Detection range | Configurable: 3 m to 12 m (depending on installation) / PIR 7.5o / Microwave 30o |
| Frequency | 868 MHz Jeweller (built-in Ajax transmitter) |
| Pet immunity | Not available |
| Installation height | Recommended 2.2 m (from 2 to 4 meters) |
| Masking | Available |
| Sensitivity | Adjustable (potentiometer from 30% to 100% or through App) |
| Tamper-resistant opening | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LEDs indication | Alarm (blue). IR detection (red) and Walk test (red): IR / blue: alarm confirmation) |
| DIP Switch configuration | Walk-test (On/Off), Anti-masking (On/Off), Programming by App (On/Off), Unification of alarms on one output (On/Off) |
| Additional configuration in App | Anti-shadow function to avoid false alarms (4 levels) / Independent adjustment of IR and microwave sensitivity / Sleep time (On/Off/Up to 60 s) |
| Configuration by App | DV-BTLINK module required and download View Sensor App (Android) |
| Wired outputs | Alarm, tamper and anti-masking |
| Power | 2 batteries CR123A 3.0 V (low battery warning managed by Ajax) |
| Consumption | Minimal consumption (Rest: 13 uA / Maximum: 4 mA) |
| Temp. operation | -40 oC ~ +70 oC |
| Degree of protection | IP54 |
| Bracket | Includes wall bracket and L-bracket |
| Dimensions | 128 (H) x 41 (W) x 48 (D) mm |
