| Image sensor | 1/4” OmniVision® CMOS colour |
| Resolution | 480 TVL |
| Video output | 1 Vp-p 75 ? / RCA |
| Audio output | 20 mVp-p 10 K? / RCA |
| Minimum illumination | 1.0 Lux |
| S/N ratio | > 48 dB |
| Lens | 3.7 mm (58o) Pinhole |
| Power | DC 12 V / 200 mA |
| Temp. operation | -10o C ~ +50o C |
| Dimensions | 25 (H) x 20 (W) x 15 (D) mm |
| Weight | 25 g |

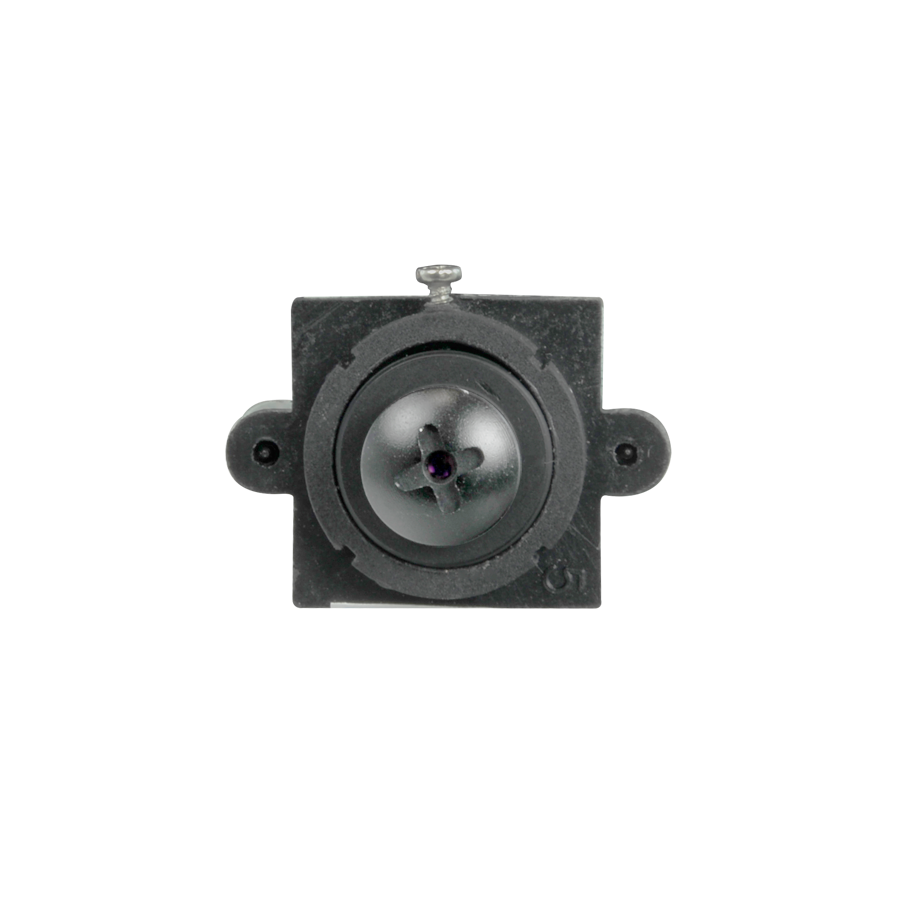

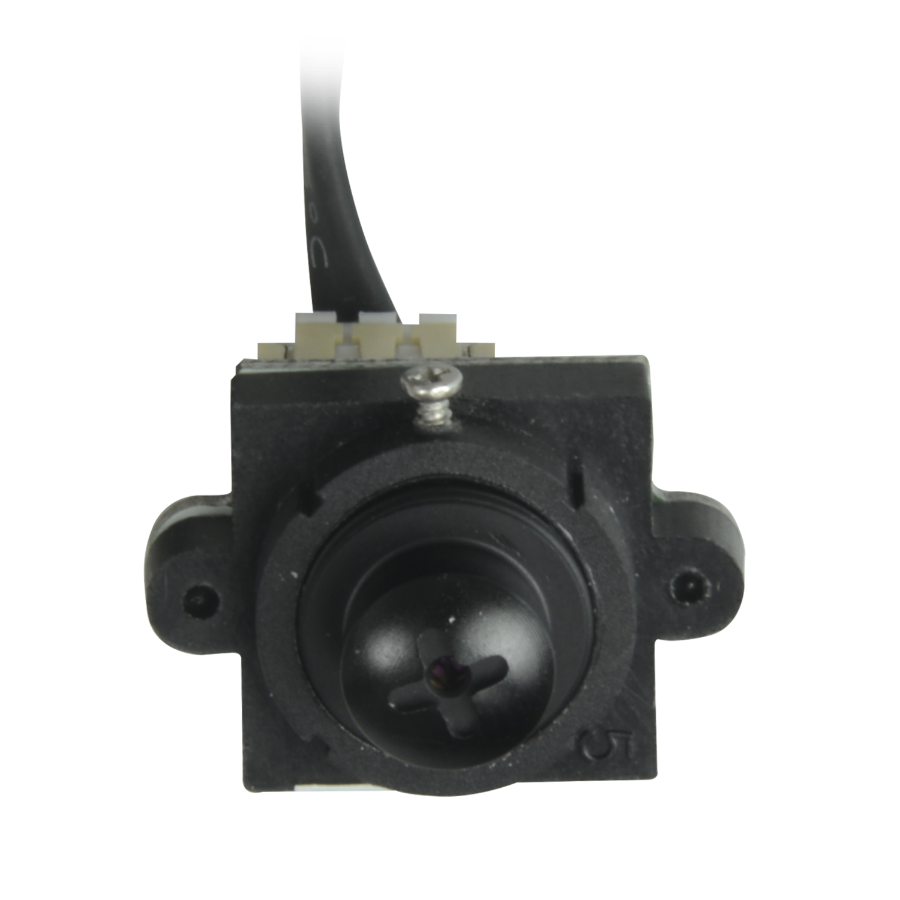

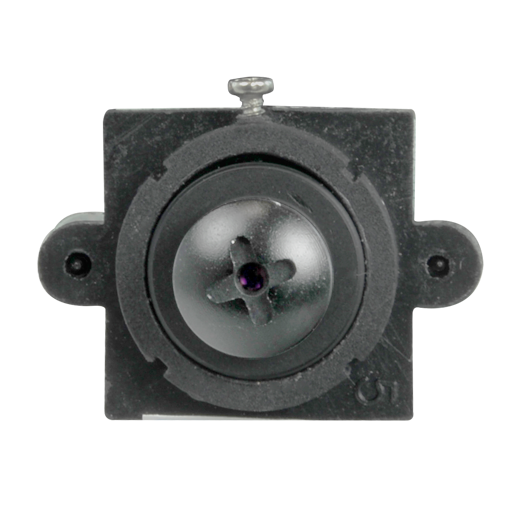

Mini camera camouflaged as a screw.

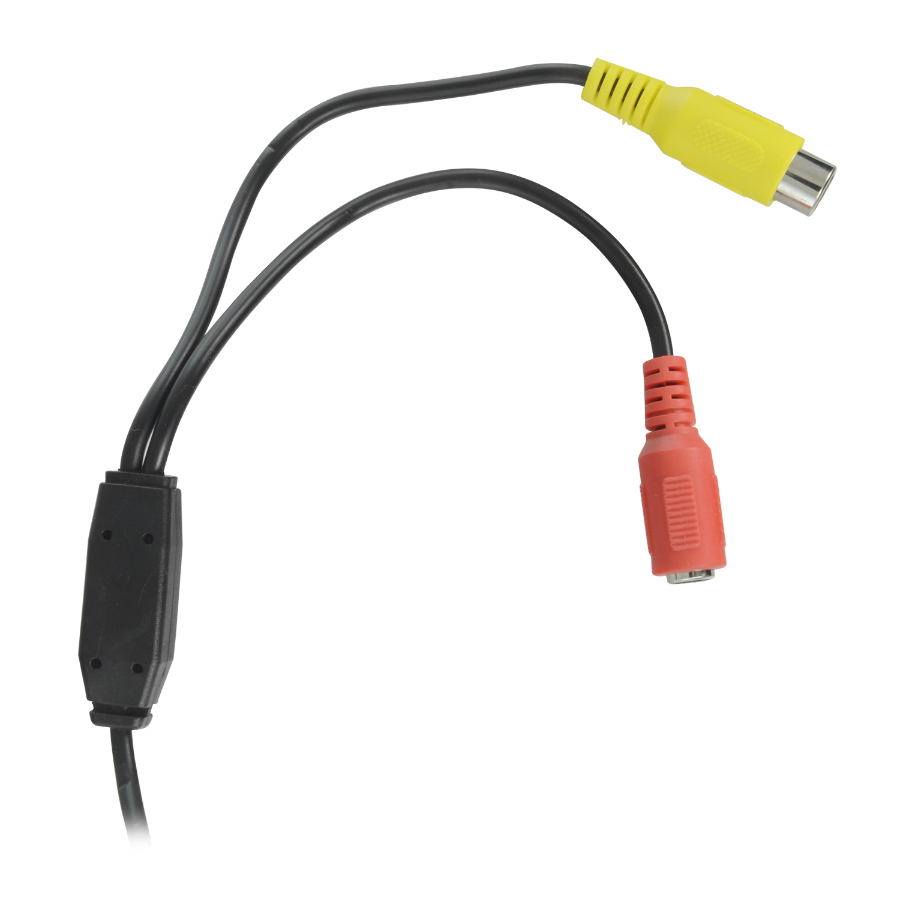

Consisting of a 1/4” OmniVision® CMOS sensor with a resolution of 480 TVL. Fixed lens of 3.7 mm pinhole with a diagonal range of vision of 58o. Minimum illumination of 1.0 Lux. RCA Video connector.
It can be hidden in multiple elements, such as wooden plates, doors, mailboxes, furniture, etc, leaving visible only the head of the screw.
