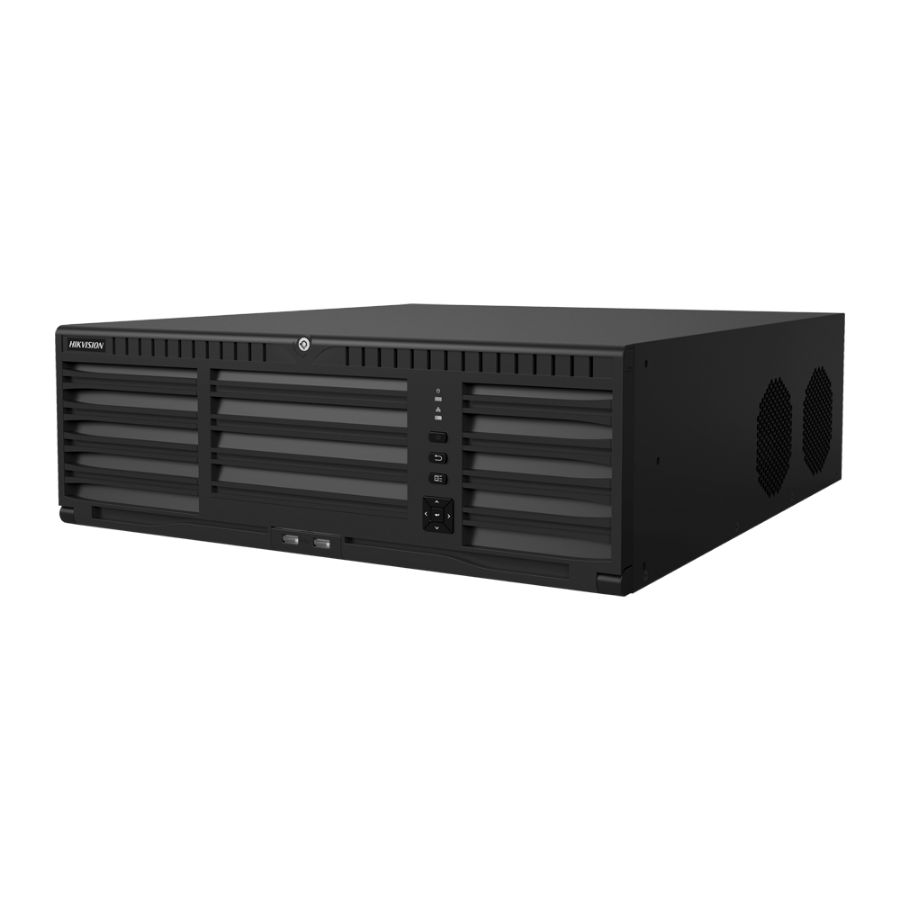

| Brand | Hikvision |
| Range | PRO |
| Inputs for IP cameras | LAN port up to 128 channels |
| IP compatible cameras | HIKVISION (native protocol), ONVIF |
| Bidirectional audio | 1 RCA input / 1 RCA output |
| Video outputs | 2xHDMI 4K, 1xVGA Full HD(The two HDMI outputs are independent) |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | HDMI 4K: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768VGA: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 576 Mbps downstream / 576 Mbps upstream(128 Mbps or 64 Mbps in RAID mode) |
| Stream Type | Video / Video + Audio |
| Main stream recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capacity | 1CH@32MPx, 5CH@8Mpx, 10CH@4MP, 20CH@1080p, 40CH@720p* When "Ultra HD resolution" mode is enabled the NVR supports up to 4 channels at 32 MPx / 24 MPx |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Motion Detection | Yes |
| Alarms | 16 inputs / 8 relay |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Internal memory | 16 HDD SATA 3.5" of up to 10 TB each (not included)Supports hot plugging |
| RAID | RAID0, RAID1, RAID5, RAID6 and RAID10 |
| Communication | 2 x USB 2.0 front, 2 x USB 3.0 rear / 4 x RJ45 10/100/1000M (Ethernet) / 1 x RS-485 / 1 x RS-232 / 1 x eSATA / Front Keyboard |
| Power | AC 100~240 V, ? 140 W (without HDD) |
| Operating temperature | 0oC ~ 50oC (10%~90% Humidity) |
| Dimensions / weight | 146 (H) x 442 (W) x 494 (D) mm / 16 Kg (without HDD) |
