| Number of channels | 1 channel |
| Power | Not required (Passive) |
| Video Input/Output | BNC (male) |
| Transmission distance | HDTVI 200/250/250/150/150 m (720p/1080p/3Mp/5Mp/8Mp), HDCVI 300/250/200/150 m (720p/1080p/4Mp/8Mp) AHD 200/300/200/150 m (720p/1080p/4Mp/5Mp), CVBS 500 m |
| Twisted pair connector | Two pin connector |
| Bandwidth | 75 MHz |
| Cable category | UTP category 5E/6 |

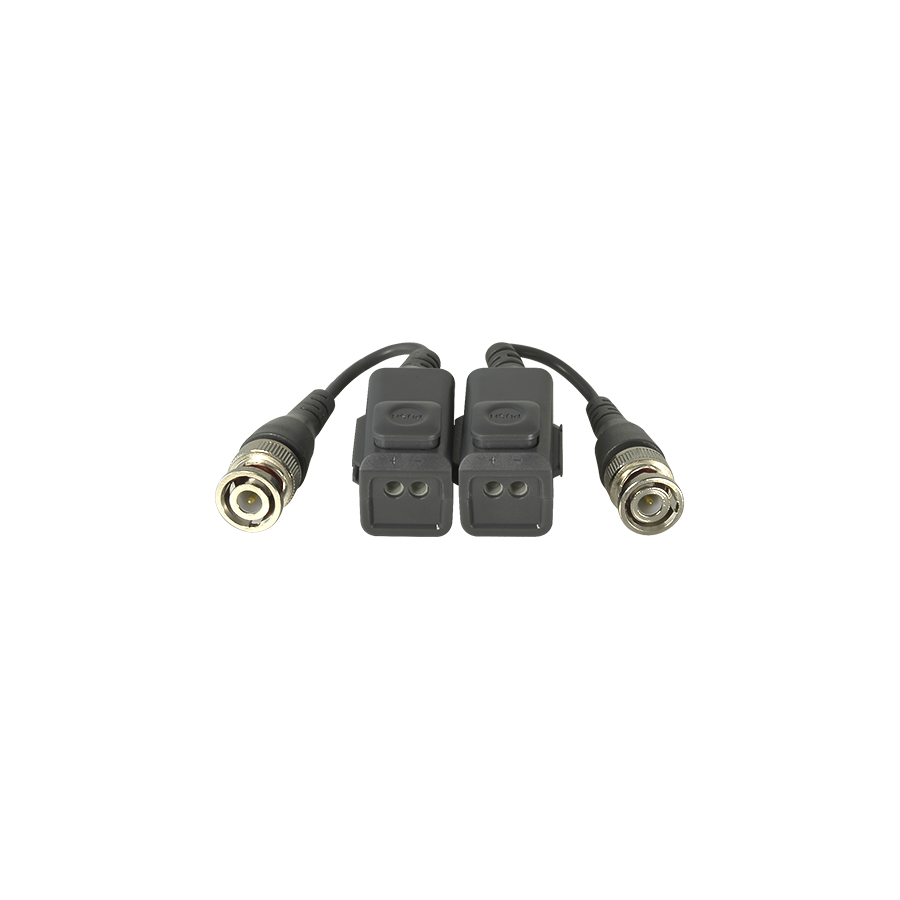

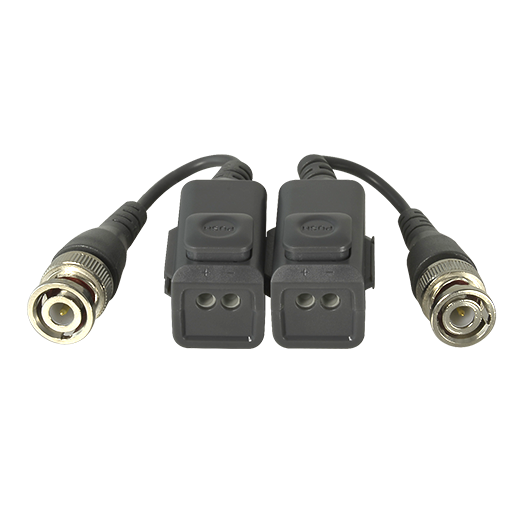

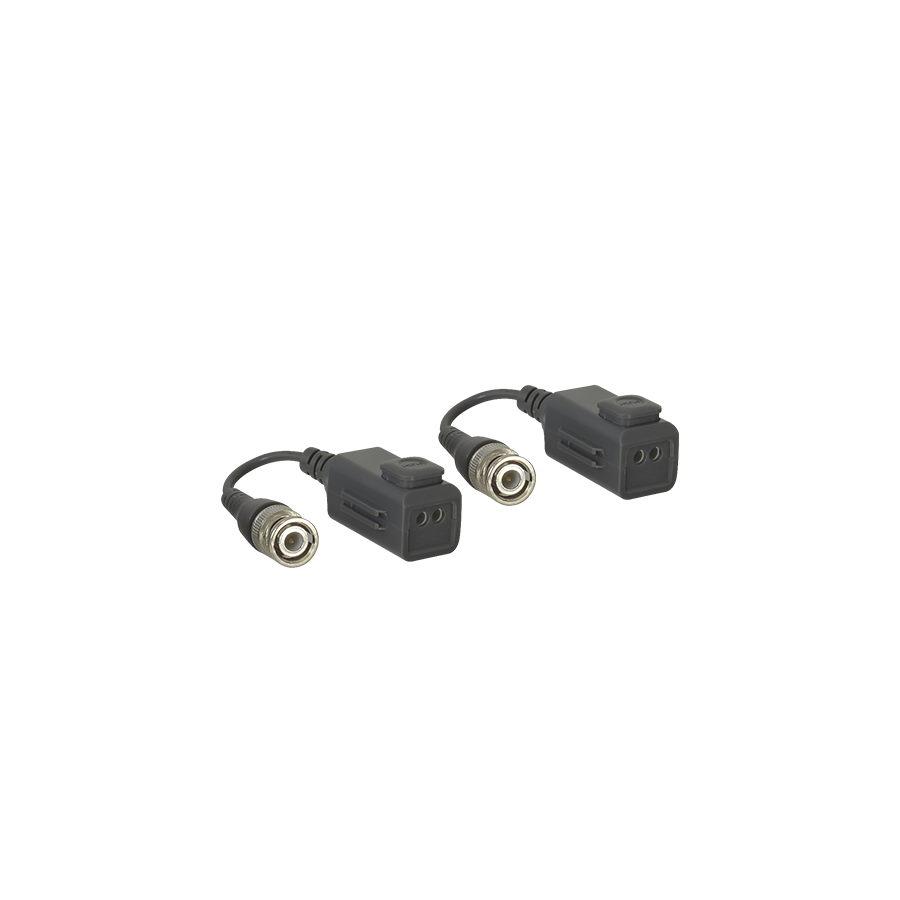

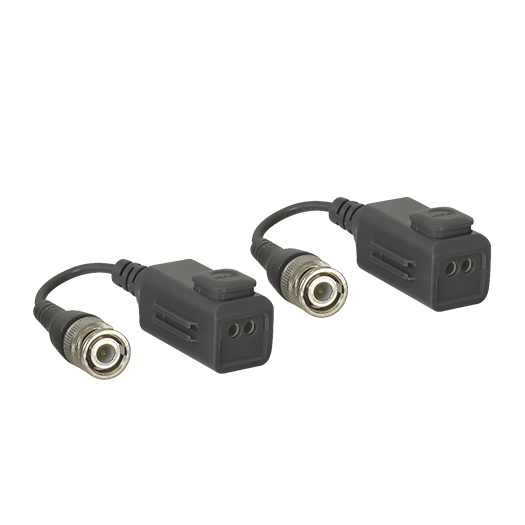

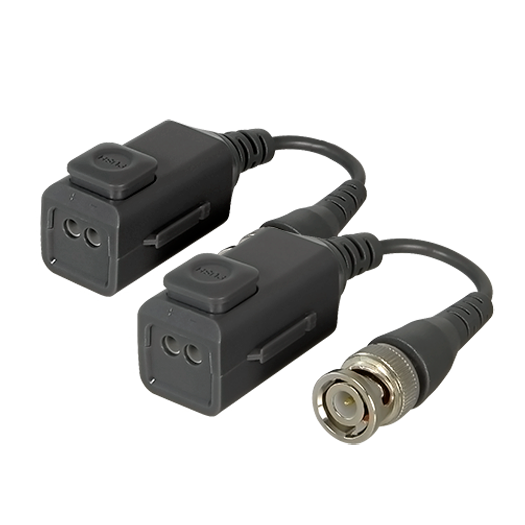

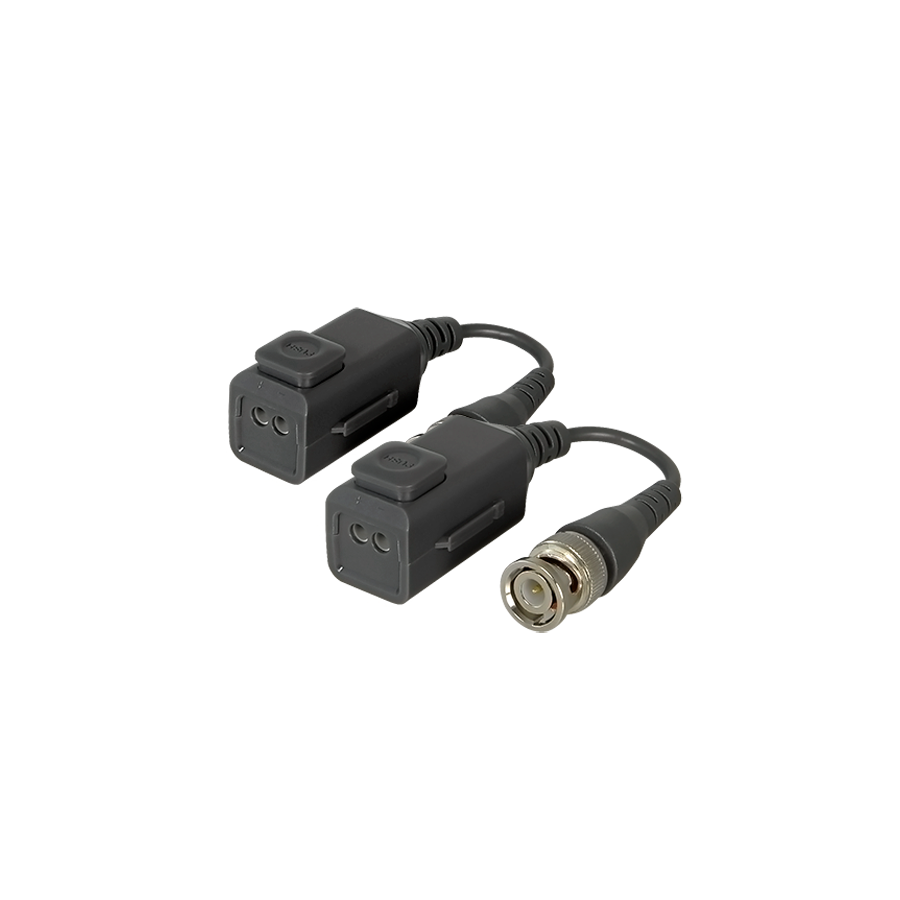

Passive twisted pair video transceiver from Safire, 2 units for transmission and reception, specific for high definition analog (HD).
Optimized for the transmission of the video signal from 1 HDTVI, HDCVI, AHD or CVBS camera via twisted pair. It has male BNC connector and cable insertion terminal with Splicing Button, two-pin connector.
The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used:
