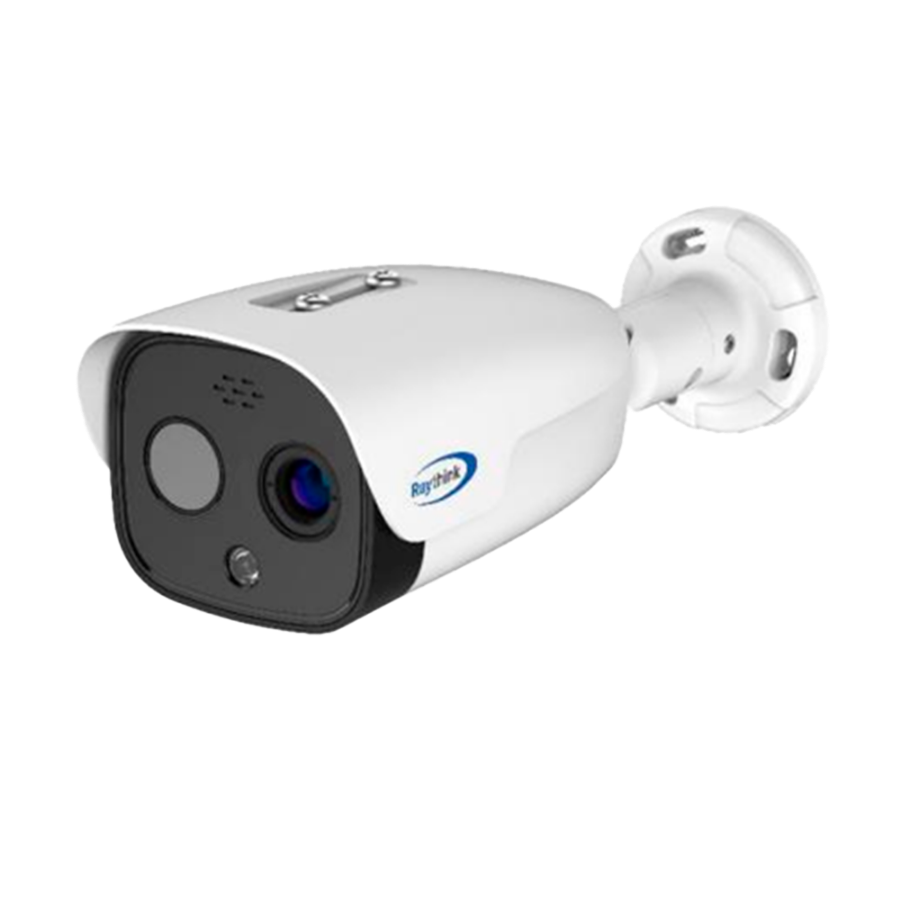

| Brand | Raythink |
| Range | FC4 |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 640 x 512 |
| Pixel Pitch | 12µm |
| Thermal lens | 13mm |
| Thermal sensitivity | ?40mK |
| Thermal measurement range | -20~550oC / ±2oC or ±2% |
| Spectral range | LWIR 8~14µm |
| Thermal viewing angle | 33° (H) x 26° (V) |
| Visible sensor | 1/2.8" Progressive Scan CMOS |
| Visible sensor resolution | 2560 x 1920 (5Mpx) |
| Visible lens | 6mm |
| Visible viewing angle | 46° (H) x 35° (V) |
| Infrared illuminator | 40m. maximum |
| Bi-spectrum vision parameters | Fusion / PiP |
| Main Stream rate | Visible: 25fps (2560×1920, 2560×1440,1920×1080,1280×720)Thermal: 25fps(1280×1024, 1024×768) |
| Sub Stream Rate | Visible: 25fps (704×576, 352×288)Thermal: 25fps (640x512, 352x288) |
| Compression | H.265 / H.264 |
| DRI | Human: 542m (D), 135m (R), 68m (I)Vehicle: 1661m (D), 415m (R), 208m (I) |
| Smart Analysis Ranges | Human: 102mVehicle: 311mTemperature Measurement (object 2x2m)): 361mTemperature Measurement (object 1x1m)): 181mFire detection (object 2x2m): 1444mFire detection (object 1x1m): 722m |
| VCA | Line crossover, intrusion, temperature measurement and fire detection |
| Temperature rules | Full window, point, line and region, multiple rules simultaneously |
| Alarms | 2 inputs / 2 relay |
| Audio | 1 Input / 1 Output |
| Audio compression formats | G.711a/G.711u/AAC/PCM |
| Internal memory | MicroSD card slot up to 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Communication | 1 x RS-485 protocol Pelco |
| Remote access | Web Browser, PC VMS Software |
| Interoperability | ONVIF, API, SDK |
| Power | DC 12V, 8W max.PoE IEEE802.3af |
| Temp. operation | -40oC~+70oC, <95% RH |
| Grado de protección | Impermeable IP66 |
| Dimensiones | 319.5mm ×121.5mm × 103.6mm |
| Peso | 1.800g |
